Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Model |
200155-23-CN |
|
Mounting Stud Option (23) |
3/8-24 to M16x2.0 1-3/8 inch hex plate stud |
|
Approvals (CN) |
China-specific regulatory approvals |
|
Sensitivity |
10.2 mV/(m/s²) or 100 mV/g (at 80 Hz reference frequency) |
|
Measurement Range |
±196 m/s² (±20 g peak) |
|
Excitation Voltage |
4.7–5.5 Vdc |
|
Operating Temperature |
-40 °C to +105 °C (-40 °F to +221 °F) |

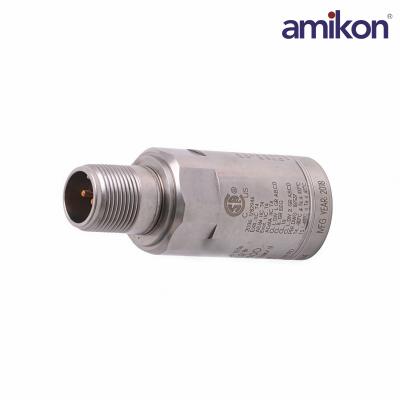

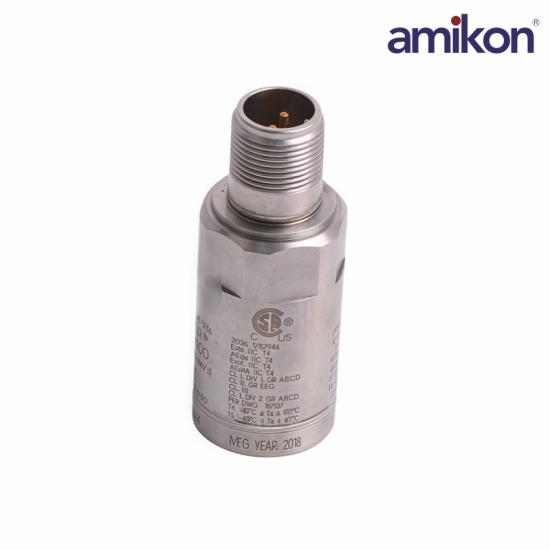

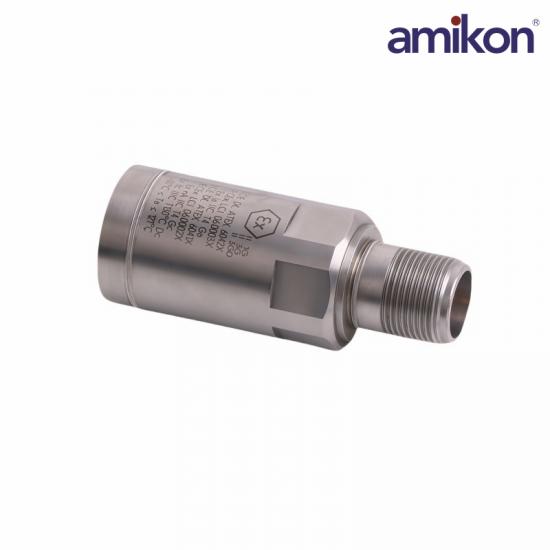

The 20015x Accelerometers feature a hermetically sealed, stainless steel case, providing an extremely rugged design that is well-suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows for easy installation and removal of the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when subjected to vibration. The accelerometers electronically convert this charge into a differential voltage signal that is proportional to the acceleration parallel to the sensitive axis of the transducer.
Frequently Asked Questions
Q1: What is the Bently Nevada 200155-23-CN Accelerometer?
A1: It is an industrial vibration accelerometer designed for machinery condition monitoring, used to measure vibration in rotating equipment for protection and diagnostics.
Q2: What does the 200155-23-CN mounting stud option “23” indicate?
A2: The “23” option specifies a 3/8-24 to M16×2.0 mounting stud with a 1-3/8 inch hex plate stud for secure industrial installation.
Q3: What does the “CN” approval option mean?
A3: The “CN” designation indicates compliance with China-specific regulatory approvals for use in the Chinese market.
Q4: What is the 200155-23-CN excitation voltage range?
A4: The 200155-23-CN accelerometer operates with an excitation voltage range of 4.7 to 5.5 V DC.
Q5: What is the 200155-23-CN operating temperature range?
A5: The 200155-23-CN operating temperature range is -40°C to +105°C (-40°F to +221°F).
Product Applications
Heavy Industry and Basic Materials: Cement, steel, metallurgy, and glass industries.
Energy and Chemicals: Petroleum, chemical, and power industries.
Fine Manufacturing and Pharmaceuticals: Pharmaceutical industry.
Service: 24/7,Professional team always here to support you.
Warranty:12 month
Delivery time: Shipped in 3 days after payment.
Payment Term: T/T
Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
Amikon sells new and surplus products and develops channels to purchase such products.
This site is not approved or endorsed by any of the listed manufacturers or trademarks.
Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.
All product names, trademarks, brands and logos used on this site are the property of their respective owners.
The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
