Bently Nevada 21504-000-008-10-02 7200 8 mm Proximity Probe

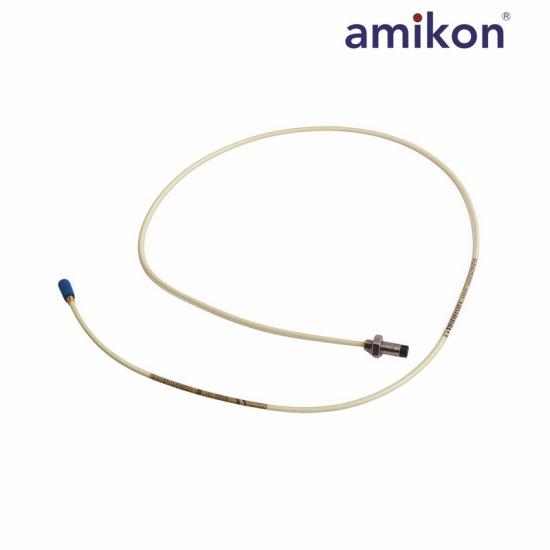

Bently Nevada 21504-000-008-10-02 proximity probe

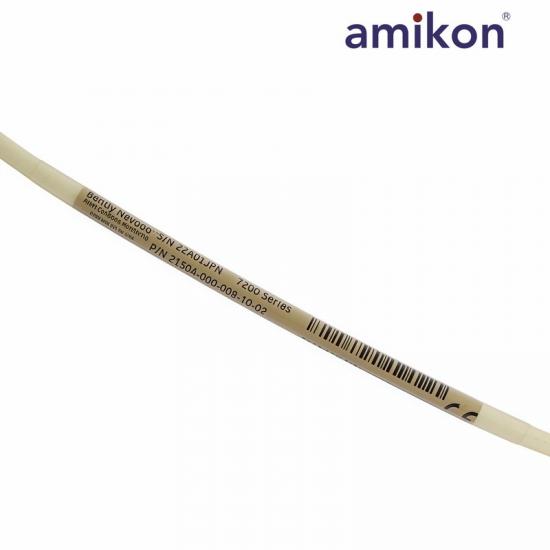

Bently Nevada 21504-000-008-10-02 proximity probe

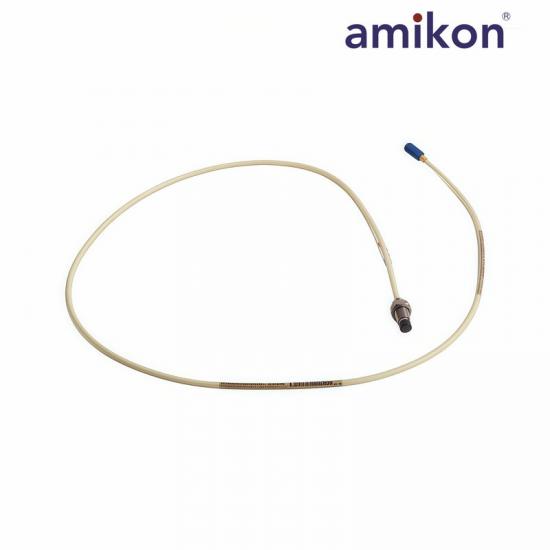

Bently Nevada 21504-000-008-10-02 proximity probe

Bently Nevada 21504-000-008-10-02 7200 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 7200 8 MM PROXIMITY SYSTEM

21504-000-008-10-02

7200 8 mm Standard-Mount Proximity Probe

PROBE TIP8 mm PPS
MOUNTING THREAD3/8-24 UNF
UNTHREADED LENGTH0.0 in
CASE LENGTH0.8 in (20.3 mm)
INTEGRAL CABLE1.0 m
TERMINATIONMiniature coaxial plug

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    21504-000-008-10-02

  • Order(MOQ):

    1

  • Payment:

    T/T
Inquire Now

BENTLY NEVADA · 7200 SERIES

21504-000-008-10-02

7200 8 mm Standard-Mount Proximity Probe

The 21504-000-008-10-02 is a legacy Bently Nevada 7200 8 mm proximity probe configuration. Its ordering code specifies a 3/8-24 UNF standard-mount case with no unthreaded extension, a 0.8 in overall case length, a 1.0 m integral cable and miniature coaxial termination.

Model21504-000-008-10-02
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 21504-000-008-10-02 and required quantity.

21504-000-008-10-02

Technical Specifications

Manufacturer ordering data organized for exact configuration, installation and replacement review.

01
Product IdentityExact legacy 7200 probe configuration
ManufacturerBently Nevada
Complete model21504-000-008-10-02
System family7200 5 mm and 8 mm proximity system
Nominal linear range2 mm (80 mils)
02
Cable & TerminationMatched cable and connector data
Integral probe cable1.0 m
Connector option 02Miniature male coaxial plug
Complete electrical length5 m or 9 m matched 7200 system
Extension cable selection4 m or 8 m 7200 cable, respectively
03
ConstructionProbe mechanical configuration
Probe tip8 mm polyphenylene sulfide (PPS)
Mounting thread3/8-24 UNF standard mount
Unthreaded length0.0 in
Overall case length0.8 in (20.3 mm)
04
Ordering & InstallationDecoded ordering fields and fit checks
Code 0000.0 in unthreaded length
Code 0080.8 in overall case length
Code 101.0 m integral probe cable
Code 02Miniature male coaxial termination

21504-000-008-10-02 PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, termination, installation, ordering-code and replacement checks for this exact probe configuration.

01

Which transducer system is compatible with 21504-000-008-10-02?

It belongs to the legacy Bently Nevada 7200 5 mm and 8 mm proximity system. Use a matching 7200 extension cable and Proximitor; do not mix it with 3300 or 3300 XL components.

02

Which extension cable length completes this 1.0 m probe assembly?

Select a 4 m 7200 extension cable for a 5 m system or an 8 m 7200 extension cable for a 9 m system, and match the Proximitor to that complete electrical length.

03

What termination does option 02 provide?

Option 02 specifies the miniature male coaxial connector used to mate the probe with the corresponding 7200 extension cable.

04

What installation interface must be checked?

Confirm a 3/8-24 UNF mounting interface, adequate target clearance and cable routing that does not load or sharply bend the probe lead.

05

What does the 000 length code mean?

The 000 field specifies 0.0 in of unthreaded length ahead of the threaded probe case.

06

How should the 008 and 10 length codes be interpreted?

Code 008 specifies a 0.8 in overall case length; code 10 specifies a 1.0 m integral probe cable.

07

What must be confirmed before replacing an installed probe?

Match the complete part number, 8 mm tip, 3/8-24 UNF mounting thread, 0.0 in unthreaded length, 0.8 in case length, 1.0 m cable, option 02 connector and the installed 5 m or 9 m 7200 system length.
