Bently Nevada 200155-17-CN Low-Frequency Accelerometer

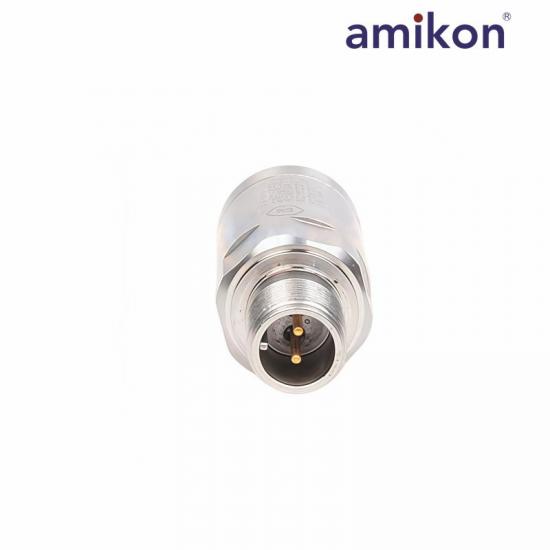

Bently Nevada 200155-17-CN low-frequency accelerometer

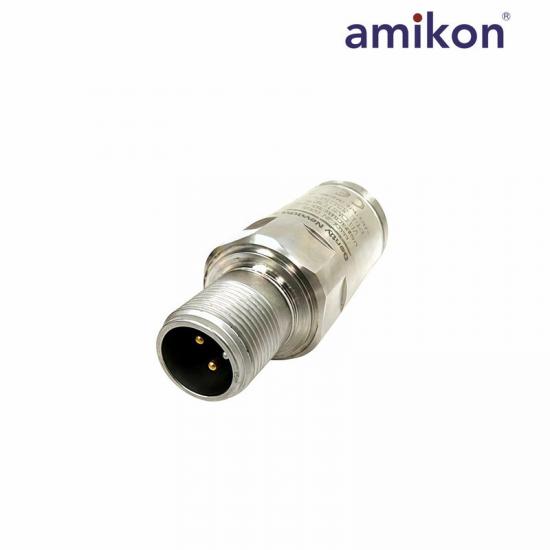

Bently Nevada 200155-17-CN low-frequency accelerometer

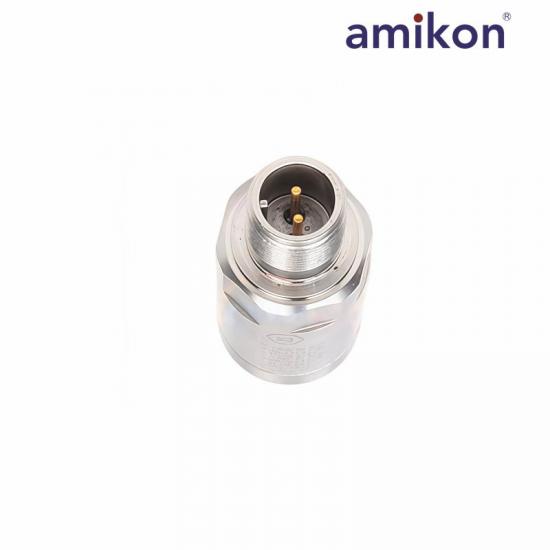

Bently Nevada 200155-17-CN low-frequency accelerometer

Bently Nevada 200155-17-CN Low-Frequency Accelerometer

✉  INQUIRE NOW

BENTLY NEVADA · 20015X ACCELEROMETER

200155-17-CN

Low-Frequency Trendmaster Pro Accelerometer

SENSITIVITY @ 80 HZ100 mV/g ±12%
MEASUREMENT RANGE±196 m/s² (±20 g)
FREQUENCY RANGE2 to 10,000 Hz
EXCITATION VOLTAGE4.7 to 5.5 Vdc
TOP CONNECTOR5-pin, 1/2-20
STUD OPTION 173/8-24 to 3/8-16 UNC

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    200155-17-CN

  • Order(MOQ):

    1

  • Payment:

    T/T
Inquire Now

BENTLY NEVADA · TRENDMASTER PRO

200155-17-CN

200155 Low-Frequency Trendmaster Pro Accelerometer

The 200155-17-CN uses the Bently Nevada 200155 low-frequency accelerometer base with mounting-stud option 17. The hermetically sealed 316L stainless-steel sensor converts acceleration parallel to its sensitive axis into a differential voltage signal and is intended for Trendmaster Pro low-frequency acceleration-to-velocity applications such as fin-fans and slow rotating shafts.

Model200155-17-CN
Product TypeLow-Frequency Accelerometer
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 200155-17-CN and required quantity.

200155-17-CN

Technical Specifications

Baker Hughes Bently Nevada technical and ordering data organized for configuration, installation and replacement review.

01
Product IdentityExact sensor family and performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model200155-17-CN
Base sensor200155 low-frequency accelerometer
Sensitivity @ 80 Hz10.2 mV/(m/s²), 100 mV/g ±12%
Measurement range±196 m/s² (±20 g)
Frequency range2 to 10,000 Hz referenced to 80 Hz, ±10%
02
Cable & TerminationConnector, cable and electrical interface
Top electrical connector5-pin, 1/2-20
Excitation voltage4.7 to 5.5 Vdc
Output bias voltage+2.5 ±0.23 Vdc
Compatible interface cable200151 or 200152 accelerometer cable
Cable construction4-conductor, 22 AWG, braided shield and drain wire
200155 maximum cable length15.24 m (50 ft)
03
ConstructionHousing, sensing element and mounting data
Housing and connector316L stainless steel
SealingHermetic, 5 × 10⁻⁸ atm·cc/s maximum
Sensing element / geometryCeramic / shear
Body size17.5 mm hex × 45.7 mm high
Typical weight58 g (2.0 oz)
Base mounting thread3/8-24 female
04
Ordering & InstallationDecoded stud option and installation checks
Ordering structure200155-AA-BB
Code 17 mounting stud3/8-24 to 3/8-16 UNC, 1-3/8 in hex plate stud
Option 17 stud length10.2 mm (0.400 in)
Option 17 replacement part161961-01
Sensor mounting torque2.7 to 6.8 N·m (2 to 5 ft·lbf)
Approval suffix CNVerify against the product label and original order documentation

200155-17-CN PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, cable termination, installation, option-code and replacement checks for this exact accelerometer configuration.

01

Which monitoring channel is compatible with the 200155 sensor?

Because the 200155 has a settling time of up to 2000 ms, Baker Hughes specifies a low-frequency acceleration-to-velocity channel on a ProTIM, DSM or System 1 system. The listed ProTIM application is option -05 for fin-fan and slow rotating shaft service.

02

Which Bently Nevada interfaces are listed for the 20015x accelerometers?

The official datasheet lists the 200100 Dual Acceleration-to-Velocity flexiTIM Module, the 89130-01 Acceleration-to-Velocity TIM and the 1900/25 and 1900/27 monitors. Confirm channel type and configuration before connecting this 200155 variant.

03

Which cable and termination should be used with 200155-17-CN?

Use a compatible 200151 or 200152 accelerometer interface cable with the sensor’s 5-pin, 1/2-20 top connector. For the 200155, keep total cable length within the official 15.24 m (50 ft) maximum.

04

How is mounting option 17 installed?

Option 17 is the 3/8-24 to 3/8-16 UNC hex-plate stud. The official table lists a 10.2 mm (0.400 in) stud length and replacement part 161961-01; the 3/8-24 end mates with the sensor base.

05

What mounting checks are required for accurate vibration data?

Install the accelerometer on the bearing housing or machine casing, seat the 3/8-24 interface correctly and apply the specified sensor mounting torque of 2.7 to 6.8 N·m. Improper installation can reduce amplitude or frequency response and generate false signals.

06

How should the CN suffix be handled when ordering or replacing this unit?

The current 164986 Rev. Y ordering table enumerates approval code 05 but does not decode CN. Do not infer an approval from the suffix; verify CN from the installed product label, certificate and original order acknowledgement.

07

What must be confirmed before replacing 200155-17-CN?

Match the complete part number, 100 mV/g sensitivity, ±20 g range, 2 to 10,000 Hz frequency range, low-frequency channel type, 5-pin 1/2-20 connector, option 17 mounting stud, cable length and the approval marking documented for the installed unit.
