Bently Nevada 200355-10-00-00 100 mV/g Accelerometer

Bently Nevada 200355-10-00-00 100 mV/g accelerometer
Bently Nevada 200355-10-00-00 100 mV/g accelerometer
Bently Nevada 200355-10-00-00 100 mV/g accelerometer

Bently Nevada 200355-10-00-00 100 mV/g Accelerometer

✉  INQUIRE NOW

BENTLY NEVADA · 200350 / 200355 ACCELEROMETERS

200355-10-00-00

General-Purpose Constant-Current Accelerometer

SENSITIVITY100 mV/g ±5%
MEASUREMENT RANGE±50 g
FREQUENCY RANGE0.2 to 10,000 Hz
EXCITATION18 to 28 Vdc · 2 to 20 mA
TOP CONNECTOR2-pin MIL-C-5015
MOUNT OPTION 101/4-28 adhesive stud mount

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    200355-10-00-00

  • Order(MOQ):

    1

  • Payment:

    T/T
Inquire Now

BENTLY NEVADA · 200355 ACCELEROMETER

200355-10-00-00

200355 General-Purpose Constant-Current Accelerometer

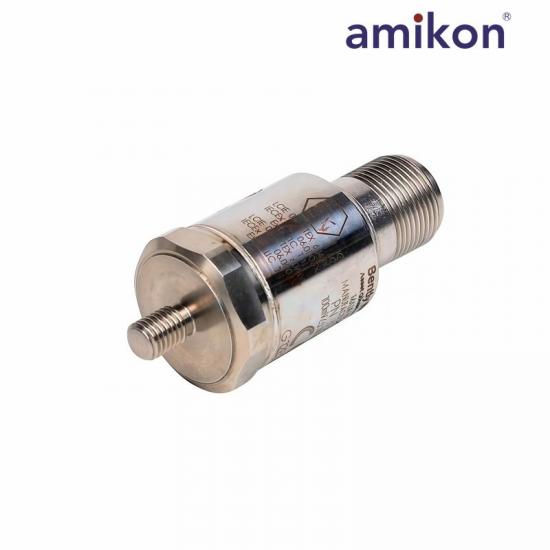

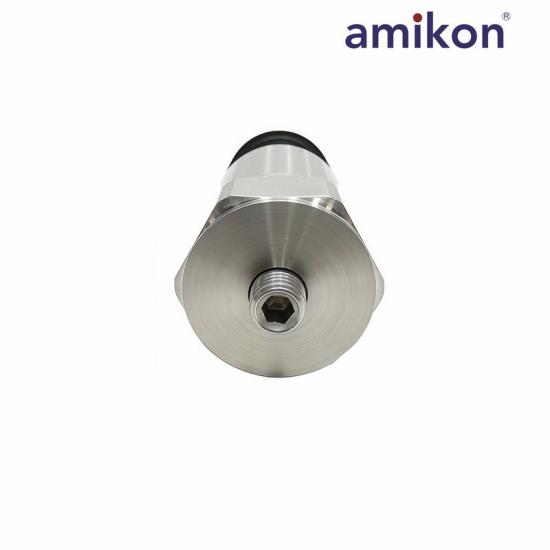

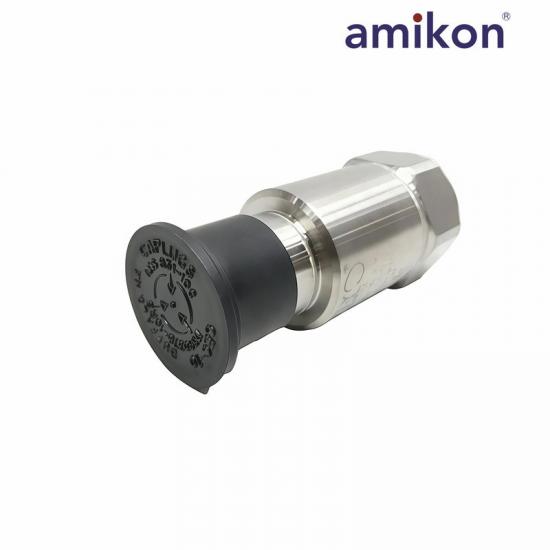

The 200355-10-00-00 is a case-mounted piezoelectric seismic accelerometer for vibration measurement on bearing housings and machine casings. It provides 100 mV/g nominal sensitivity and is designed for the Trendmaster Pro Constant Current Direct Input Card 149811-02 or Seismic Direct Input Card 164746-01. Its decoded configuration specifies the code 10 adhesive stud mount, ±5% sensitivity tolerance and no hazardous-area approvals.

Model200355-10-00-00
Product TypeAccelerometer
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 200355-10-00-00 and required quantity.

200355-10-00-00

Technical Specifications

Baker Hughes Bently Nevada technical and ordering data organized for compatibility, termination, installation and replacement review.

01
Product IdentityExact sensor configuration and performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model200355-10-00-00
Base sensor200355 general-purpose accelerometer
Sensitivity100 mV/g ±5%
Measurement range±50 g
Frequency range0.2 to 10,000 Hz (±3 dB)
02
Cable & TerminationConnector, cable and constant-current interface
Top electrical connector2-pin MIL-C-5015
Excitation voltage18 to 28 Vdc
Constant-current excitation2 to 20 mA
Output bias voltage8 to 12 Vdc
Compatible cables9571 unarmored or 84661 armored
Recommended cable length104 ft (31 m), under stated datasheet assumptions
03
ConstructionCase, sensing element and mounting interface
Case materialStainless steel
Case constructionWelded hermetic seal
Enclosure ratingIP68
Sensing element / geometryPiezoelectric ceramic / shear
Body size7/8 in (22 mm) hex × 2.06 in (52.3 mm) high
Weight3.3 oz (94 g)
04
Ordering & InstallationDecoded ordering fields and installation checks
Ordering structure200355-AA-BB-CC
Code 10 mounting option1/4-28 adhesive stud mount
First code 00100 mV/g sensitivity, ±5% tolerance
Second code 00No hazardous-area approvals
Maximum mounting torque2 to 5 ft·lbf (2.7 to 6.8 N·m)
Adhesive mounting cure time24 hours

200355-10-00-00 PRODUCT SUPPORT

Frequently Asked Questions

Input compatibility, termination, installation, ordering-code and replacement checks for this exact accelerometer configuration.

01

Which monitoring inputs are specified for 200355-10-00-00?

The official datasheet lists the Trendmaster Pro Constant Current Direct Input Card 149811-02 and the Seismic Direct Input Card 164746-01. Confirm the installed card and its constant-current configuration before connection.

02

Which cable and termination should be used?

The sensor has a top-mounted 2-pin MIL-C-5015 connector. Use a compatible 9571 unarmored cable or 84661 armored cable; the datasheet recommends up to 104 ft (31 m) under its stated cable-capacitance and current-source assumptions.

03

How is mounting option 10 installed?

Code 10 specifies the 1/4-28 adhesive stud mount. Prepare a clean, properly scuffed and degreased mounting surface, mix and apply the specified adhesive kit, position the pad and allow the official 24-hour cure time before loading the joint.

04

What thread and torque checks are required?

The accelerometer body has a 1/4-28 female mounting thread. After the adhesive pad has fully cured and the stud is correctly seated on the bearing housing or machine casing, tighten within the specified 2.7 to 6.8 N·m (2 to 5 ft·lbf) range.

05

What electrical supply must the input provide?

Provide 18 to 28 Vdc constant-current excitation at 2 to 20 mA. A correctly operating sensor has an 8 to 12 Vdc output bias; verify the cable polarity and input-card configuration before troubleshooting the signal.

06

What do the two 00 fields mean in 200355-10-00-00?

In the official 200355-AA-BB-CC ordering structure, the first 00 selects 100 mV/g sensitivity with ±5% tolerance. The second 00 specifies no hazardous-area approvals.

07

What must be confirmed before replacing this exact unit?

Match the full model 200355-10-00-00, 100 mV/g ±5% sensitivity, ±50 g range, 0.2 to 10,000 Hz response, 2-pin MIL-C-5015 connector, option 10 adhesive stud mount, approval code 00, cable type and installed constant-current input card.
