Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm proximity probe
Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm proximity probe
Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm proximity probe

Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330101-00-63-10-02-00

3/8-24 UNF Standard Probe · 1.0 m Cable

CASE THREAD3/8-24 UNF-2A
UNTHREADED LENGTH0.0 in
OVERALL CASE LENGTH6.3 in
TOTAL PROBE LENGTH1.0 m (3.3 ft)
CONNECTORClickLoc · Standard Cable
APPROVAL OPTION00 · Not Required

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330101-00-63-10-02-00

  • Order(MOQ):

    1

  • Payment:

    T/T
Inquire Now

3300 XL 8 MM · STANDARD PROBE

330101-00-63-10-02-00

3300 XL 8 mm Standard-Mount Proximity Probe

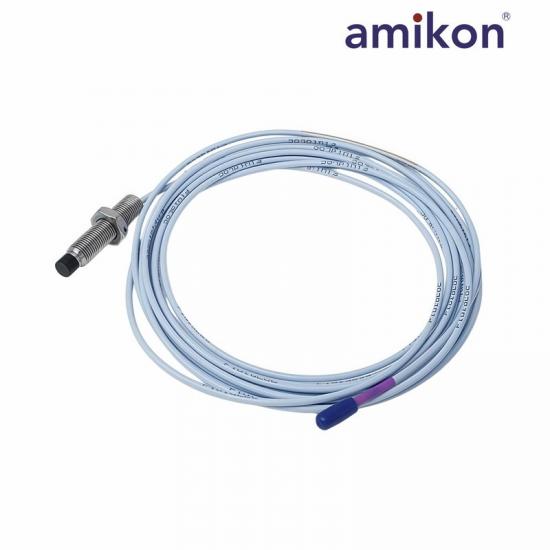

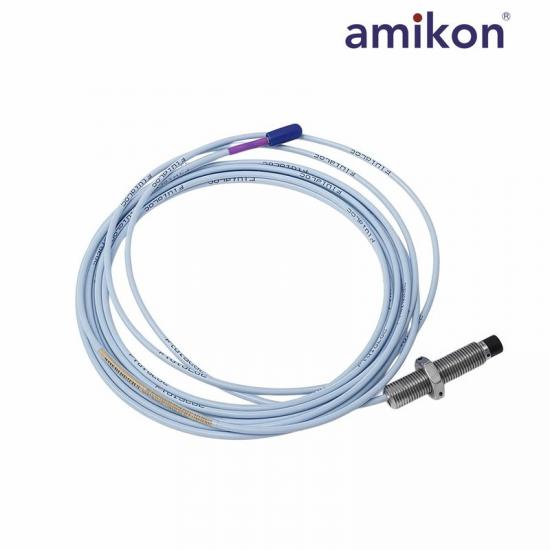

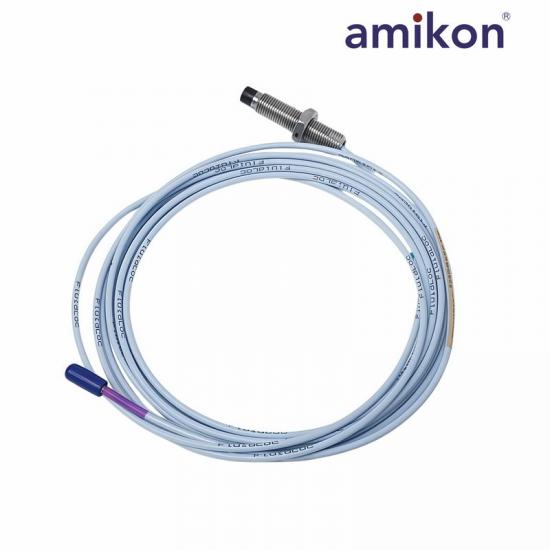

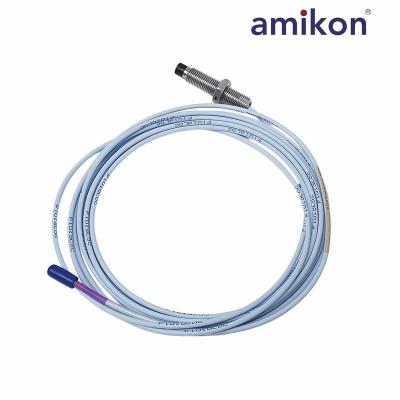

The 330101-00-63-10-02-00 is a Bently Nevada 330101 forward-mount probe for a 3300 XL 8 mm proximity transducer system. Its exact configuration combines a 3/8-24 UNF-2A unarmored probe, 0.0 in unthreaded length, 6.3 in overall case length, 1.0 m standard FEP-insulated triaxial cable, ClickLoc termination without a connector protector and no agency approval option.

Model330101-00-63-10-02-00
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330101-00-63-10-02-00 and required quantity.

330101-00-63-10-02-00

Technical Specifications

Baker Hughes Bently Nevada technical and ordering data organized for system matching, termination, installation and replacement review.

01
Product IdentityExact probe family and system performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330101-00-63-10-02-00
Base probe330101 standard forward-mount probe
Transducer family3300 XL 8 mm
Linear range2 mm (80 mils)
Scale factor, 1 m system7.87 V/mm (200 mV/mil) ±5%
Frequency response0 to 10 kHz, +0 / -3 dB
02
Cable & TerminationCable construction, connector and electrical checks
Integral probe cable1.0 m (3.3 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector option 02Miniature coaxial ClickLoc, no protector
Nominal 1 m probe resistance7.59 ±0.50 Ω
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
Connector materialGold-plated brass or beryllium copper
03
ConstructionProbe materials and exact mechanical configuration
Probe tip8.0 mm PPS
Probe case materialAISI 303 or 304 stainless steel
Case thread3/8-24 UNF-2A
Unthreaded length0.0 in
Overall case length6.3 in
ArmorNot fitted
Maximum tensile strength330 N (75 lbf), case to probe lead
04
Ordering & InstallationDecoded ordering fields and installation limits
Ordering structure330101-AA-BB-CC-DD-EE
Code 000.0 in unthreaded length
Code 636.3 in overall case length
Code 101.0 m total probe length
Code 02ClickLoc connector, standard cable, no protector
Approval code 00Not required
Maximum thread engagement0.563 in for 3/8-24 case thread

330101-00-63-10-02-00 PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, connector termination, installation, length-code and replacement checks for this exact 330101 configuration.

01

Which Proximitor Sensor configuration is compatible with this probe?

Use a 3300 XL 8 mm Proximitor Sensor configured for a 1.0 m total system length. Because this probe already has a 1.0 m integral cable, it connects directly to the matching 1 m Proximitor Sensor without an extension cable.

02

What does the complete 00-63-10-02-00 ordering code specify?

It specifies 0.0 in unthreaded length, 6.3 in overall case length, 1.0 m total probe length, a miniature coaxial ClickLoc connector on standard cable without a connector protector, and no agency approval option.

03

How should the ClickLoc cable be routed and terminated?

Keep the 75 Ω FEP-insulated triaxial cable above its 25.4 mm minimum bend radius, mate the miniature coaxial ClickLoc connector with the matching 1 m Proximitor Sensor, and do not exceed the 0.565 N·m connector torque.

04

What installation limits apply to the 3/8-24 probe case?

The probe uses a 3/8-24 UNF-2A forward-mount case thread. Keep thread engagement within 0.563 in, use the supplied lock nut correctly, and avoid excessive engagement that can bind or damage the probe during installation.

05

What system performance should be checked after installation?

With a complete 1 m 3300 XL 8 mm system calibrated to AISI 4140 steel, verify the 2 mm linear range, 7.87 V/mm scale factor, 0 to 10 kHz response and approximately -9 Vdc radial-vibration gap setting at 1.27 mm.

06

What target and shaft dimensions are recommended?

The official data specifies a minimum flat target diameter of 15.2 mm, a minimum shaft diameter of 50.8 mm and a recommended minimum shaft diameter of 76.2 mm. Smaller shafts can change the scale factor.

07

What must be confirmed before replacing 330101-00-63-10-02-00?

Match the complete part number, 3/8-24 thread, 0.0 in unthreaded length, 6.3 in case length, 1.0 m integral cable, option 02 ClickLoc termination, no-approval code 00, target material and the installed 1 m Proximitor Sensor configuration.
