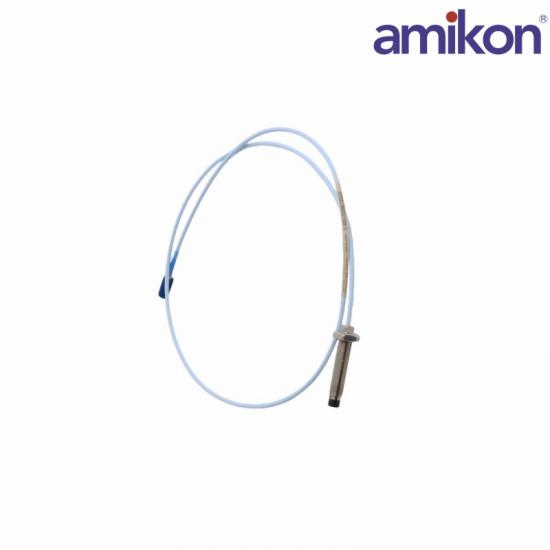

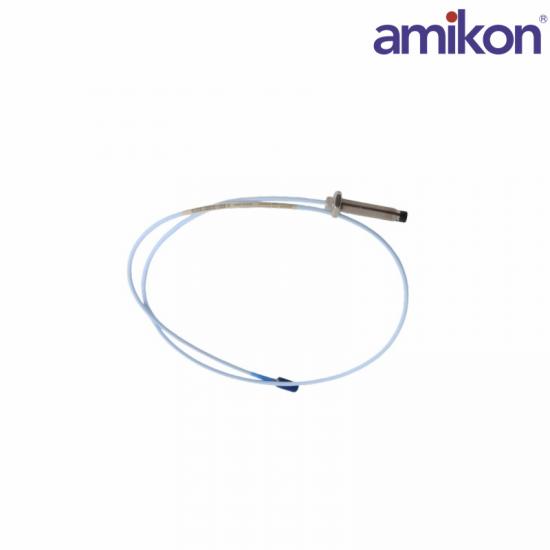

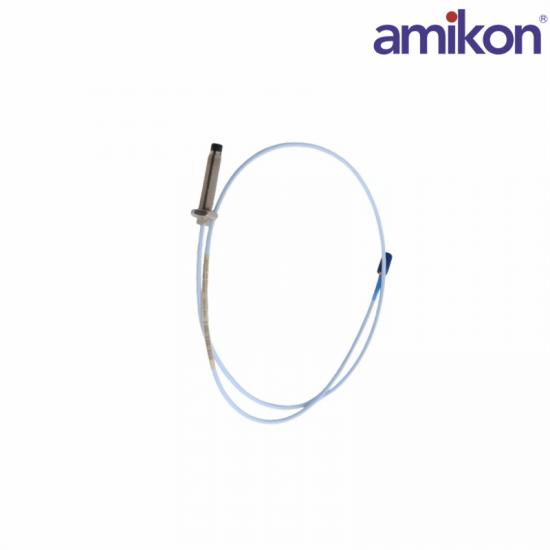

330101-00-12-05-02-00 is a 3300 XL 8 mm Proximity Probe manufactured by Bently Nevada. Additionally, the 3300 XL probe and extension cable represent advancements over earlier models. The bond between the probe tip and the probe body is stronger thanks to a unique TipLoc molding process. In order to more firmly attach the probe cable and probe tip, the probe's cable features a unique CableLoc design that offers 330 N (75 lbf) of pull strength. Through the interior of the cable, this option stops oil and other liquids from leaking out of the machine.

330101-00-12-05-02-00 Functional Description

The specially-engineered locking mechanism on these connectors prevents the connectors from losing and only requires finger-tight torque (the connectors will "click" when tight). No special tools are needed to install or remove these connectors. You can get extension cables and 8 mm 3300 XL probes with connector shields already attached. For field installations, we can also provide connector shields separately (such as when an application must run the cable through a restrictive conduit).

For applications where either the probe lead or extension cable may exceed the usual 177 °C (350 °F) temperature specification, an extended temperature range (ETR) probe and ETR extension cable are offered. The extended temperature rating for the ETR probe is 218 °C (425 °F). Up to 260 C (500 F), the ETR extension cable is rated. Standard temperature probes and cables can be used with the ETR probe and cable because they are both compatible with them. For instance, you can use an ETR probe with the 330130 extension cable. The 3300 XL Proximity Sensor is a common sensor used by the ETR system.

Characteristics

1、Probe tip, 8 mm (0.31 in) diameter

2、9.66 mm (0.38 in) maximum diameter

3、5/16 in wrench flats, 4 each

4、75Ω cable, 3.68 mm (0.145 in) maximum diameter, 3.94 mm (0.155 in) maximum diameter for FluidLoc cable, 7.67 mm (0.302 in) outside diameter with armor, 10.2 mm (0.4 in) maximum diameter for armor ferrule

5、Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”

6、Case length “A”,

7、349.3 (13.75) max. distance

8、6.0 mm (0.235 in) maximum

9、Total length “C”, +30%, -0% 3
