Description:

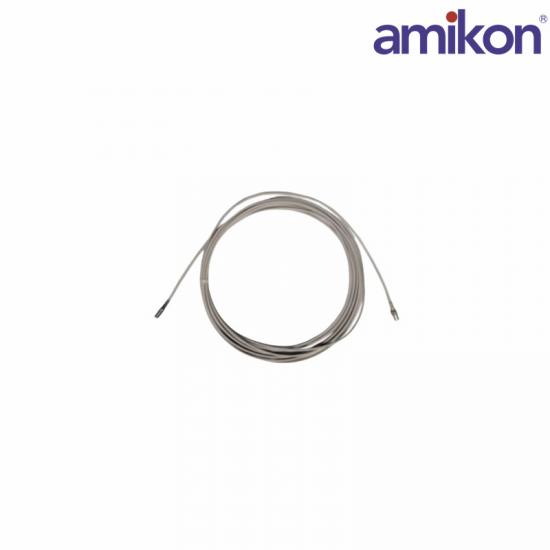

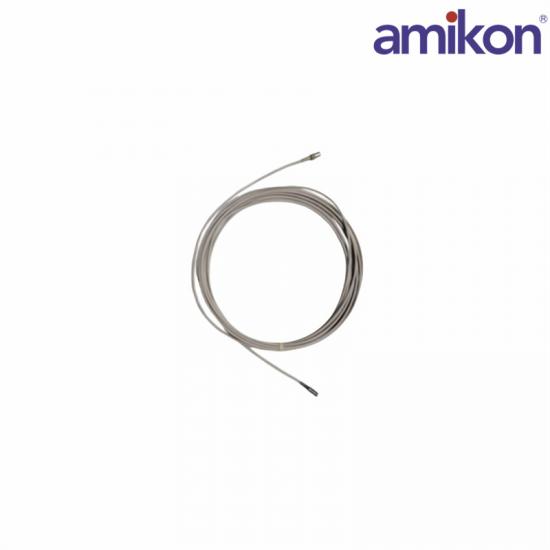

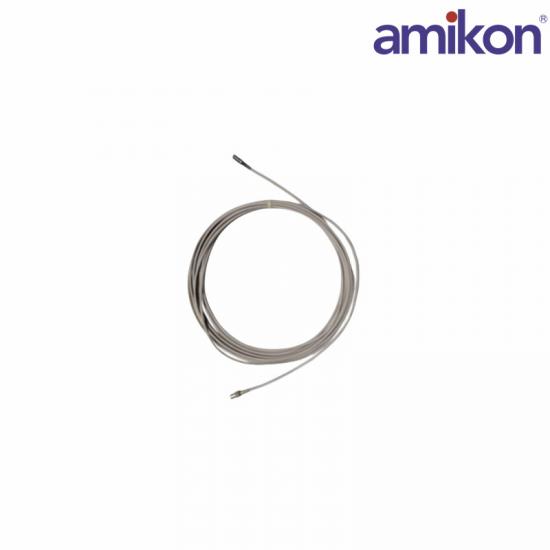

The Bently Nevada 330904-00-12-10-01-CN is a high-performance vibration monitoring system component designed for continuous monitoring of rotating machinery. This device is crucial for predictive maintenance and helps in ensuring operational efficiency and equipment reliability.

Model: 330904-00-12-10-01-CN

Diameter: 5 mm

Length: 12 inches (305 mm)

Sensitivity: 7.87 V/mm (200 mV/mil)

Frequency Response: DC to 10 kHz

Linear Range: 1.27 mm (50 mils)

Operating Temperature Range: -35°C to +177°C (-31°F to +350°F)

Output Voltage: Typically -1 to -18 V DC (depending on shaft position)

System Capacitance: 20 pF/ft (65.6 pF/m)

The 330904-00-12-10-01-CN  3300 probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. compressor applications. The side-view characteristics of the 3300 probe are also superior to those of the 3000-series 190 probe when gapping the 3300 probe at the same distance from the probe target.  The 3300 probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 probe comes standard with either 3⁄8-24 or M10X1 threads. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection.
