English
Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Product No. |
330101-00-15-20-02-05 |
|
Unthreaded Length (00) |
0.0 in |
|
Overall Case Length (15) |
1.5 in |
|
Total Length (20) |
2.0 meters (6.6 feet) |
|
Connector & Cable-Type (02) |
Miniature coaxial ClickLoc™ connector, standard cable |
|
Agency Approval (05) |
CSA, ATEX, IECEx Approvals |
|
Measurement Range |
0 to 8 mm (0 to 0.315 inches) |
|
Output Signal |
4-20 mA |
|
Power Supply |
24 VDC |
|
Operating Temperature Range |
-20 °C to +80 °C (-4 °F to +176 °F) |
|
Frequency Response |
10 Hz to 1 kHz |
|
Accuracy |
±0.1 g |
|
Protection Rating |
IP65 |
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
Frequently Asked Questions

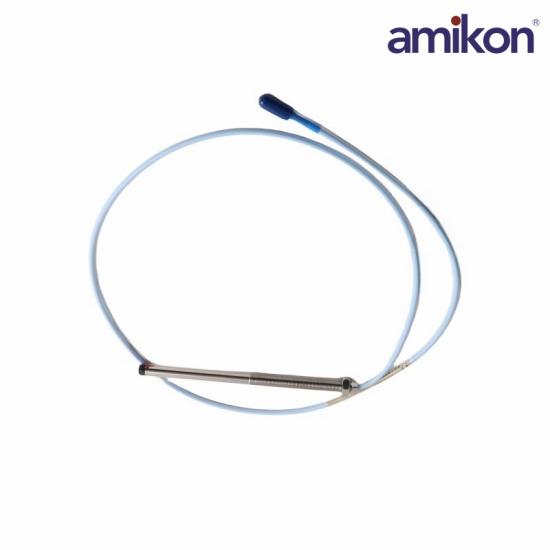

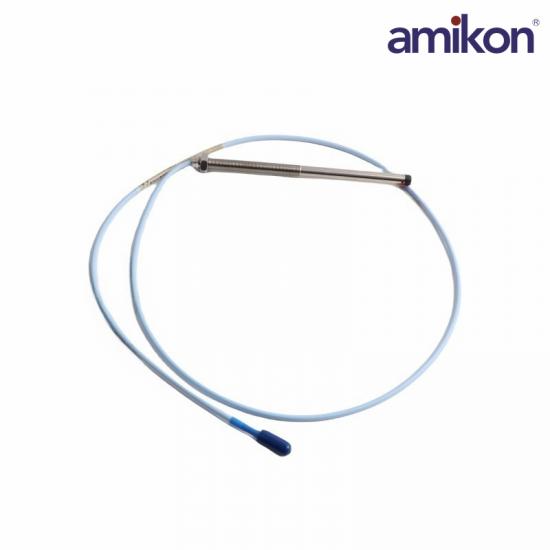

Q1: What is the Bently Nevada 330101-00-15-20-02-05 Proximity Probe?
A1: It is a 3300 XL 8 mm proximity probe used for non-contact vibration and displacement monitoring in industrial rotating machinery applications.
Q2: What is the 330101-00-15-20-02-05 overall case length of this probe?
A2: The 330101-00-15-20-02-05 overall case length option “15” corresponds to 1.5 inches.
Q3: What is the 330101-00-15-20-02-05 total probe length?
A3: The 330101-00-15-20-02-05 total length option “20” indicates a probe length of 2.0 meters (6.6 feet).
Q4: What type of output signal does this probe provide?
A4: The 330101-00-15-20-02-05 output signal is 4–20 mA.
Q5: What power supply is required for the 330101-00-15-20-02-05 probe?
A5: The 330101-00-15-20-02-05 probe operates with a 24 VDC power supply.
Product Applications
Power Industry: Power plants, steam turbines, generators, fans, water pumps.
Petrochemical and Chemical Industry: Compressors, pumps, reactors, blowers, industrial centrifuges.
Oil and Gas Industry: Natural gas pipelines, presses, liquefied natural gas (LNG) equipment.
Metallurgy and Mining: Large blast furnace blowers, smelting equipment.
Pulp and Paper Industry: Large drying cylinders, transmission systems.
