The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cable,

One 3300 XL Proximitor Sensor.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently Asked Questions

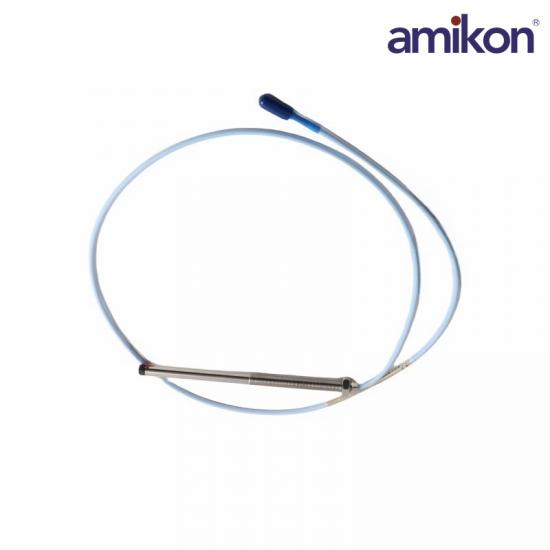

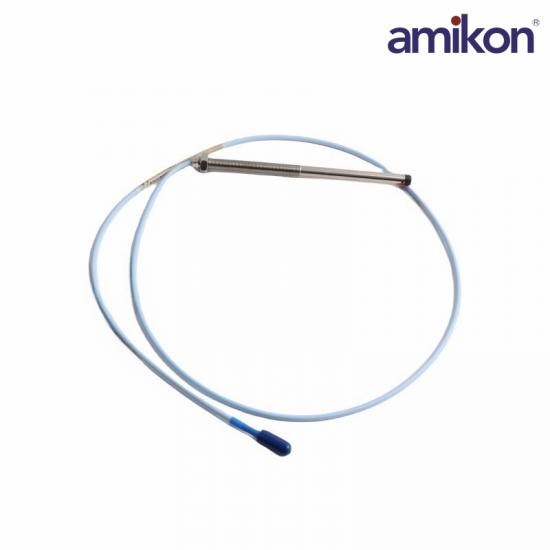

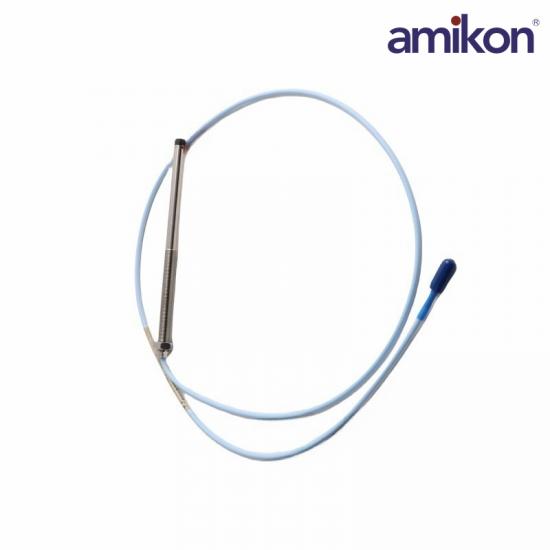

Q1: What is the Bently Nevada 330101-30-62-05-01-00 Proximity Probe?

A1: It is a 3300 XL 8 mm proximity probe used for non-contact vibration and displacement monitoring in rotating machinery applications.

Q2: What does the 330101-30-62-05-01-00 unthreaded length option “30” indicate?

A2: The “30” option specifies an unthreaded length of 3.0 inches.

Q3: What is the 330101-30-62-05-01-00 overall case length of this probe?

A3: The 330101-30-62-05-01-00 overall case length option “62” corresponds to 6.2 inches.

Q4: What is the 330101-30-62-05-01-00 total probe length?

A4: The 330101-30-62-05-01-00 total length option “05” indicates a probe length of 0.5 meter (1.6 feet).

Product Applications

Power Industry: Steam turbines, generators, induced draft fans, forced draft fans, feedwater pumps, etc., used in power plants.

Petrochemical and Chemical Industry: Ethylene compressors, hydrocracking compressors, circulating water pumps, agitators, pump sets, etc.

Metallurgy and Steel Industry: Blast furnace blowers, oxygen compressors, continuous casting machines, main motors, etc.

Natural Gas and Oil Extraction: Natural gas pipeline compressors, oil pumps, etc.

Cement and Mining: Large fans, coal mills, gearboxes.
