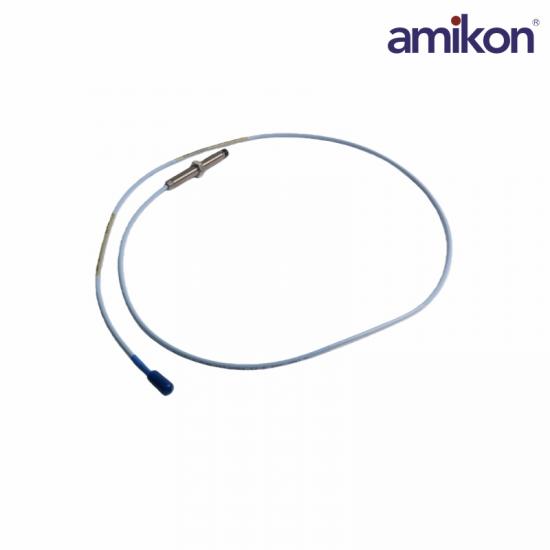

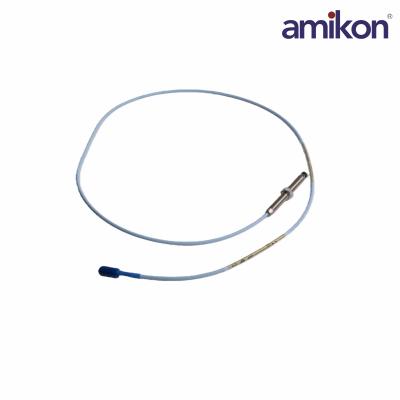

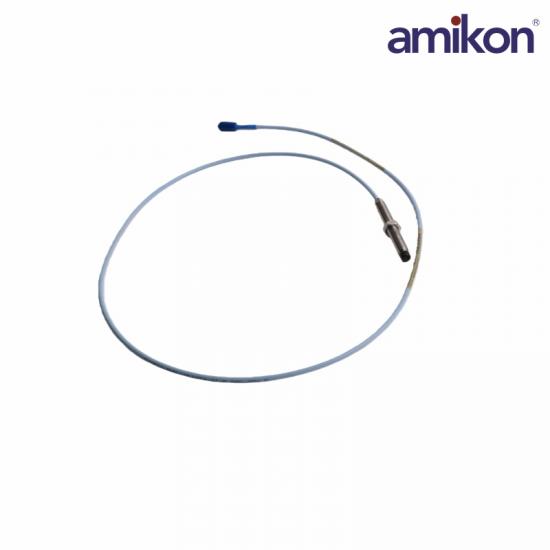

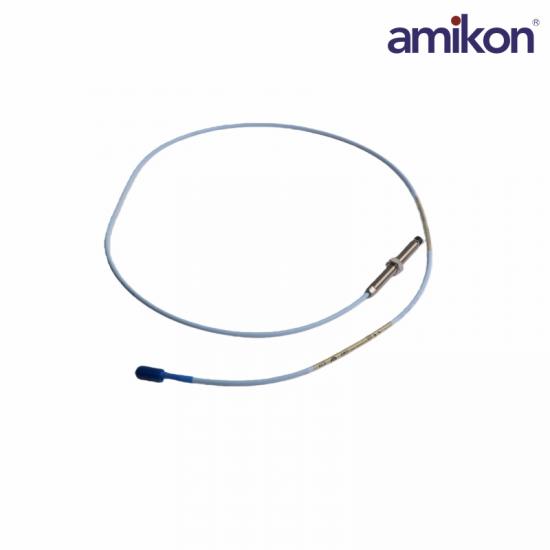

330101    3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)

A: Unthreaded Length Option

Minimum unthreaded length: 0.0 in.

B: Overall Case Length Option

Minimum case length: 2.6 in.

C: Total Length Option

05 0.5 meter (1.6 feet)

D: Connector and Cable-Type Option

01 Miniature coaxial ClickLoc connector with connector protector, standard cable

E: Agency Approval Option

05 CSA, ATEX, IECEx  Approvals

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

1. What is the probe diameter of the 330101-00-26-05-01-05?

The probe has a standard 8 mm diameter, which is part of the 3300 XL 8 mm proximity transducer system used for machinery vibration monitoring.

2. What type of thread does the probe use?

This proximity probe uses a 3/8-24 UNF thread, allowing secure installation in standard industrial mounting brackets and probe holders.

3. What is the cable length of this probe model?

The 330101-00-26-05-01-05 is equipped with a 0.5-meter (1.6 ft) integrated coaxial cable, designed for connection to extension cables and Proximitor sensors.

Technical Features

Interchangeability: The 3300 XL 8 mm system is fully interchangeable with other probes and extension cables in the same series, eliminating the need for bench calibration when replacing parts.

Durability: Features a patented TipLoc molding for a stronger bond between the probe tip and body, and a CableLoc design providing up to 330 N (75 lbf) of pull strength.

Environmental Limits: Standard operating temperature ranges from -35°C to +177°C (-31°F to +350°F).

Accuracy: Offers a precise measurement range with an incremental scale factor of 7.87 V/mm (200 mV/mil) when used with a standard system.
