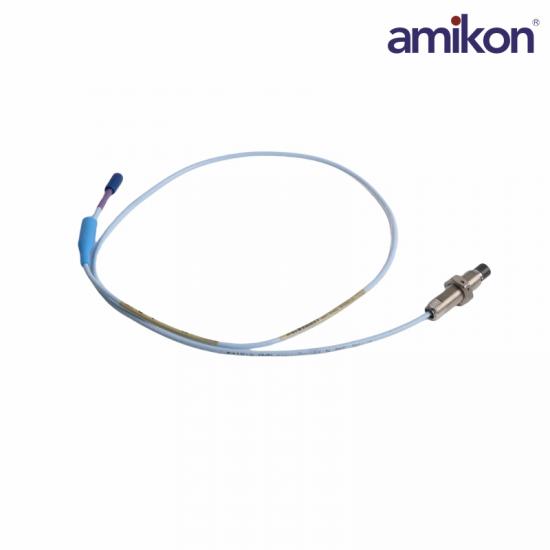

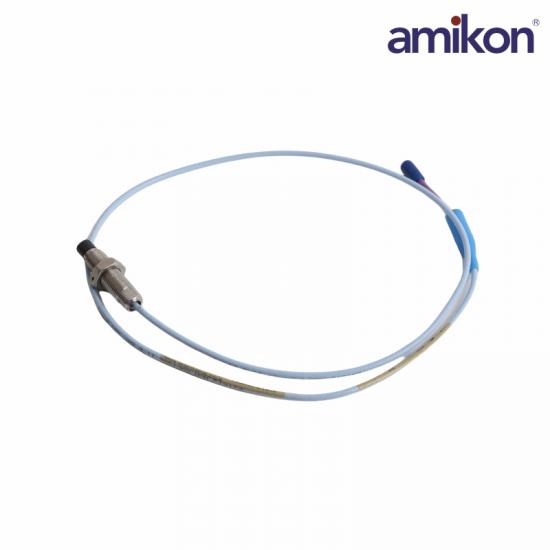

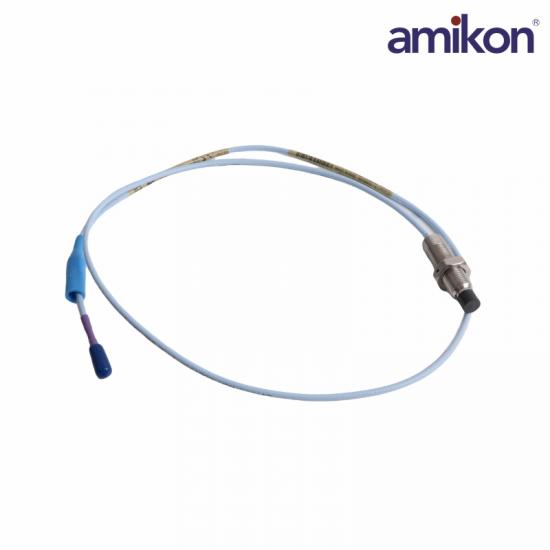

330703    3300 XL 11 mm Probe, M14 x 1.5 thread, without armor

Minimum unthreaded length:0 mm

B: Overall Case Length Option

Minimum length:50 mm

C: Total Length Option

10 1.0 meter (3.3 feet)

D: Connector and Cable-Type Option

02 Miniature coaxial ClickLoc connector, standard cable

E: Agency Approval Option

00 Not required

The 3300 XL 11 mm Proximitor Sensor is designed to replacethe 7200-series 11 mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL 11 mmsystem, every component must be replaced with 3300 XxL 11mm components. In addition, the monitoring system must beupdated. If using a 3500 Monitoring System, an updatedversion of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required.

Frequently asked questions：

1. What is the main function of the 330703-00-050-10-02-00 proximity probe?

The probe measures shaft displacement, vibration, and position in rotating machinery using non-contact eddy-current sensing technology.

2.What shipping methods are used for 330703-00-050-10-02-00?

Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

3.Do you provide warranty as standard?

We provide a full 12-month warranty for the 330703-00-050-10-02-00. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.

4.Do you offer global delivery?

Yes. We delivery the 330703-00-050-10-02-00 to the worldwide.  and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account.

Applications and Features

Measurement Type: It is primarily used for non-contact measurements of vibration and position on fluid-film bearing machines.

Common Uses: Typical applications include axial (thrust) position, ramp differential expansion on steam turbines, and rod drop measurements on reciprocating compressors.

Durability: The probe features a TipLoc molding for a robust bond between the tip and body, and a CableLoc design for high pull strength.

Environmental Protection: It can be equipped with a FluidLoc cable option to prevent oil leakage through the cable interior.
