Manufacturer : Bently Nevada

Product No. : 330101-00-27-50-02-CN

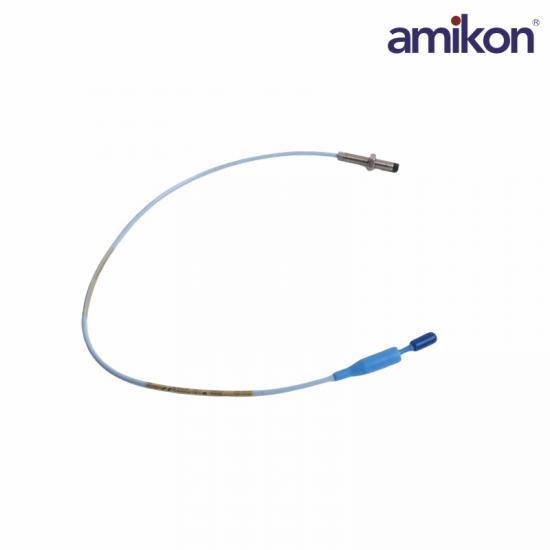

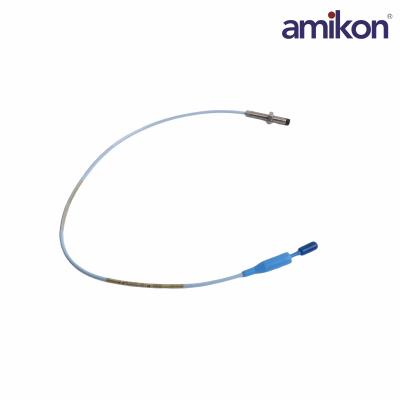

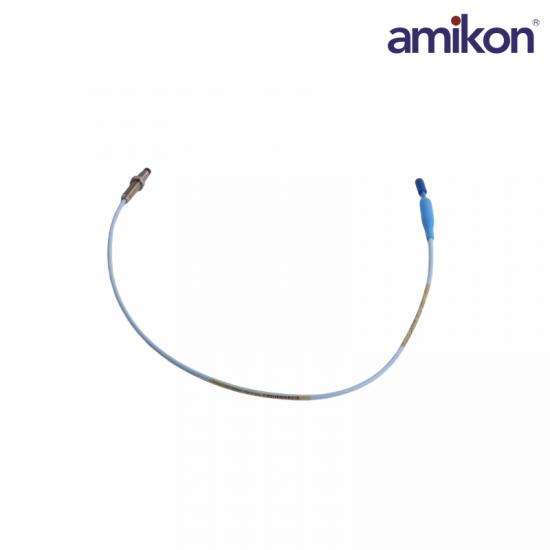

Product type : 3300 XL 8 mm Proximity Probes

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor

Made in U.S.A

Can add on Certificate Of Origin (COO)

Unthreaded Length Option : 00 = 0.0 in

Overall Case Length Option : 27 = 2.7 in

Total Length Option : 50 = 5.0 metre (16.4 feet)

Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable

Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

Probe Tip Material: Polyphenylene sulfide (PPS).

Probe Case Material: AISI 303 or 304 stainless steel (SST).

Operating and Storage Temperature: Standard probe: -51 °C to +177 °C (-60 °F to +351 °F)

Weight : 0.323 Kg

Shipping Weight : 1.5 Kg

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

Q1: What is the 330101-00-27-50-02-CN?

A1: The 330101-00-27-50-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe, designed for high-precision vibration and shaft displacement monitoring in industrial machinery.

Q2: What is the 330101-00-27-50-02-CN temperature range?

A2: The probe tip can withstand temperatures from −62°F to +425°F (approximately −52°C to +218°C), making it suitable for high-temperature environments.

Q3: What is the 330101-00-27-50-02-CN measurement accuracy?

A3: It provides an accuracy of ±0.025 mm (±1 mil), ensuring precise measurement performance.

Q4: What is the 330101-00-27-50-02-CN probe resistance?

A4: The resistance is 8.73 Ω ±0.5 (at 5 meters cable length).

Q5: What is the 330101-00-27-50-02-CN response/sensitivity?

A5: The probe has a response of 7.87 V/mm (±5%), enabling accurate displacement detection.

Product Applications

Oil & Gas Industry: Used for axial displacement, shaft vibration, and Keyphasor (phase) measurement of pumps, compressors, steam turbines, and gas turbines.

Power Generation: Monitoring the bearing vibrations of large rotating machinery (such as power generators) in power plants to ensure safe operation of the units.

Petrochemical: Used for monitoring high-speed rotating centrifuges, fans, motors, and gearboxes in industrial manufacturing processes.

Municipal Engineering: Monitoring pump equipment in public facilities such as water treatment plants.
