The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

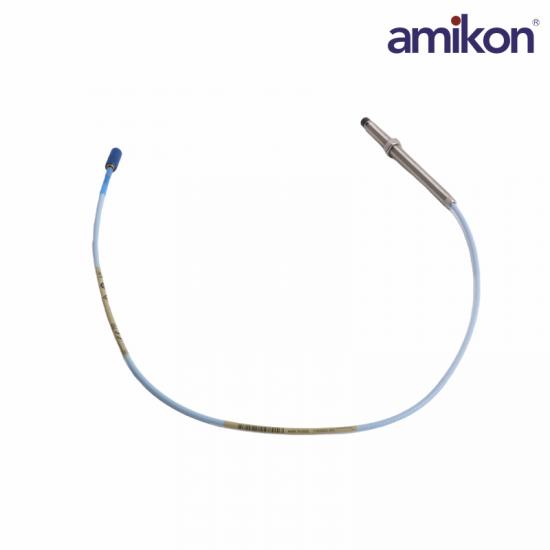

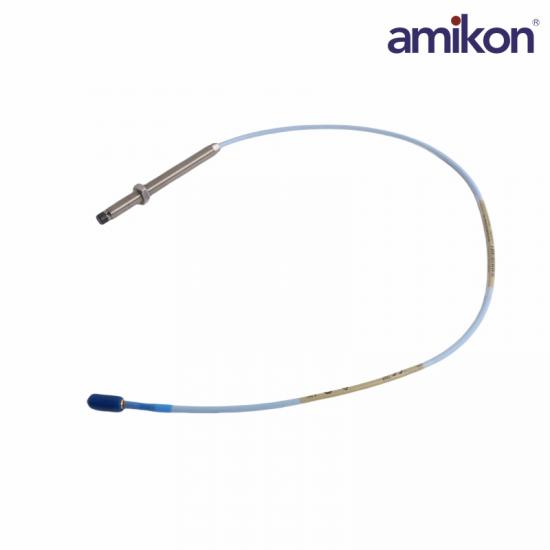

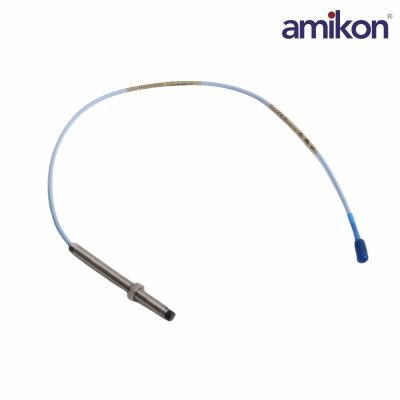

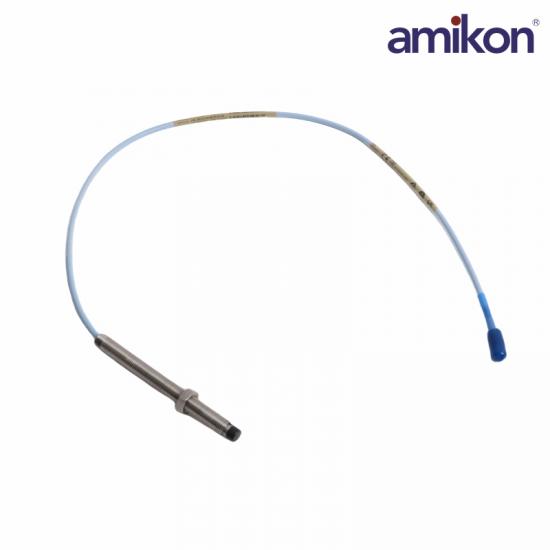

Q1: What is the 330101-43-63-90-02-00?

A1: The 330101-43-63-90-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe, designed for precise non-contact measurement of shaft vibration and displacement in rotating machinery.

Q2: What is the 330101-43-63-90-02-00 measurement range?

A2: It provides a measurement range of 0.25 mm to 2.3 mm (10–90 mils).

Q3: What is the 330101-43-63-90-02-00 output sensitivity?

A3: The probe has an output sensitivity of 7.87 V/mm (200 mV/mil), ensuring accurate displacement readings.

Q4: What is the 330101-43-63-90-02-00 operating temperature range?

A4: It operates within a standard temperature range of −52°C to +177°C (−62°F to +351°F).

Q5: What material is the probe calibrated for?

A5: The probe is calibrated for AISI 4140 steel, which ensures optimal accuracy when measuring compatible shaft materials.

Product Applications

Electric power industry: Widely used for axial vibration monitoring of gas turbines, steam turbines and generators to prevent equipment from malfunctioning due to abnormal vibration.

Petroleum and chemical industry: Installed on large centrifugal compressors, pumps and reciprocating machinery to monitor displacement changes caused by bearing wear, misalignment or imbalance.

Heavy industry manufacturing: Plays a monitoring role in large transmission equipment in steel mills and paper mills.
