The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

1. What is the model 330101-00-23-90-02-CN?

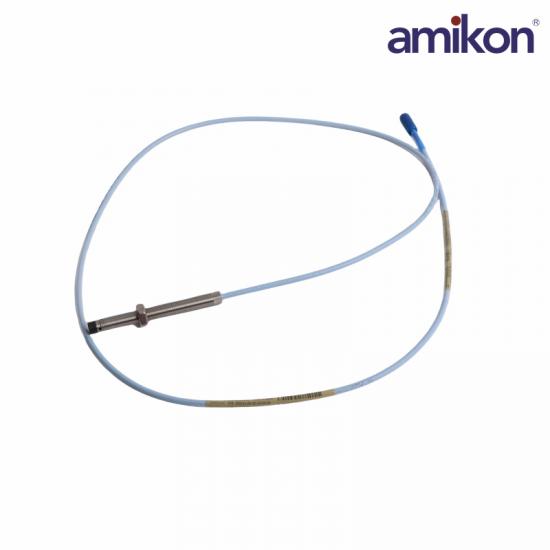

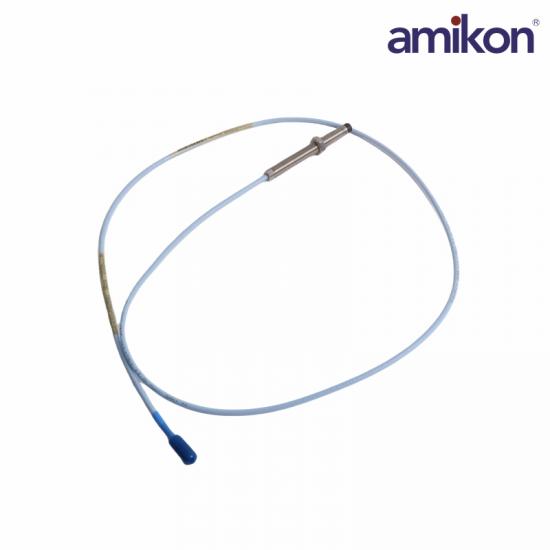

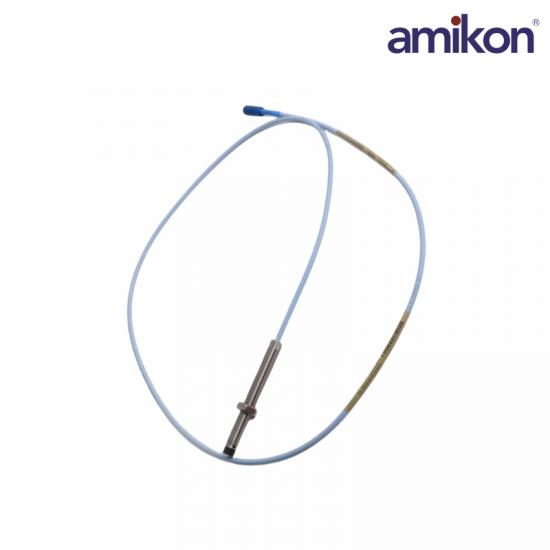

The Bently Nevada 330101-00-23-90-02-CN is a 3300 XL 8 mm proximity probe with a metric case thread, used for non-contact vibration and shaft position monitoring.

2. What does the 330101-00-23-90-02-CN unthreaded length (00) indicate?

0 mm unthreaded length – the entire case is threaded

3. What is the 330101-00-23-90-02-CN overall case length (23)?

230 mm

4. What is the 330101-00-23-90-02-CN total length (90)?

9.0 meters (~29.5 feet) including cable

5. What connector and cable type does it use (02)?

Miniature coaxial ClickLoc connector with standard cable

Product Applications

Oil and Gas: Monitoring of shaft displacement and vibration for centrifugal compressors, pumps, and reciprocating machinery.

Electricity: Key condition monitoring of steam turbine units in thermal power plants, hydropower plants, and nuclear power plants.

Petrochemicals: Monitoring of mechanical wear and operational stability of key units.

Steel and Mining: Protection and predictive maintenance for rotating equipment such as large fans, gearboxes, and motors.
