The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

1. What is the model 330101-02-12-15-02-00?

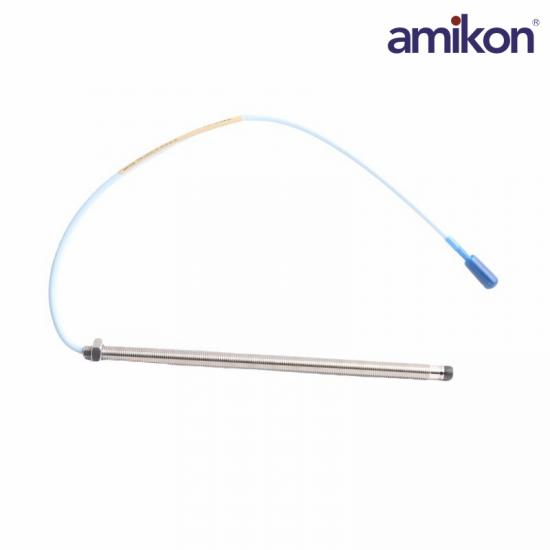

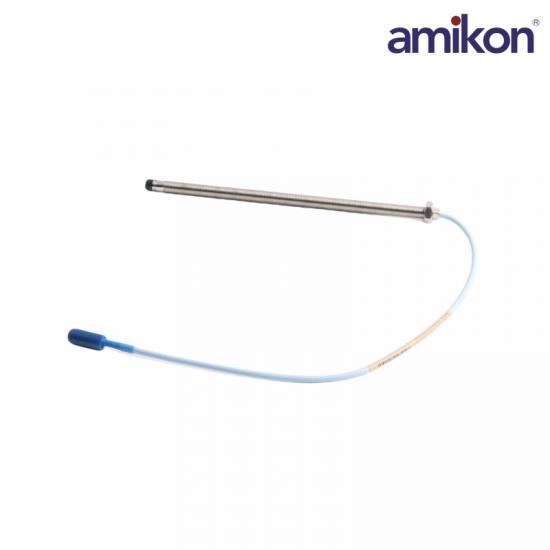

The Bently Nevada 330101-02-12-15-02-00 is a 3300 XL proximity probe used for non-contact vibration and shaft position monitoring.

2. What is the 330101-02-12-15-02-00 unthreaded length (02)?

0.2 inches

3. What is the 330101-02-12-15-02-00 overall case length (12)?

1.2 inches

4. What is the 330101-02-12-15-02-00 total cable length (15)?

1.5 metres (~4.9 feet)

5. Where is 330101-02-12-15-02-00 used?

Installed on turbines, compressors, pumps, and motors for accurate machinery vibration and position monitoring.

Product Applications

Electricity industry: Steam turbines and power generation units of thermal power plants, hydropower stations and nuclear power plants.

Petroleum and chemical industry: Large centrifugal compressors, reciprocating compressors and pump sets in refineries and chemical plants.

Metallurgy and steel industry: Blast furnaces' blowers, large fans and rolling machinery in steel mills.

Other industries: Such as cement plants (rotary kilns, grinding mills), pharmaceutical and glass manufacturing industries' large rotating equipment monitoring.
