The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications where an 8 mm probe is too large for the available mounting space.

Frequently Asked Questions

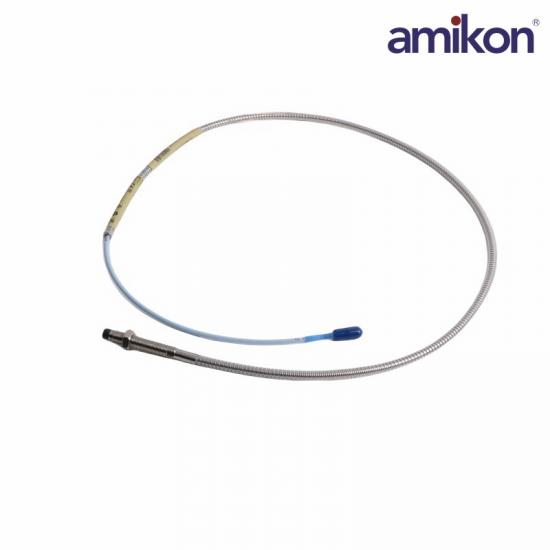

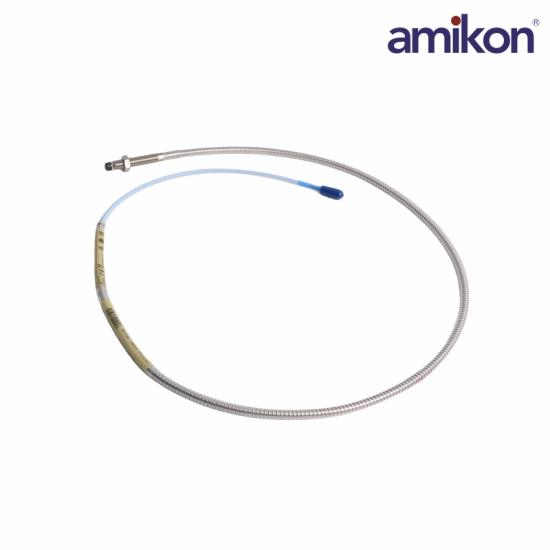

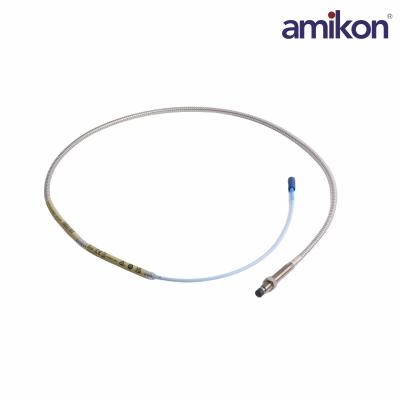

Q1: What is the Bently Nevada 330102-02-12-05-01-CN?

A1: It is a 3300 XL 8 mm proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What does the “02” option indicate?

A2: “02” specifies an unthreaded length of 0.2 inches.

Q3: What does the “12” option represent?

A3: “12” indicates an overall case length of 1.2 inches.

Q4: What does the “05” option represent?

A4: “05” refers to a total cable length of 0.5 meters (approximately 1.6 feet).

Q5: What does the “01” option indicate?

A5: “01” typically represents a standard configuration within the probe series, depending on system requirements.

Product Applications

Turbine monitoring: Used to monitor the radial vibration, axial displacement and speed of the rotor of large steam turbines. It is a key sensor for implementing the "Steam Turbine Monitoring Instrument System (TSI)".

Hydroelectric generator: Monitors the operating status of the large shaft in hydropower stations.

Centrifugal compressor: Monitors the bearing clearance and vibration of high-speed rotating compressors to prevent unplanned shutdowns due to mechanical failures.

Gas turbine: Conducts real-time monitoring on the drive units of oil and gas transportation and long-distance pipelines.

Large pump sets: Monitors the shaft vibration of key centrifugal pumps in oil refineries.

Motor: Evaluates the bearing wear and rotor dynamic characteristics of high-voltage and high-power motors.
