Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's(APl)670 Standard for mechanical configuration, linear range,accuracy,and temperature stability.All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

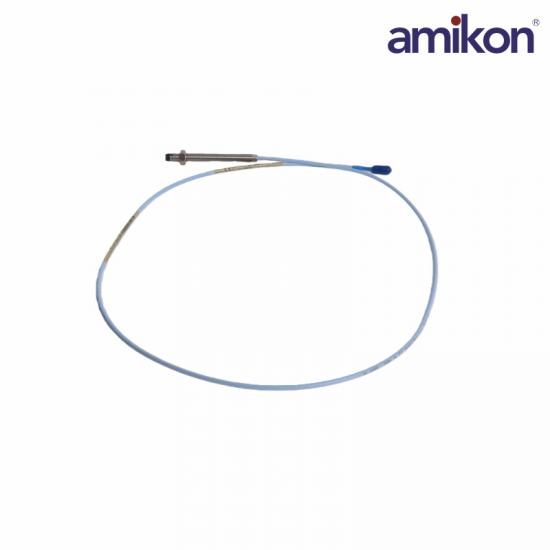

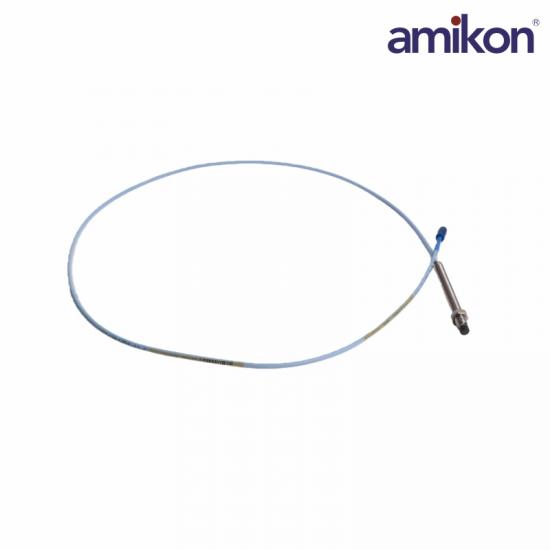

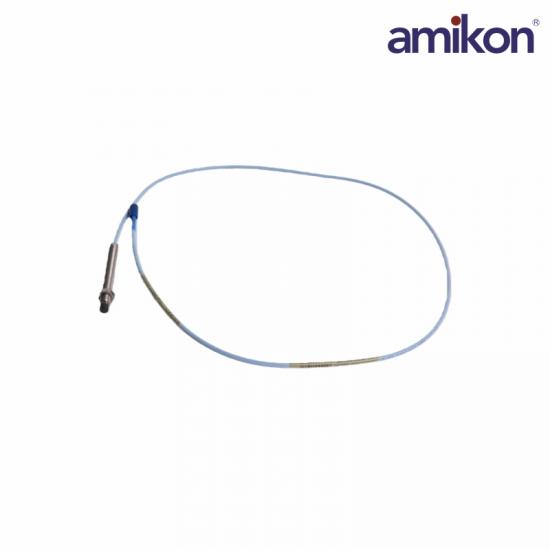

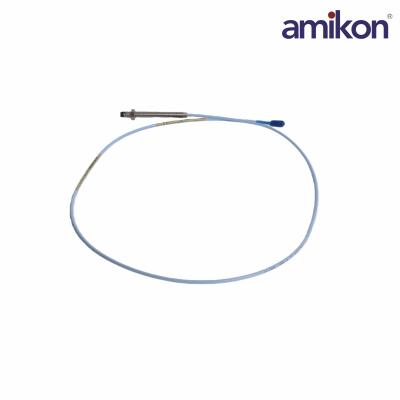

Q1: What is the Bently Nevada 330101-00-39-20-02-05?

A1: It is a 3300 XL 8 mm proximity probe designed for non-contact measurement of shaft vibration and position in rotating machinery.

Q2: What does “330101” represent in the model number?

A2: The “330101” indicates a 3300 XL 8 mm probe with a 3/8-24 UNF thread and a non-armored cable design.

Q3: What does the “00” option specify?

A3: The “00” code means the probe has an unthreaded length of 0.0 inches.

Q4: What does the “39” option indicate?

A4: The “39” code refers to an overall case length of 3.9 inches.

Q5: What is the total length of the probe?

A5: The “20” option corresponds to a total length of 2.0 meters (approximately 6.6 feet).

Product Applications

Petrochemical&Chemical: Centrifugal compressors and pumps used in refineries and petrochemical plants.

Power Generation: Steam turbine generators, feedwater pumps, and fans in power plants.

Metallurgy&Steel: Blast furnace fans, rolling mills.

Paper&Pulp industry: Large paper machines.

Mining industry: large-scale transmission systems, beneficiation equipment.

Nuclear Power: Safety monitoring of critical rotating equipment.

Key features of the product:

High reliability: Imported with original packaging, suitable for harsh industrial environments.

Environmental adaptability: Complies with IEC standards and maintains sensor gain stability in high humidity environments.

Monitoring content: shaft vibration, axial displacement (Position/Vibration).

For additional discounts, please contact our five-star sales manager Lisa Lin.
