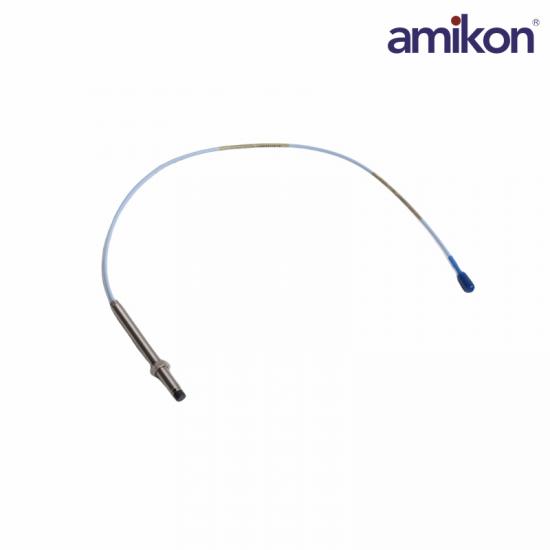

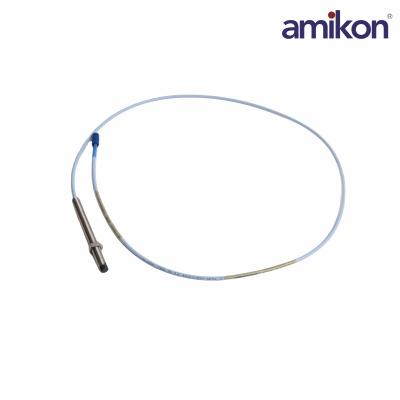

Model: 330101-00-40-05-01-00

Probe Tip Diameter: 8 mm (0.31 in)

System Type: 3300 XL 8 mm Proximity Probe System

Measurement Range: 2.0 mm (80 mil) linear range

Output Sensitivity: 7.87 V/mm (200 mV/mil) nominal

Cable Length: 5 ft (1.5 m)

Impedance: 75 Ω coaxial

Thread Type: M10 × 1.0

Operating Temperature: –35 °C to +120 °C (–31 °F to +248 °F)

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's (APl)670 standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 xL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5.This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.
