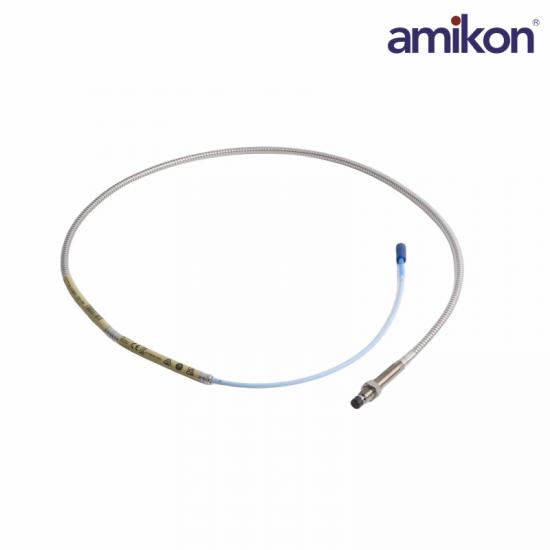

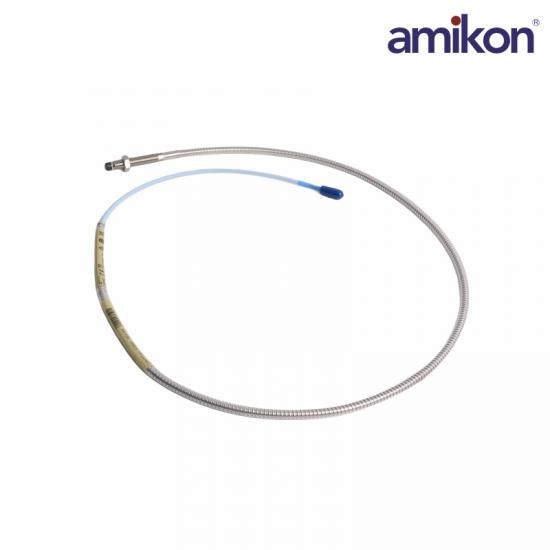

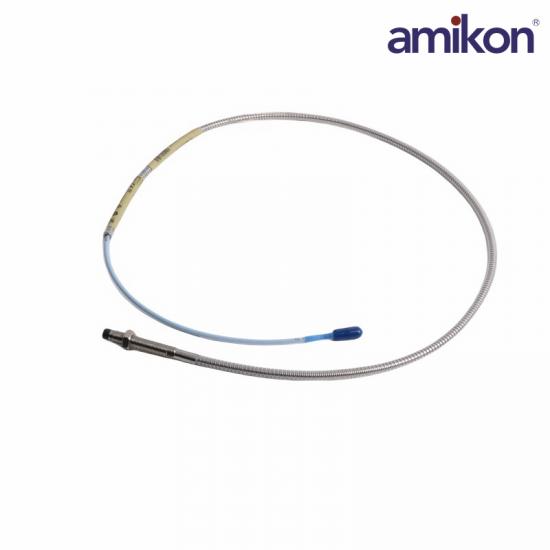

Product Model: 330102-00-40-50-02-00

Series: 3300 XL Proximity Transducer System

Probe Type: Non-contact eddy current proximity probe

Length: 40 mm (probe tip to connector)

Thread Size: M10 x 1.0

Cable Length: 5 meters (50 = 5.0 m)

Connector Type: Click-type coaxial connector

Target Material: 4140 steel (measured with standard calibration)

Linear Range: 2 mm (80 mils) typical

Sensitivity: 7.87 V/mm (200 mV/mil)

Operating: −35°C to +177°C (−31°F to +350°F)

Storage: −40°C to +200°C (−40°F to +392°F)

The Bently Nevada 330102-00-40-50-02-00 Proximity Probe is a high-performance transducer designed for precise and reliable vibration and displacement measurements in industrial machinery. It is part of the 3300 XL series, known for superior stability, extended linear range, and high resistance to electrical noise and harsh environmental conditions. This probe works seamlessly with Bently Nevada’s proximity sensor systems, providing accurate shaft vibration and position data for condition monitoring and predictive maintenance applications.
