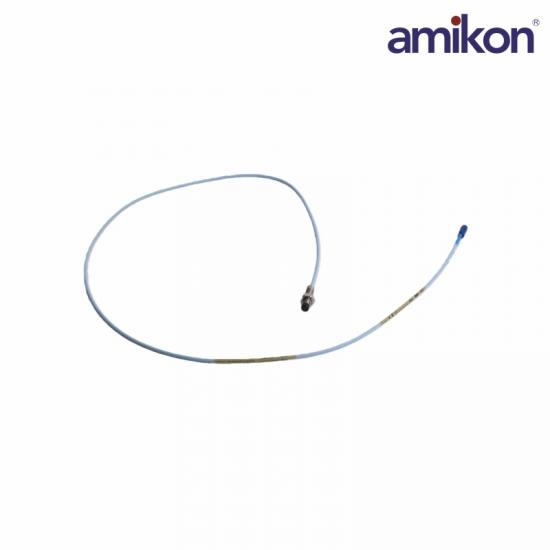

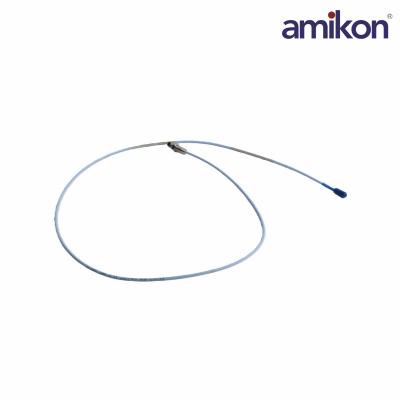

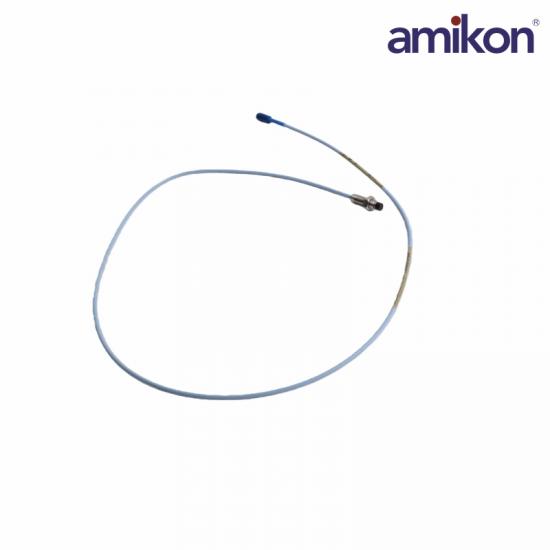

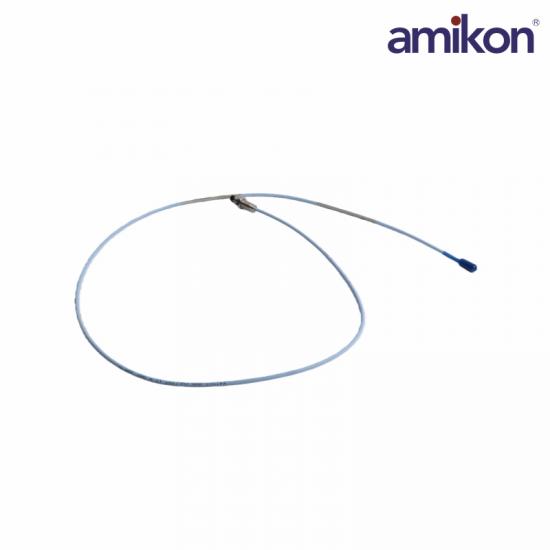

Bently Nevada 330101-00-43-10-02-05 3300 XL 8 mm Proximity Probe

330101-00-43-10-02-05
330101-00-43-10-02-05
330101-00-43-10-02-05

Bently Nevada 330101-00-43-10-02-05 3300 XL 8 mm Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL Proximity Transducer System

330101-00-43-10-02-05

3300 XL 8 mm Proximity Probe

MANUFACTURERBently Nevada
MODEL330101-00-43-10-02-05
PART NUMBER330101-00-43-10-02-05
PRODUCT TYPE3300 XL 8 mm Proximity Probe
SYSTEM FAMILY3300 XL Proximity Transducer System
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330101-00-43-10-02-05

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Bently Nevada

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Bently Nevada 3300 XL Proximity Transducer System

330101-00-43-10-02-05

Price and Availability Inquiry

The Bently Nevada 330101-00-43-10-02-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF-2A mounting, an unarmored probe lead, a 1.0 m (3.3 ft) total probe length and miniature coaxial clickloc, no connector protector.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 330101-00-43-10-02-05 and required quantity in your inquiry.

Bently Nevada 330101-00-43-10-02-05

Technical Specifications

Official order-code, mechanical, interface, performance and environmental data for this 3300 XL 8 mm probe variant.

01Product IdentityExact probe identification
ManufacturerBently Nevada
Order number330101-00-43-10-02-05
Product designation3300 XL 8 mm Proximity Probe
Product family3300 XL Proximity Transducer System
02Mechanical ConfigurationOrder-code dimensions and construction
Mounting thread3/8-24 UNF-2A
Cable armorWithout armor
Unthreaded length0.0 in
Overall case length4.3 in
03Cable & InterfaceProbe lead and connection data
Total probe length1.0 m (3.3 ft)
ConnectorMiniature coaxial ClickLoc, no connector protector
Approval optionCSA, ATEX, IECEx approvals
Cable construction75 Ω triaxial, FEP-insulated standard cable
04Performance & Environment3300 XL system-level ratings
Linear range2 mm (80 mils), approx. 0.25–2.3 mm
Nominal scale factor7.87 V/mm (200 mV/mil)
Frequency response0–10 kHz, +0/−3 dB
Probe temperature−52 to +177 °C (standard probe)

Bently Nevada 330101-00-43-10-02-05 Product Support

Frequently Asked Questions

System compatibility, target selection, installation and approval guidance for 330101-00-43-10-02-05.

01

Which dimensions identify the 330101-00-43-10-02-05 mechanical variant?

This variant uses a 4.3 in overall case, 0.0 in unthreaded length, 3/8-24 UNF-2A mounting and a 1.0 m (3.3 ft) total probe length without armor.

02

How should the 1.0 m length be matched to the measurement system?

A 1 m probe can be used as the published 1 m probe-only system. If an extension cable is used, match the calibrated overall cable length to the selected 3300 XL Proximitor Sensor.

03

What does the 02 connector option mean for installation?

It provides the miniature coaxial ClickLoc connector on standard cable without a connector protector. Protect the joint from impact, contamination and cable strain in the installed location.

04

What mounting limit matters for the deeper 4.3 in case?

The case length provides reach, but it does not increase allowable thread engagement. For the 3/8-24 case, keep engagement at or below 0.563 in and confirm target clearance throughout machine movement.

05

Which target and shaft dimensions support published performance?

The datasheet specifies a 15.2 mm minimum flat target, a 50.8 mm minimum shaft diameter and a 76.2 mm recommended minimum shaft diameter. Smaller shafts can change the scale factor.

06

Which performance values should be recorded during commissioning?

Record the installed gap and output near the recommended 1.27 mm and approximately -9 Vdc point, then verify the 2 mm linear range, nominal 7.87 V/mm scale factor and 0 to 10 kHz response for the complete system.

07

What approval and order-code details should be confirmed?

The final 05 code is the CSA, ATEX and IECEx approval option. Include the full model 330101-00-43-10-02-05, quantity, 4.3 in case, 1.0 m length and unprotected ClickLoc requirement in the order.
