Bently Nevada 3300 XL Proximity Transducer System

330101-00-50-10-02-05

Price and Availability Inquiry

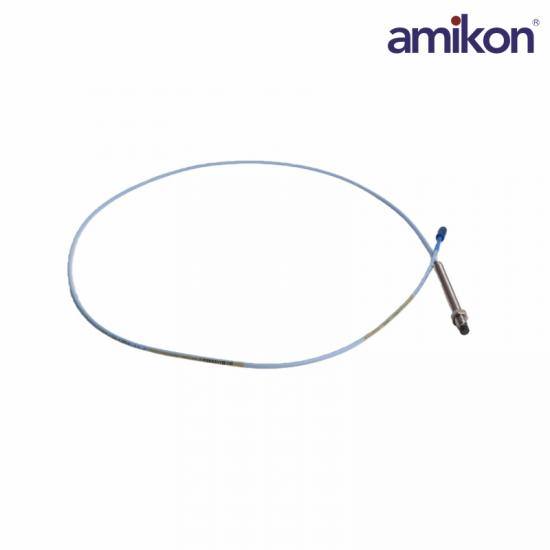

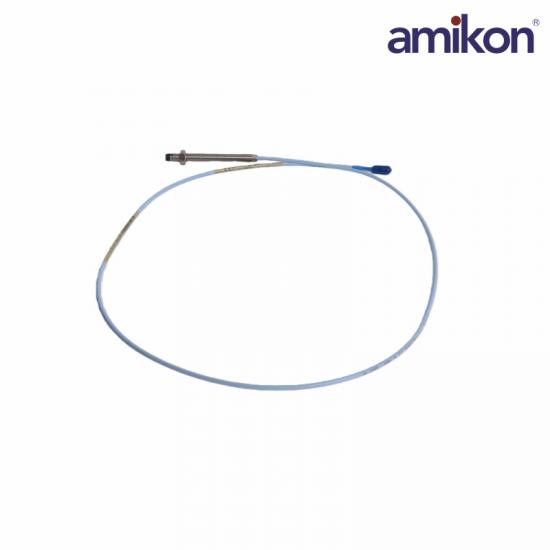

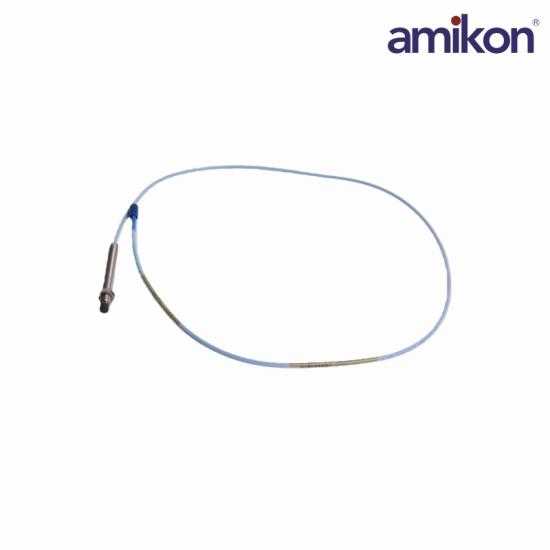

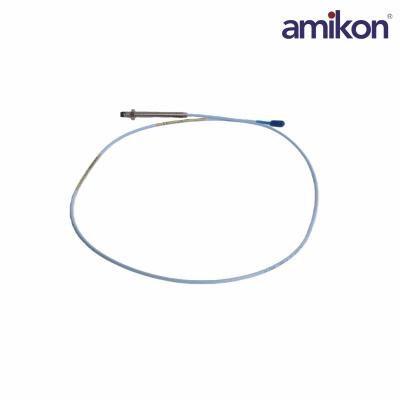

The Bently Nevada 330101-00-50-10-02-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF-2A mounting, an unarmored probe lead, a 1.0 m (3.3 ft) total probe length and miniature coaxial clickloc, no connector protector.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330101-00-50-10-02-05 and required quantity in your inquiry.

Bently Nevada 330101-00-50-10-02-05

Technical Specifications

Official order-code, mechanical, interface, performance and environmental data for this 3300 XL 8 mm probe variant.

01Product IdentityExact probe identification

ManufacturerBently Nevada

Order number330101-00-50-10-02-05

Product designation3300 XL 8 mm Proximity Probe

Product family3300 XL Proximity Transducer System

02Mechanical ConfigurationOrder-code dimensions and construction

Mounting thread3/8-24 UNF-2A

Cable armorWithout armor

Unthreaded length0.0 in

Overall case length5.0 in

03Cable & InterfaceProbe lead and connection data

Total probe length1.0 m (3.3 ft)

ConnectorMiniature coaxial ClickLoc, no connector protector

Approval optionCSA, ATEX, IECEx approvals

Cable construction75 Ω triaxial, FEP-insulated standard cable

04Performance & Environment3300 XL system-level ratings

Linear range2 mm (80 mils), approx. 0.25–2.3 mm

Nominal scale factor7.87 V/mm (200 mV/mil)

Frequency response0–10 kHz, +0/−3 dB

Probe temperature−52 to +177 °C (standard probe)

Bently Nevada 330101-00-50-10-02-05 Product Support

Frequently Asked Questions

Long-case application, system migration, cable routing and ordering guidance for 330101-00-50-10-02-05.

Why would an installation use the 5.0 in case version?

The 5.0 in overall case provides additional mechanical reach while retaining a 3/8-24 UNF-2A thread, 0.0 in unthreaded length and a 1.0 m total probe length. Verify the actual bracket depth and target location before selection.

Which clearances must be verified for the long threaded case?

Confirm the full insertion path, target clearance and access for adjustment. The official maximum thread engagement remains 0.563 in for the 3/8-24 case, so the mounting structure must not grip excessive thread length.

How should the 1.0 m unarmored cable be protected?

Route the lead away from sharp edges and moving parts, maintain a minimum 25.4 mm bend radius and add external support near the ClickLoc connection because the 02 option has no connector protector.

What is required when migrating from an older 3300 installation?

3300 XL 8 mm components can be electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when the cable bend-radius limit is observed. Confirm probe type, extension length and Proximitor Sensor calibration as one system before migration.

Which material and temperature limits apply to the standard probe?

The probe tip is PPS, the case is AISI 303 or 304 stainless steel and the standard probe operating and storage range is -52 to +177 degrees C. Application media and sealing requirements must be reviewed separately.

How can adjacent probes be arranged to limit cross-talk?

For probes gapped near the center of the linear range, the datasheet recommends approximately 40 mm minimum tip separation for axial measurements and 38 mm for radial-vibration measurements to keep cross-talk low.

Which configuration details should be retained in maintenance records?

Record the exact model 330101-00-50-10-02-05, 5.0 in case, 1.0 m lead, no armor, unprotected ClickLoc connector, 05 approval option, installed gap and matched Proximitor Sensor system length.
