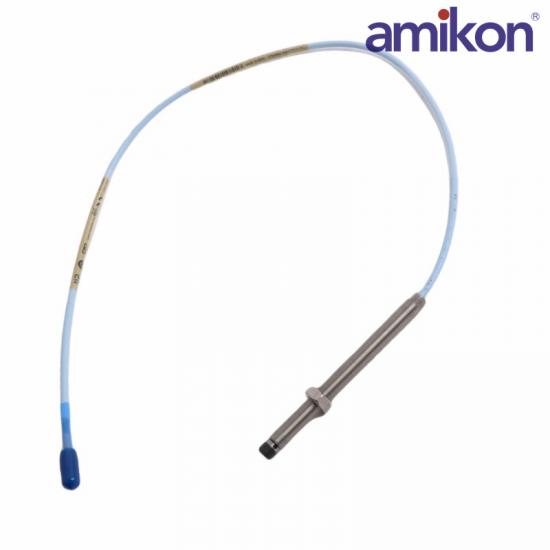

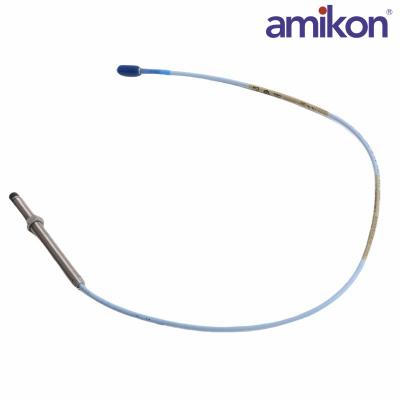

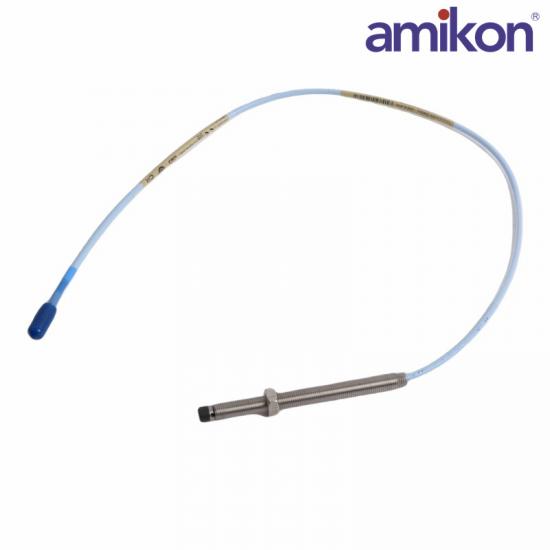

The Bently Nevada 330101-00-45-10-12-CN is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe works together with a compatible extension cable and Proximitor® Sensor to provide non-contact measurement of the distance between the probe tip and a conductive target surface.

The 3300 XL 8 mm Transducer System produces an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. This operating principle enables the system to measure both static values, such as position, and dynamic values, such as vibration, using the same proximity measurement system.

The system is primarily intended for vibration and position measurements on fluid-film bearing machines. It can also support Keyphasor® reference and speed measurements, providing multiple measurement functions within rotating machinery monitoring applications.

Frequently Asked Questions

Is the cable on the 330101-00-45-10-12-CN armored?

No. The 330101 base series represents standard non-armored cables. Armored versions use the 330102 series.

Can this probe output standard signals (like 4-20mA) by itself?

No. It is a passive sensor that must be connected to a 3300 XL Proximitor Sensor to output a voltage signal.

What target material is this 8mm probe calibrated for by default?

It is factory-calibrated for AISI 4140 steel. Measuring other metals will affect the scale factor and accuracy.

What is the standard scale factor of the complete system?

The scale factor is 7.87 V/mm (200 mV/mil) when paired with the correct 3300 XL Proximitor and target material.

Product Applications

Oil and Gas (Petrochemical Plants): Large centrifugal compressors and large pumps for oil refineries, ethylene plants, and oil pipelines.

Power Industry (Power Plants): Steam turbine generator sets and boiler feed pumps for thermal power plants, hydropower plants, and nuclear power plants.

Iron and Metallurgy (Heavy Industry Plants): Large blowers, blast furnace gas compressors, continuous casting machines, and main drive systems for large rolling mills.

Chemicals and Fertilizers (Chemical Plants): Large synthetic ammonia and urea compressors, and various high-speed centrifuges.
