The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperaturestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor Sensor without the need for individual component matching orbench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatibleand interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer systemcomponents4. This includes the 3300 5 mm probe, which is used when an 8 mm

probe is too large for the available mounting space5.6

Frequently Asked Questions

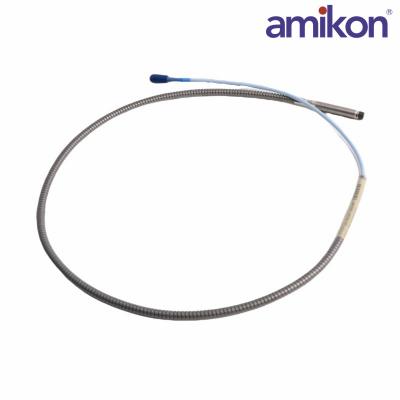

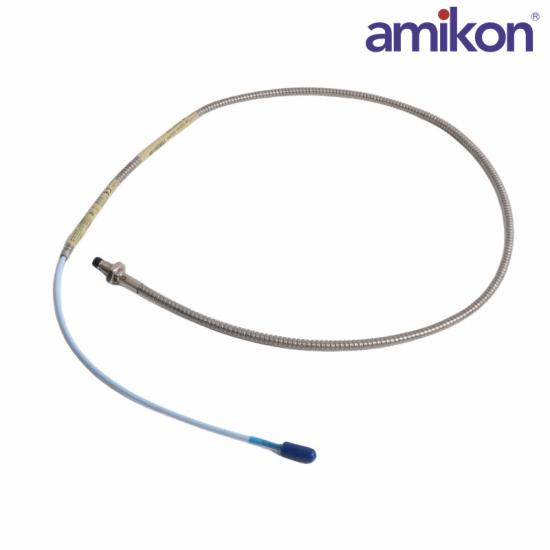

Q : What does the base part number "330104" represent?

A: It specifies an M10x1 metric thread proximity probe with a reverse mount configuration.

Q : What does the "-10" option signify for the cable?

A: It means the total cable length is 1.0 meter (approx. 3.3 feet).

Q : What is the linear range of this 8mm probe system?

A: It provides a 2.0 mm (80 mils) linear measuring range.

Q : What is the standard scale factor of the 3300 XL 8mm system?

A: The standard scale factor is 7.87 V/mm (200 mV/mil).

Product Applications

Power Industry: Monitoring of shaft vibration and differential expansion of steam turbine generator sets in thermal power plants and nuclear power plants.

Petrochemical Industry: Condition monitoring and fault diagnosis of large centrifugal compressors, large pumps, fans, and expanders.

Metallurgy and Mining: Operational protection of heavy rotating equipment such as blowers and blast furnace gas recovery turbines (TRTs).
