The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate in dividual components.

Frequently Asked Questions

What is the thread type of this probe?

It features a standard metric M10 x 1 thread.

What is the sensor diameter and target area requirement?

It has an 8mm tip diameter. The minimum target tip diameter on the observed shaft must be at least 15.2 mm (0.6 in) to avoid edge effects.

What is the linear range of this 8mm sensor?

It has a standard linear range of 2.0 mm (80 mils), typically starting at 0.25 mm (10 mils) out to 2.25 mm (90 mils) from the target.

Can I connect this 1.5-meter probe directly to a 5-meter Proximitor?

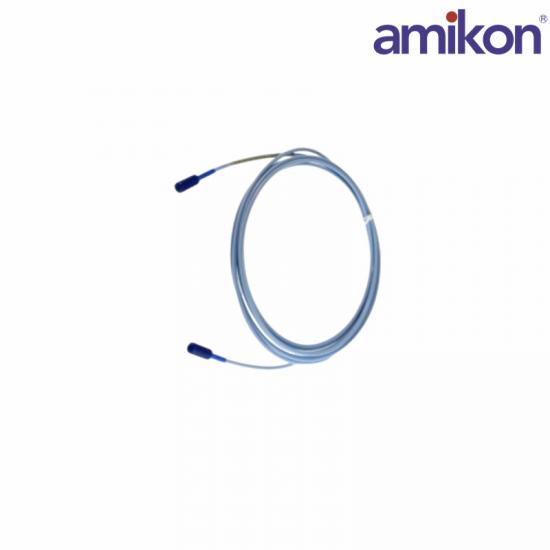

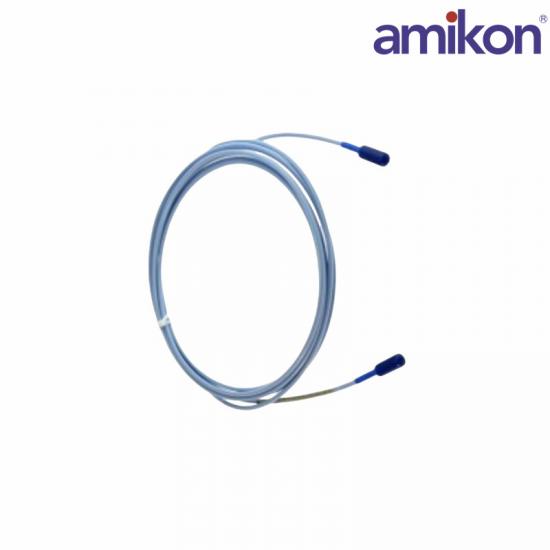

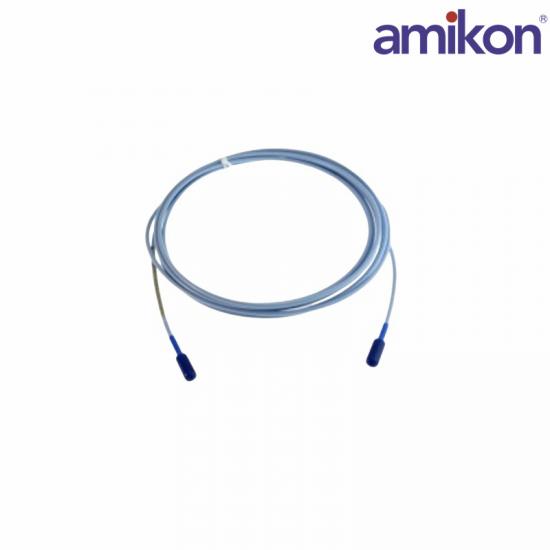

No. To create a 5-meter system, you must pair this 1.5-meter probe with a 3.5-meter extension cable.

Product Applications

Power Generation: In-house ultra-large high-speed rotary system with very high demand, please explore the most typical power usage scene.

Oil & Gas / Petrochemical: petrochemical industry and large-scale flammable and explosive, the continuous engineering process under the high-speed environment, the design process directly to the factory safety.

Metallurgy:Metallurgy is used for a long period of time in high temperature, heavy duty, and in poor environment.

Marine & Heavy Machinery: The main engine for large ocean-going ships, fuel engine thrust, and motor vehicle system.
