The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 xL 8 mm proximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too large for the available mounting space6,7.

Frequently Asked Questions

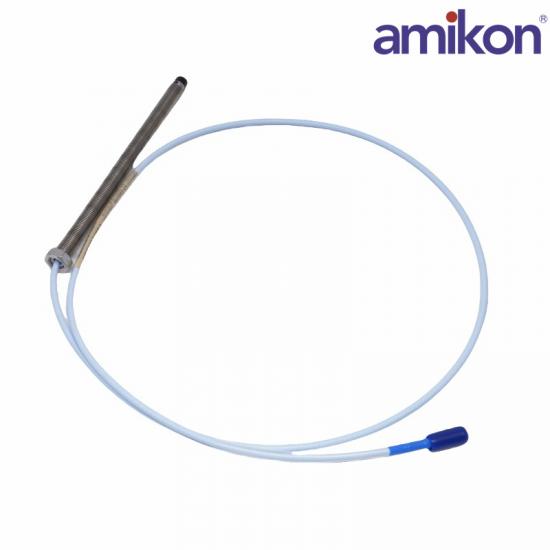

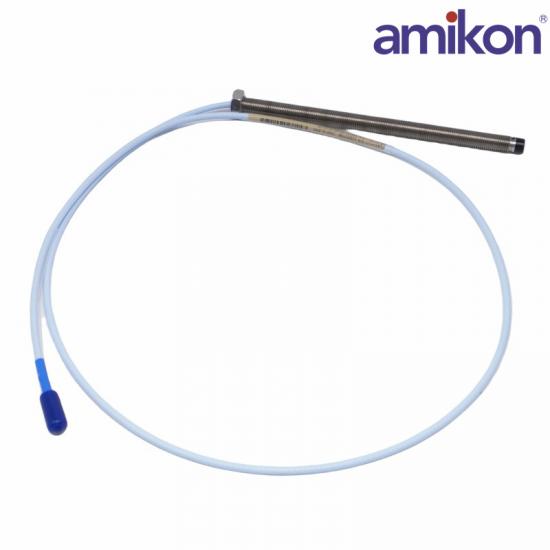

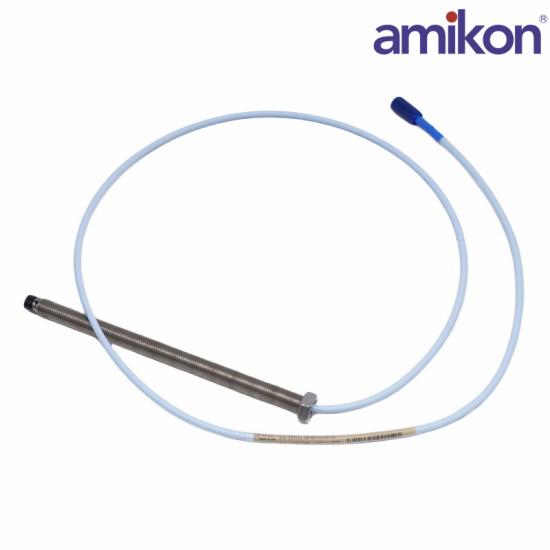

Q: What is the Bently Nevada 330101-00-72-10-12-05?

It is a 3300 XL 8mm non-contacting eddy current proximity probe used for machinery vibration and axial displacement monitoring.

What is the standard output sensitivity of the complete transducer system?

The standard sensitivity is 7.87 V/mm (200 mV/mil) when measuring a standard AISI 4140 steel target.

Q: What material is the probe tip made of, and what is its temperature limit?

The tip uses Polyphenylene Sulfide (PPS). The probe and its integrated cable operate between -51 °C and +177 °C (-60 °F to +350 °F).

Q: What does it mean if the Proximitor sensor output is exactly 0 VDC?

This indicates a lack of power to the Proximitor (requires -24 VDC), a shorted extension cable, or a completely disconnected probe.

Product Applications

Electric power operations: Use of electric cars, water cars, electric cars, and mobile cars.

Oil and natural gas: Uses a large separate-type compressor, a screwdriver and a heavy screwdriver in the middle of the natural gas pipe.

Petroleum chemical industry: Utilization equipment, synthetic gas equipment, and various high-temperature and high-temperature chemical industries.

Metallurgy and Cishan: Uses a large drum wind machine, a transparent machine, and a machine-like box like a metal machine.
