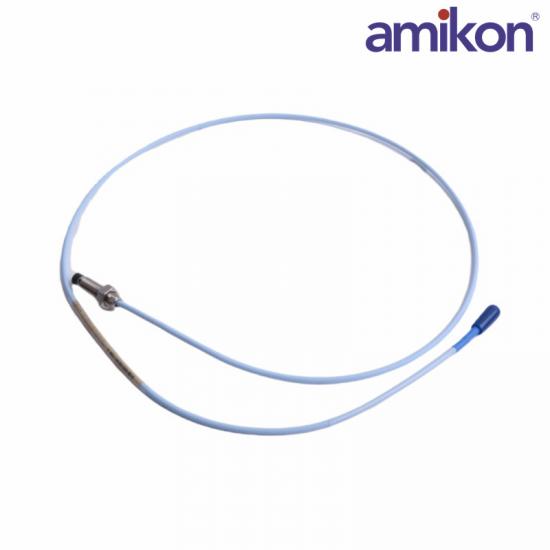

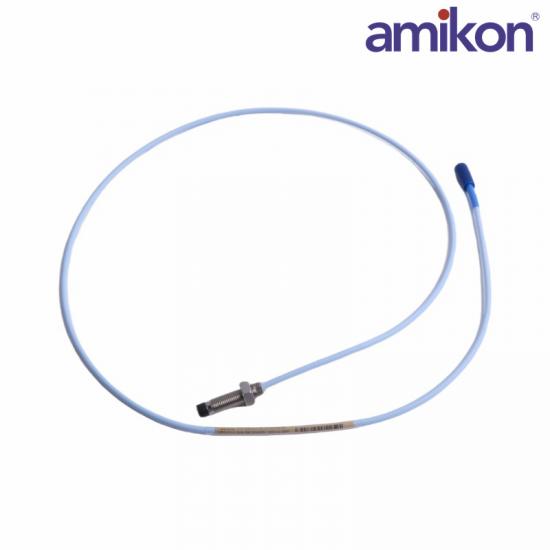

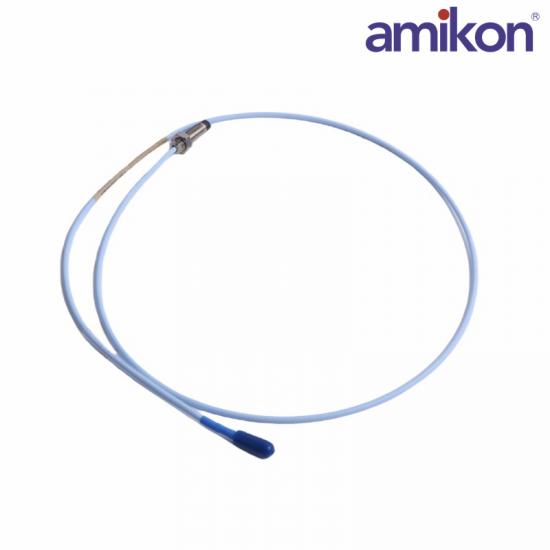

The Bently Nevada 330101-00-79-10-02-05 is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe operates together with a compatible extension cable and Proximitor® Sensor to provide non-contact measurement between the probe tip and a conductive target surface.

The 3300 XL 8 mm Transducer System provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. Changes in the physical gap between the probe and target are therefore represented by corresponding changes in the system's electrical output.

The system is capable of measuring both static and dynamic values. Static measurement is used for position, while dynamic measurement is used for vibration, allowing the same transducer system to support multiple rotating machinery measurement requirements.

Primary applications include vibration and position measurements on fluid-film bearing machines. The system can also be used for Keyphasor® reference and speed measurements, providing additional measurement functions within machinery monitoring applications.

Frequently Asked Questions

Q : What exactly is the Bently Nevada 330101-00-79-10-02-05?

It is a 3300 XL 8mm eddy current proximity probe used for non-contact machinery vibration and displacement measurements.

Q : What does the "330101" prefix signify?

It identifies the base model as a 3300 XL 8mm proximity probe with standard 3/8-24 UNF English threads.

Q : What does the "-79" option represent?

It specifies an Overall Case Length of 7.9 inches.

Q : What is the scale factor/sensitivity of this probe when paired with its driver?

The standard system sensitivity is 7.87 V/mm (200 mV/mil) when measuring AISI 4140 steel.

Product Applications

Oil and Gas: Used for axial displacement and radial vibration monitoring of large compressors, gas turbines, and oil pumps in offshore drilling platforms and refineries.

Power Industry: Applied to steam turbine generator sets, hydro turbine generators, water pumps, and blowers in thermal power plants, nuclear power plants, and hydropower plants to prevent major accidents caused by misalignment of couplings or bearing wear.

Chemical and Petrochemical Industries: Monitors the mechanical health status of high-risk core rotating equipment such as ethylene compressors, high-pressure reciprocating pumps, and fans.

Metallurgy and Mining: Used for real-time vibration protection of heavy-duty equipment such as blast furnace blowers, large rolling mills, and crushers in ore dressing plants.

Marine Propulsion: Monitors the operating status of the main propulsion shaft system and steam turbines of large ships.
