The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

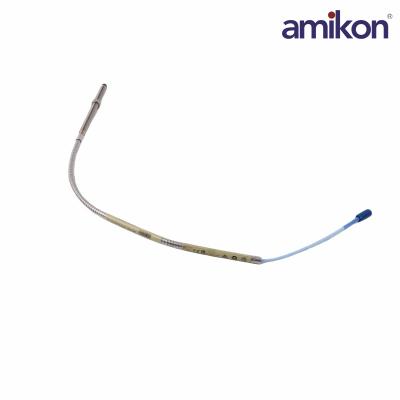

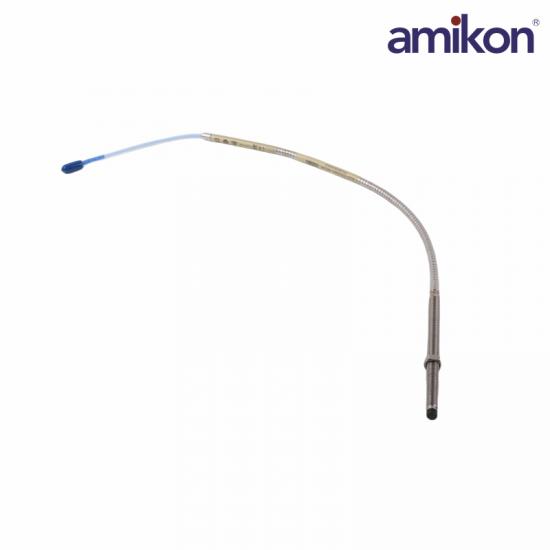

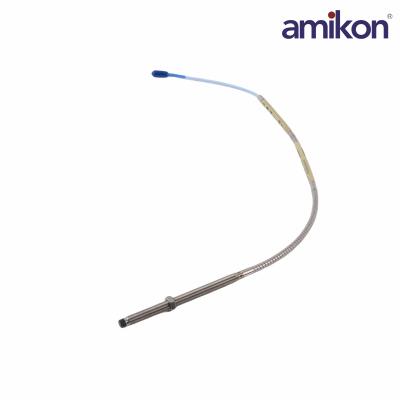

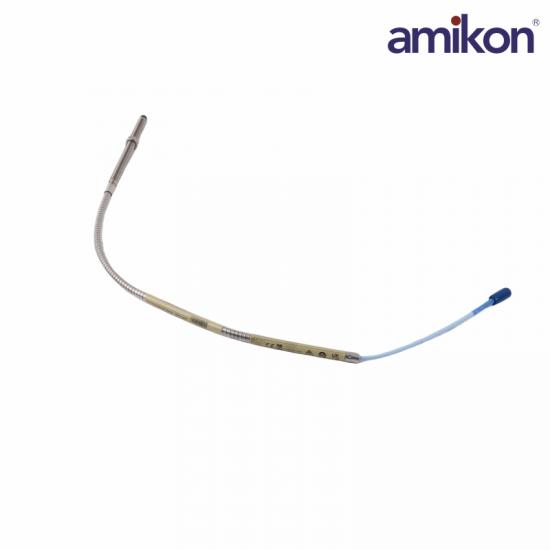

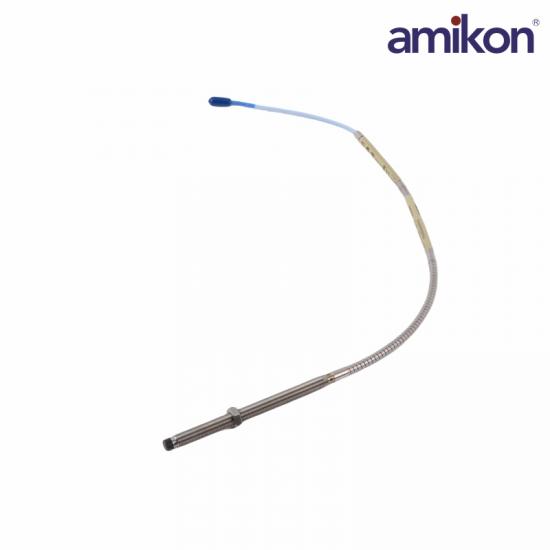

Q1: What is the Bently Nevada 330102-00-13-90-02-00?

A1: It is a 3300 XL 8 mm proximity probe designed for precise non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What is the 330102-00-13-90-02-00 probe tip diameter?

A2: The probe features an 8 mm tip diameter, suitable for standard industrial monitoring applications.

Q3: What is the 330102-00-13-90-02-00 linear measurement range?

A3: The probe typically offers a linear range of 2.0 mm (80 mils), ensuring accurate displacement measurement within this range.

Q4: What is the 330102-00-13-90-02-00 operating temperature range?

A4: It operates within a wide temperature range of −40°C to +177°C (−40°F to +350°F), making it suitable for harsh environments.

Q5: What is the 330102-00-13-90-02-00 sensitivity of this probe?

A5: The sensitivity is 7.87 V/mm (200 mV/mil), providing high precision in detecting small shaft movements.

Product Applications

Oil & Gas: Applied for displacement, vibration and clearance monitoring in rotating machinery.

Power Generation: Used in key equipment such as steam turbines, water turbines and generators to monitor the vibration and position of the rotor shaft.

Chemical & Pharmaceutical: Applied for protective monitoring of rotating equipment such as high-speed centrifuges and compressors.

Metallurgy & Steel: Used for vibration detection of large-scale fans, motors and other metallurgical equipment.
