Manufacturer : Bently Nevada

Product No. : 330102-00-08-50-02-CN

Product Type : Proximity Probes

Made in U.S.A

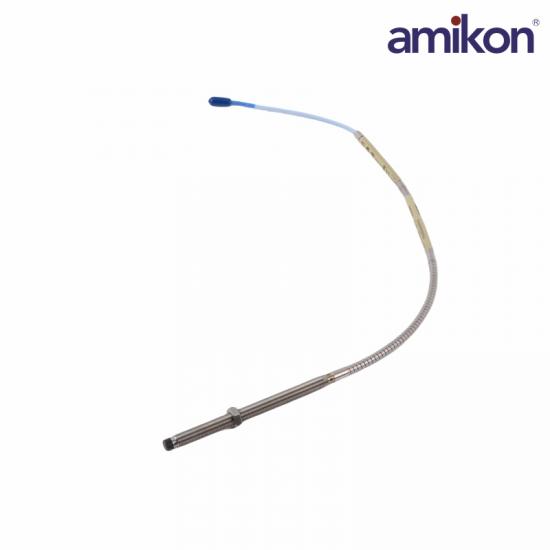

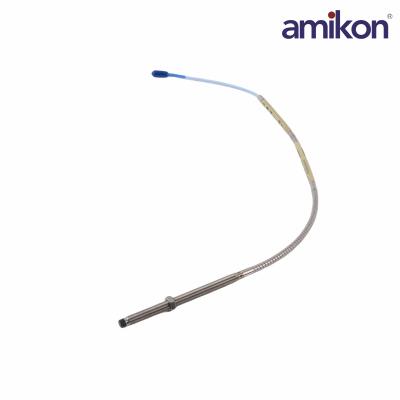

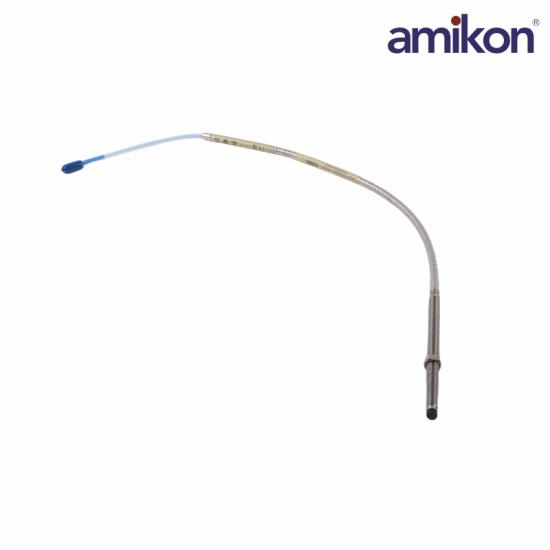

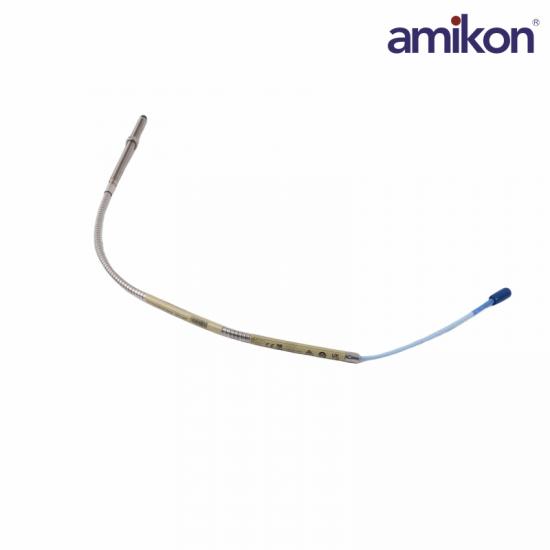

3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor

Unthreaded Length Option : 00 = 0 in

Overall Case Length Option : 40 = 4.0 in

Total Length Option : 50 = 5.0 metres (16.4 feet)

Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable

Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

Weight : 0.323 Kg

Shipping Weight : 1.5 Kg

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe

One 3300 XL extension cable

One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Frequently Asked Questions

Q1: What is the Bently Nevada 330102-00-08-50-02-CN?

A1: It is a proximity probe from the 3300 XL series, designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What does the “08” option represent?

A2: “08” indicates a housing length of 0.8 inches.

Q3: What does the “50” option represent?

A3: “50” refers to a total cable length of 5.0 meters (approximately 16.4 feet).

Q4: What does the “02” option indicate?

A4: “02” typically denotes a specific configuration or option within the probe series, depending on system requirements.

Q5: What is the operating temperature range?

A5: The probe operates within a temperature range of −35°C to +177°C (−31°F to +350°F), suitable for high-temperature environments.

Product Applications

Oil and petrochemicals: Monitoring the shaft vibration and axial displacement of compressors, steam turbines and pumps.

Power industry: Condition monitoring of large-scale power plant units.

Municipal engineering: Maintenance of large water pumps and power systems.
