The system provides an output voltage that is directly proportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

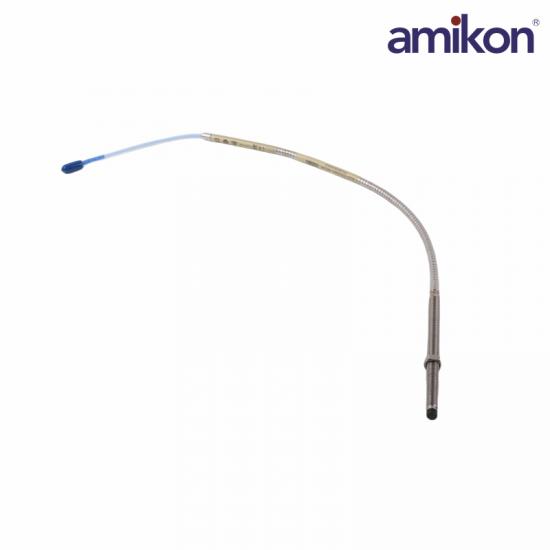

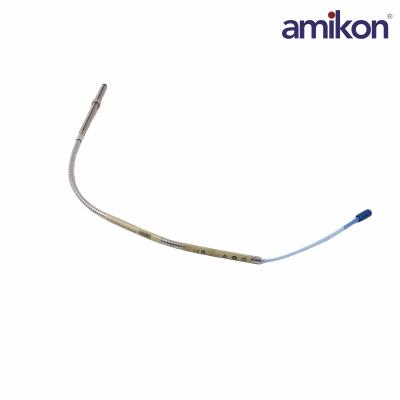

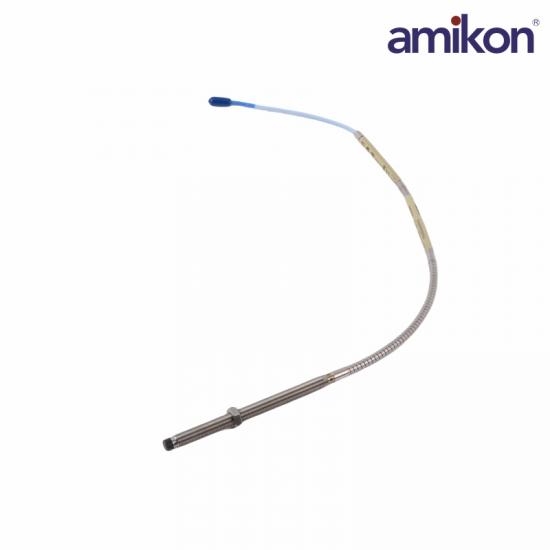

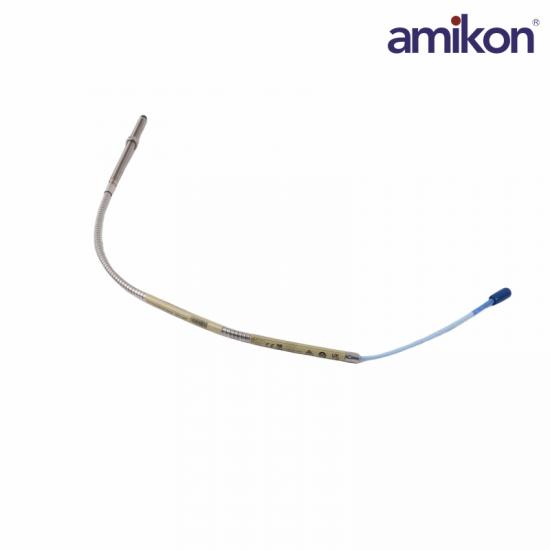

The 3300 XL 8 mm system delivers the most advance dperformance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 xL 8 mmproximity transducer systems provide this level of performance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

What is the standard gap voltage setting?

Set the physical gap to achieve approximately -10 VDC at the Proximitor output, which represents the midpoint of the linear range.

How do I verify if the system is working?

Measure the DC voltage between the "OUT" and "COM" terminals on the Proximitor sensor using a digital multimeter.

What is the linear range of an 8 mm probe?

The system offers a linear measurement range of 2.0 mm (80 mils), starting at a gap of 0.25 mm (10 mils) up to 2.25 mm (90 mils).

What is the standard scale factor for calibration?

The system has a standard scale factor of 7.87 V/mm (200 mV/mil) when measuring AISI 4140 steel.

Product Applications

Power and Nuclear Power: Used for monitoring shaft vibration and axial displacement in large steam turbines and generator sets.

Petrochemical and Chemical Industries: Installed on critical equipment such as compressors and centrifugal pumps in high-temperature and high-pressure environments.

Iron and Steel Metallurgy: Monitors the mechanical operating status of heavy-duty fans, blowers, and large drive shafts.

Mining and Paper Manufacturing: Used for tracking the bearing status of continuously operating, high-load production equipment.
