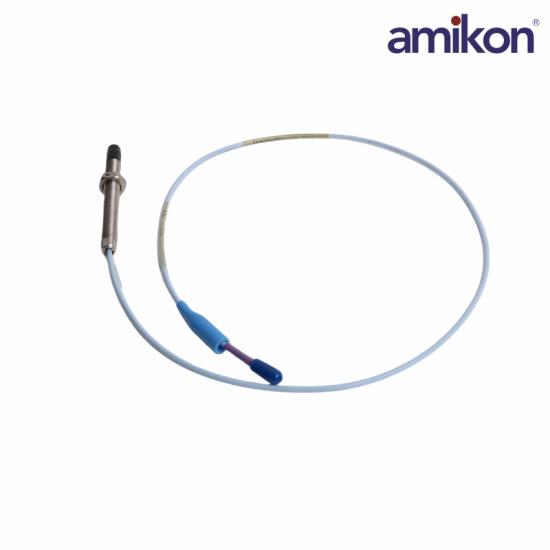

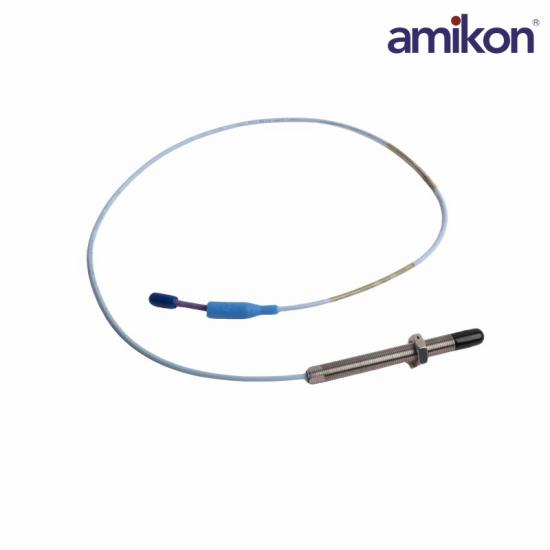

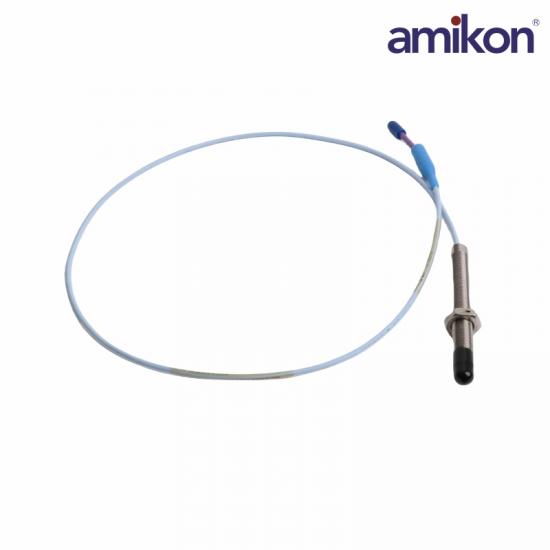

The 3300 XL 11 mm probe comes in varyingprobe case configurations, including armoredand unarmored 1/2-20, 5/g -18, M14 X 1.5 and M16X1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3/g-24or Mi0 X 1threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place, preventing the connection frombecoming loose. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. The probe cable.

Frequently Asked Questions

What is the Bently Nevada 330701-00-050-10-12-05?

It is a 3300 XL series 11mm eddy current proximity probe used for non-contact vibration and displacement measurement in industrial rotating machinery.

What is the measurement range of this 11mm probe?

It offers a linear range of 4.0 mm (160 mils), which is double the range of a standard 8mm probe.

What is the standard scale factor of this system?

The system scale factor is 3.94 V/mm (100 mV/mil) when calibrated against AISI 4140 steel.

What is the minimum target size required for this probe?

The target material must be at least 30.5 mm (1.2 inches) in diameter to avoid edge-effect errors.

Product Applications

Oil & Gas/Petrochemical Plants: Large compressors, high-power pumps, and industrial gas turbines used in oil refineries and natural gas pipelines.

Power Generation: Large turbines and generator sets for thermal power plants, nuclear power plants, and hydroelectric power plants.

Metallurgy & Steel Plants: Main drive systems for blast furnace blower buildings and large rolling mills.

Air Separation/Chemical Plants: Large air separation compressors and chemical material transfer pumps for oxygen plants.
