Bently Nevada 330102-08-96-10-02-00 3300 XL 8 mm Armored Proximity Probe

Bently Nevada 330102-08-96-10-02-00 3300 XL 8 mm armored proximity probe
Bently Nevada 330102-08-96-10-02-00 3300 XL 8 mm armored proximity probe
Bently Nevada 330102-08-96-10-02-00 3300 XL 8 mm armored proximity probe

Bently Nevada 330102-08-96-10-02-00 3300 XL 8 mm Armored Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330102-08-96-10-02-00

3/8-24 UNF Armored Probe · 1.0 m Cable

CASE THREAD3/8-24 UNF-2A
UNTHREADED LENGTH0.8 in
OVERALL CASE LENGTH9.6 in
TOTAL PROBE LENGTH1.0 m (3.3 ft)
CONNECTORClickLoc · Standard Cable
APPROVALSNone · Code 00

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330102-08-96-10-02-00

  • Order(MOQ):

    1

  • Payment:

    T/T
Inquire Now

3300 XL 8 MM · ARMORED PROBE

330102-08-96-10-02-00

3300 XL 8 mm Armored Standard-Mount Proximity Probe

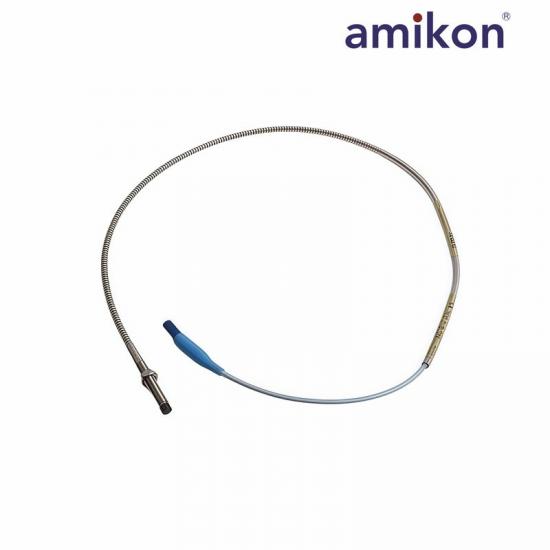

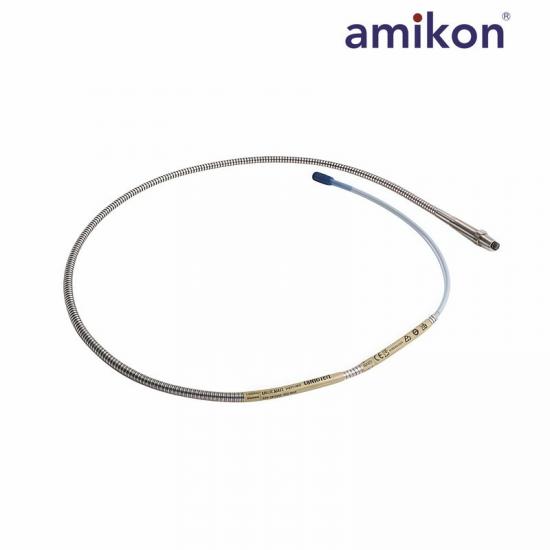

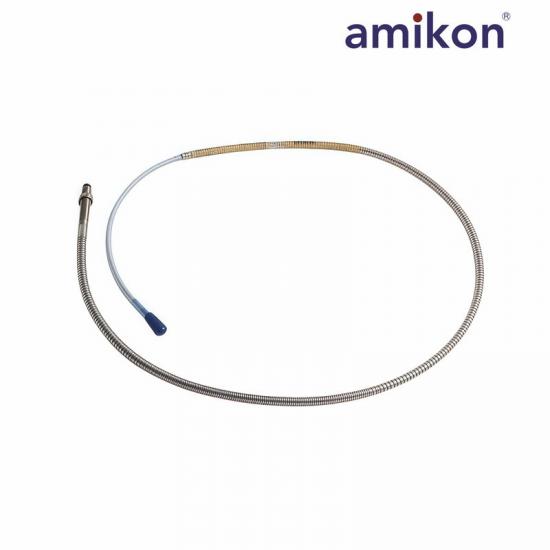

The 330102-08-96-10-02-00 is a Bently Nevada 330102 armored forward-mount probe for a 3300 XL 8 mm proximity transducer system. The ordered configuration has a 3/8-24 UNF-2A case, 0.8 in unthreaded length, 9.6 in overall case length, 1.0 m FEP-insulated triaxial probe cable, flexible stainless-steel armor, a miniature coaxial ClickLoc connector without a protector and approval code 00.

Model330102-08-96-10-02-00
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330102-08-96-10-02-00 and required quantity.

330102-08-96-10-02-00

Technical Specifications

Official Bently Nevada technical and ordering data organized for system matching, termination, installation and replacement review.

01
Product IdentityExact probe family and system performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330102-08-96-10-02-00
Base probe330102 armored forward-mount probe
Transducer family3300 XL 8 mm
Linear range2 mm (80 mils)
Scale factor, 1 m system7.87 V/mm (200 mV/mil) ±5%
Frequency response0 to 10 kHz, +0 / -3 dB
02
Cable & TerminationCable construction, connector and electrical checks
Integral probe cable1.0 m (3.3 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector option 02Miniature coaxial ClickLoc, no protector
Nominal 1.0 m probe resistance7.59 ±0.50 Ω
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
Connection tighteningFinger-tight until ClickLoc clicks
03
ConstructionProbe materials and exact mechanical configuration
Probe tip8.0 mm PPS
Probe case materialAISI 303 or 304 stainless steel
Case thread3/8-24 UNF-2A
Unthreaded length0.8 in
Overall case length9.6 in
ArmorFlexible AISI 302 or 304 SST with FEP outer jacket
Maximum tensile strength330 N (75 lbf), case to probe lead
04
Ordering & InstallationDecoded ordering fields and installation limits
Ordering structure330102-AA-BB-CC-DD-EE
Code 080.8 in unthreaded length
Code 969.6 in overall case length
Code 101.0 m total probe length
Code 02ClickLoc connector, standard cable, no protector
Approval code 00Agency approval not required
Matched system lengthDirect connection to 1 m Proximitor Sensor

330102-08-96-10-02-00 PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, armored-cable termination, installation, length-code and replacement checks for this exact 330102 configuration.

01

Which Proximitor Sensor is compatible with 330102-08-96-10-02-00?

Use a 3300 XL 8 mm Proximitor Sensor configured for a 1.0 m total system length. The complete system must retain the 3300 XL 8 mm probe and sensor family.

02

Does this 1.0 m armored probe require an extension cable?

No. A 1.0 m probe connects directly to the matching 1.0 m Proximitor Sensor; an extension cable would change the total electrical system length and must not be added.

03

What does the complete 08-96-10-02-00 ordering code specify?

It specifies 0.8 in unthreaded length, 9.6 in overall case length, 1.0 m total probe length, standard cable with a miniature coaxial ClickLoc connector and no protector, plus approval code 00.

04

How should the armored cable and ClickLoc connector be terminated?

Support the flexible stainless-steel armor, keep the cable above its 25.4 mm minimum bend radius, and finger-tighten the ClickLoc connection until it clicks. Do not exceed the 0.565 N·m connector torque.

05

What installation dimensions must be checked for this long 3/8-24 case?

Confirm the 3/8-24 UNF-2A mounting thread, 0.8 in unthreaded section and 9.6 in overall case length against the bracket depth and machine clearance. Secure the lock nut without twisting the armor or probe lead.

06

What performance should be checked after direct connection to the 1 m sensor?

Verify the 2 mm linear range, 7.87 V/mm scale factor with ±5% tolerance, 0 to 10 kHz response and approximately -9 Vdc radial gap at 1.27 mm on the complete 1 m system.

07

What must be confirmed before replacing 330102-08-96-10-02-00?

Match the full part number, armored 330102 construction, 3/8-24 thread, 0.8 in unthreaded length, 9.6 in case length, 1.0 m cable, option 02 ClickLoc termination, approval code 00 and the installed 1 m Proximitor Sensor.

Industrial Automation Parts

Popular Industrial Automation Models

Explore selected model references from the product manufacturer and other industrial automation brands.

Need a quotation?Send the complete model and required quantity to AMIKON.
PRODUCT FAMILYABB
PRODUCT FAMILYABB
PRODUCT FAMILYABB
PRODUCT FAMILYHONEYWELL
PRODUCT FAMILYHONEYWELL
PRODUCT FAMILYHONEYWELL
Request model availabilitySend the complete model and required quantity to AMIKON for quotation. WhatsApp: +86 18030132585 · Email: sales16@amikon.cn
International enquiriesShipping options and lead time are confirmed according to the destination and order details.
Hot Tags : 330102-08-96-10-02-00 Bently Nevada 330102 3300 XL 8 mm armored probe 1.0 m proximity probe 3/8-24 UNF probe ClickLoc standard cable
