Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm M10 Proximity Probe

Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm M10 proximity probe
Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm M10 proximity probe
Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm M10 proximity probe

Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm M10 Proximity Probe

✉  INQUIRE NOW

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330103-00-03-10-01-05

M10 × 1 · 30 mm Case · 1.0 m Cable

CASE THREADM10 × 1
UNTHREADED LENGTH0 mm
OVERALL CASE LENGTH30 mm
TOTAL PROBE LENGTH1.0 m (3.3 ft)
CONNECTORClickLoc · Protector Fitted
APPROVALSCSA · ATEX · IECEx

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330103-00-03-10-01-05
Inquire Now

3300 XL 8 MM · M10 × 1 STANDARD PROBE

330103-00-03-10-01-05

3300 XL 8 mm Metric Standard-Mount Proximity Probe

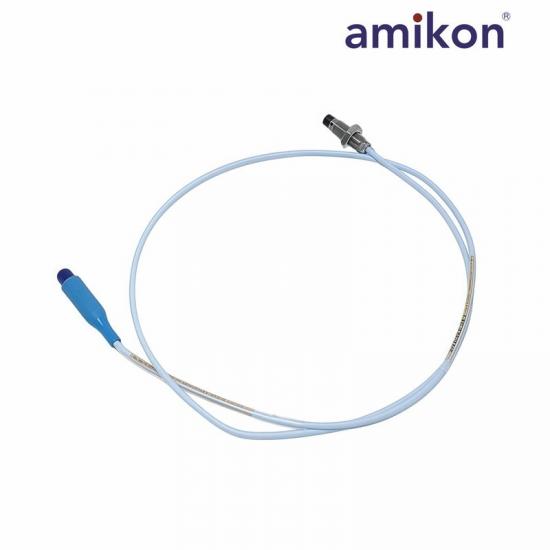

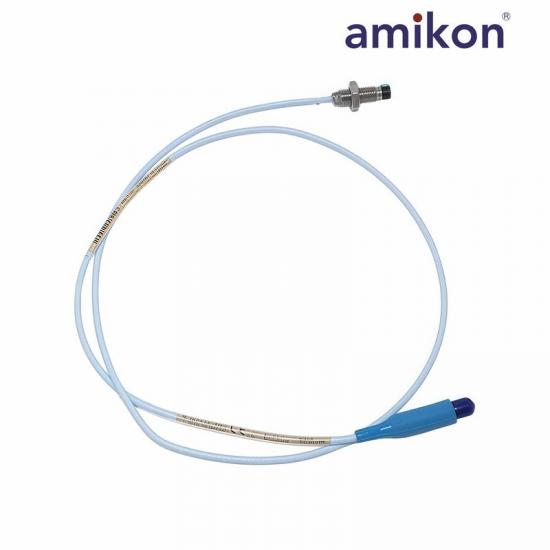

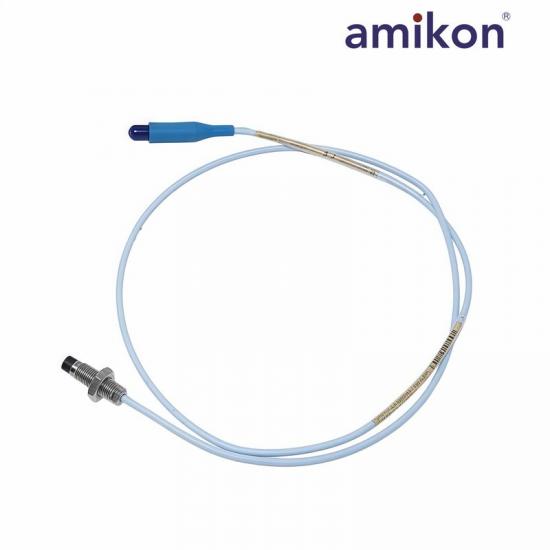

The 330103-00-03-10-01-05 is a Bently Nevada 330103 forward-mount probe for a 3300 XL 8 mm proximity transducer system. Its ordered configuration uses an M10 × 1 case without armor, 0 mm unthreaded length, 30 mm overall case length, 1.0 m standard FEP-insulated triaxial cable, a miniature coaxial ClickLoc connector with a fitted protector, and approval code 05 for CSA, ATEX and IECEx.

Model330103-00-03-10-01-05
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330103-00-03-10-01-05 and required quantity.

330103-00-03-10-01-05

Technical Specifications

Official Bently Nevada technical and ordering data organized for system matching, termination, installation and replacement review.

01
Product IdentityExact probe family and matched-system performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330103-00-03-10-01-05
Base probe330103 metric forward-mount probe
Transducer family3300 XL 8 mm
Linear range2 mm (80 mils)
Scale factor, 1 m system7.87 V/mm (200 mV/mil) ±5%
Frequency response0 to 10 kHz, +0 / -3 dB
02
Cable & TerminationIntegral cable, connector protection and electrical checks
Integral probe cable1.0 m (3.3 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector option 01Miniature coaxial ClickLoc with protector
Nominal 1.0 m probe resistance7.59 ±0.50 Ω
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
Connection tighteningFinger-tight until ClickLoc clicks
03
ConstructionProbe materials and exact metric mechanical configuration
Probe tip materialPolyphenylene sulfide (PPS)
Probe case materialAISI 303 or 304 stainless steel
Case threadM10 × 1
Unthreaded length0 mm
Overall case length30 mm
ArmorNot fitted; 330103 configuration
Maximum tensile strength330 N (75 lbf), case to probe lead
04
Ordering & InstallationDecoded ordering fields and installation limits
Ordering structure330103-AA-BB-CC-DD-EE
Code 000 mm unthreaded length
Code 0330 mm overall case length
Code 101.0 m total probe length
Code 01ClickLoc, standard cable, connector protector
Approval code 05CSA, ATEX and IECEx approvals
Matched system lengthDirect connection to 1 m Proximitor Sensor

330103-00-03-10-01-05 PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, protected-connector termination, metric installation, length-code, approval and replacement checks for this exact 330103 configuration.

01

Which Proximitor Sensor is compatible with 330103-00-03-10-01-05?

Use a 3300 XL 8 mm Proximitor Sensor configured for a 1.0 m total system length. Keep the probe and sensor within the 3300 XL 8 mm family.

02

Does this 1.0 m metric probe require an extension cable?

No. The 1.0 m probe connects directly to the matching 1.0 m Proximitor Sensor. Adding an extension cable would change the electrical system length.

03

What does the complete 00-03-10-01-05 length and option code specify?

It specifies 0 mm unthreaded length, 30 mm overall case length, 1.0 m total probe length, standard cable with a protected miniature coaxial ClickLoc connector, and approval option 05.

04

How should the ClickLoc connector and its protector be terminated?

Make the ClickLoc connection finger-tight until it clicks, keep the cable above its 25.4 mm minimum bend radius, then seat the fitted protector over the connection without exceeding 0.565 N·m connector torque.

05

What installation dimensions must be checked for this M10 probe?

Confirm an M10 × 1 mounting interface, a fully threaded 30 mm case, the available bracket depth and cable clearance. Maintain the probe gap while tightening the lock nut and do not twist the integral lead.

06

Which approval code is supplied with 330103-00-03-10-01-05?

The final code 05 designates the CSA, ATEX and IECEx approval option. Confirm that the complete installed system and site documentation meet the applicable hazardous-area requirements.

07

What must be confirmed before replacing 330103-00-03-10-01-05?

Match the complete part number, 330103 unarmored metric construction, M10 × 1 thread, 0 mm unthreaded length, 30 mm case, 1.0 m cable, option 01 protected ClickLoc termination, approval code 05 and the installed 1 m Proximitor Sensor.
