BENTLY NEVADA · 3300 XL 8 MM PROXIMITY SYSTEM

330103-00-05-50-02-CN

M10 × 1 · 50 mm Case · 5.0 m Cable

CASE THREADM10 × 1
UNTHREADED LENGTH0 mm
OVERALL CASE LENGTH50 mm
TOTAL PROBE LENGTH5.0 m (16.4 ft)
CONNECTORClickLoc · Standard Cable
AGENCY CODECN

INDUSTRIAL CONTROL SPARE PARTS PARTNER

20 Years of Experience in Industrial Control Supply

AMIKON supplies industrial control spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    330103-00-05-50-02-CN
Inquire Now

3300 XL 8 MM · M10 × 1 STANDARD PROBE

330103-00-05-50-02-CN

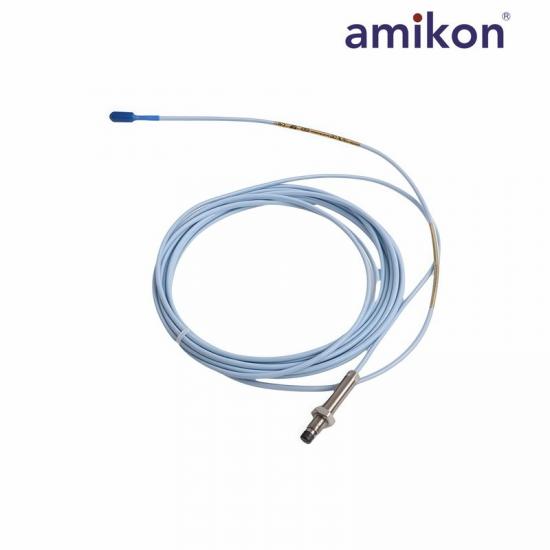

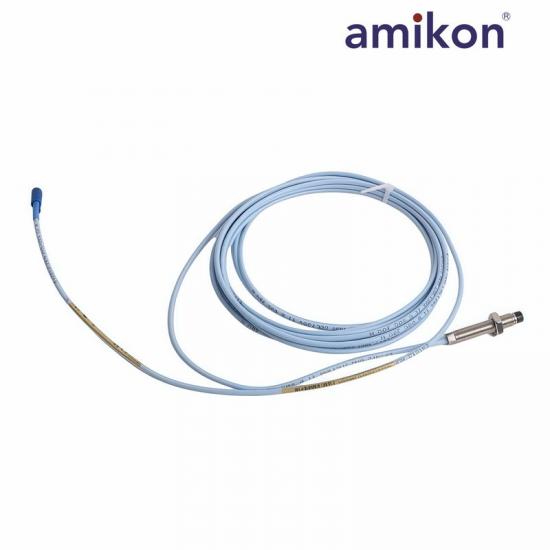

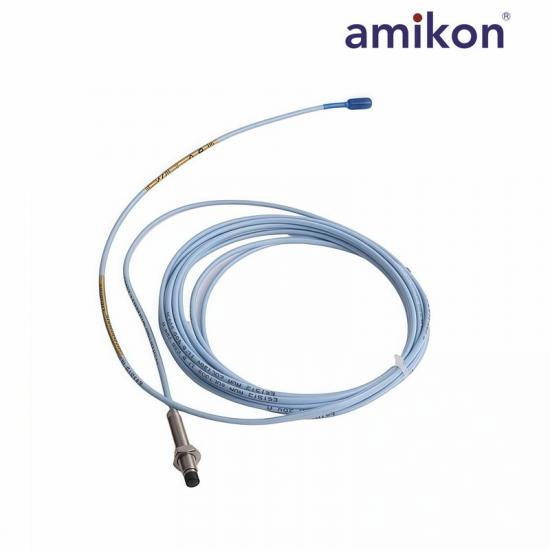

3300 XL 8 mm Metric Standard-Mount Proximity Probe

The 330103-00-05-50-02-CN is a Bently Nevada 330103 forward-mount probe for a 3300 XL 8 mm proximity transducer system. Its ordered configuration uses an M10 × 1 case without armor, 0 mm unthreaded length, 50 mm overall case length, 5.0 m standard FEP-insulated triaxial cable, a miniature coaxial ClickLoc connector without a factory-fitted protector, and the requested CN agency suffix.

Model330103-00-05-50-02-CN
Product TypeProximity Probe
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.

Your AMIKON Contact

MMapleSales Manager
WhatsApp+86 18030132585
Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 330103-00-05-50-02-CN and required quantity.

330103-00-05-50-02-CN

Technical Specifications

Official Bently Nevada technical and ordering data organized for system matching, termination, installation and replacement review.

01
Product IdentityExact probe family and matched-system performance data
ManufacturerBently Nevada, a Baker Hughes company
Complete ordered model330103-00-05-50-02-CN
Base probe330103 metric forward-mount probe
Transducer family3300 XL 8 mm
Linear range2 mm (80 mils)
Scale factor, 5 m system7.87 V/mm (200 mV/mil) ±5%
Frequency response0 to 10 kHz, +0 / -3 dB
02
Cable & TerminationIntegral cable, connector option and electrical checks
Integral probe cable5.0 m (16.4 ft)
Cable construction75 Ω triaxial, FEP insulated
Connector option 02Miniature coaxial ClickLoc, standard cable
Nominal 5.0 m probe resistance8.73 ±0.50 Ω
Minimum cable bend radius25.4 mm (1.0 in)
Maximum connector torque0.565 N·m (5 in·lbf)
Connection tighteningFinger-tight until ClickLoc clicks
03
ConstructionProbe materials and exact metric mechanical configuration
Probe tip materialPolyphenylene sulfide (PPS)
Probe case materialAISI 303 or 304 stainless steel
Case threadM10 × 1
Unthreaded length0 mm
Overall case length50 mm
ArmorNot fitted; 330103 configuration
Maximum tensile strength330 N (75 lbf), case to probe lead
04
Ordering & InstallationDecoded ordering fields and installation limits
Ordering structure330103-AA-BB-CC-DD-EE
Code 000 mm unthreaded length
Code 0550 mm overall case length
Code 505.0 m total probe length
Code 02ClickLoc connector, standard cable, no factory protector
Agency suffix CNRetained as ordered; verify certificate and nameplate
Matched system lengthMatch to a 5 m Proximitor Sensor

330103-00-05-50-02-CN PRODUCT SUPPORT

Frequently Asked Questions

Compatibility, standard-connector termination, metric installation, length-code, agency-suffix and replacement checks for this exact 330103 configuration.

01

Which Proximitor Sensor is compatible with 330103-00-05-50-02-CN?

Use a 3300 XL 8 mm Proximitor Sensor configured for a 5.0 m system length. Keep the probe, any required extension cable and sensor within the 3300 XL 8 mm family.

02

Does this 5.0 m metric probe require an extension cable?

A 5.0 m probe is intended for a 5 m 3300 XL 8 mm system. Confirm the complete probe-plus-extension length before connection; do not add an extension cable if it would move the system away from the required 5 m electrical length.

03

What does the complete 00-05-50-02-CN length and option code specify?

It specifies 0 mm unthreaded length, 50 mm overall case length, 5.0 m total probe length, a miniature coaxial ClickLoc connector with standard cable and no factory-fitted protector, plus the requested CN agency suffix.

04

How should the option 02 ClickLoc connector be terminated?

Make the ClickLoc connection finger-tight until it clicks, keep the cable above its 25.4 mm minimum bend radius, and do not exceed the 0.565 N·m connector torque limit. Option 02 does not specify a factory-fitted connector protector.

05

What installation dimensions must be checked for this M10 probe?

Confirm an M10 × 1 mounting interface, a fully threaded 50 mm case, the available bracket depth and cable clearance. Maintain the probe gap while tightening the lock nut and do not twist the integral lead.

06

What must be verified for the CN agency suffix?

The final CN suffix is retained exactly from the requested complete part number. The current Rev. AM ordering table lists standard approval suffixes 00 and 05, so verify the probe nameplate, certificate and site approval requirement before installation.

07

What must be confirmed before replacing 330103-00-05-50-02-CN?

Match the complete part number, 330103 unarmored metric construction, M10 × 1 thread, 0 mm unthreaded length, 50 mm case, 5.0 m cable, option 02 standard ClickLoc termination, CN suffix and the installed 5 m Proximitor Sensor.
