The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system'sprimary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor' reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components

Frequently Asked Questions

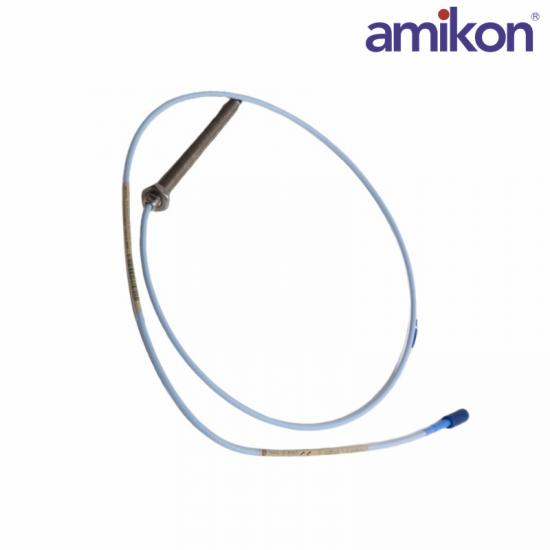

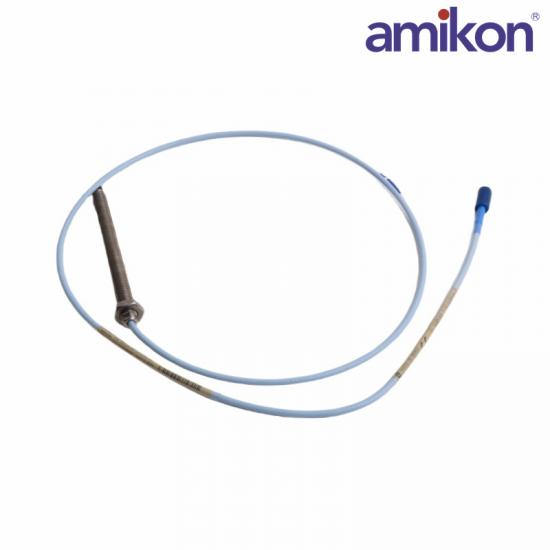

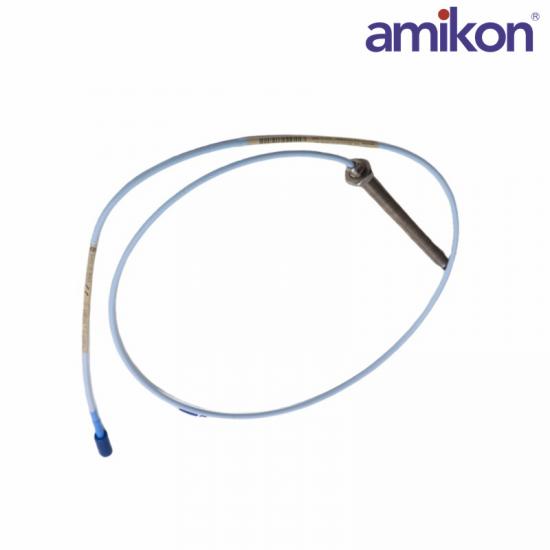

Q: What does the part number 330103-00-05-10-12-00 stand for?A: This is a Bently Nevada 3300 XL 8mm proximity probe. It features an M10×1 metric thread, 0 mm unthreaded length, 50 mm overall case length, 1.0-meter total cable length with stainless steel armor and a connector protector, and no agency approvals.

Q: What is the difference between part numbers 330103 and 330104?
A: 330103 uses a Metric thread (M10×1), whereas 330104 uses an English/Imperial thread (3/8-24). Their probe tip diameters (8mm) and performance are identical, but their mounting threads differ.

Q: Why is the probe cable length exactly 1.0 meter? Can I order a 5-meter probe directly?
A: A shorter 1.0-meter probe cable makes it much easier to route through tight conduits during installation. It must be paired with an extension cable so that the total system length matches exactly 5.0 meters or 9.0 meters.

Q: Can I mix a 5-meter probe with a 9-meter Proximitor sensor?
A: Absolutely not. The internal capacitance and inductance parameters differ between 5m and 9m systems. Mixing them causes severe linearity errors, making the calibration invalid.

Product Applications
Power Plants: Steam turbines, generators, feedwater pumps, and blowers in thermal power plants, nuclear power plants, and hydroelectric power plants. Used for real-time monitoring of bearing wear and dynamic shaft vibration to prevent catastrophic runaway accidents.
Oil & Gas/Petrochemical Refineries: Large centrifugal compressors, reciprocating compressors, and high-pressure pumps in oil refineries and natural gas transmission stations.
Steel & Metallurgical Mills: Bearing monitoring for large rolling mills, blast furnace blowers, and large exhaust fans.
Chemical & Cement Plants: Condition monitoring of large mixers, crushers, rotary kilns, and various critical power fans.
Paper Mills & Water Utilities: Bearing protection for fluid machinery such as pulpers and large water pumps.
