Part Number
330104-00-08-05-02-CN
Model
3300 XL 8 mm Proximity Probes
Manufacturer
Bently Nevada
Unthreaded Length
00 = 0 mm
Overall Case Length
08 = 80 mm
Total Length
05 = 0.5 m (1.6 ft)
Connector Type
02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval
CN = ATEX/IECEx and Chinese NEPSI hazardous area marking
Sensitivity
10 mV/µm
Frequency Range
0 Hz to 20 kHz
Dynamic Range
110 dB

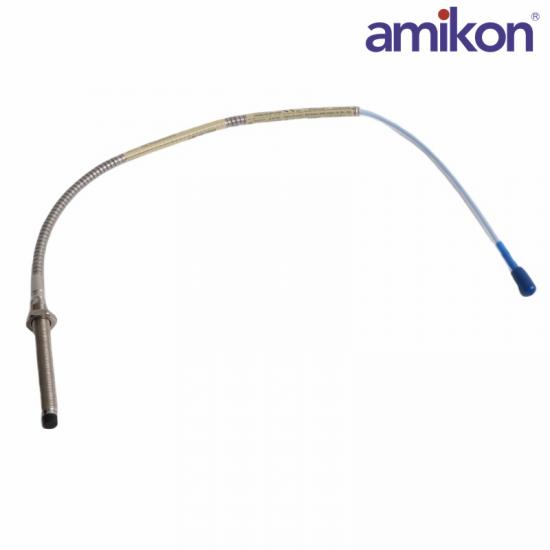

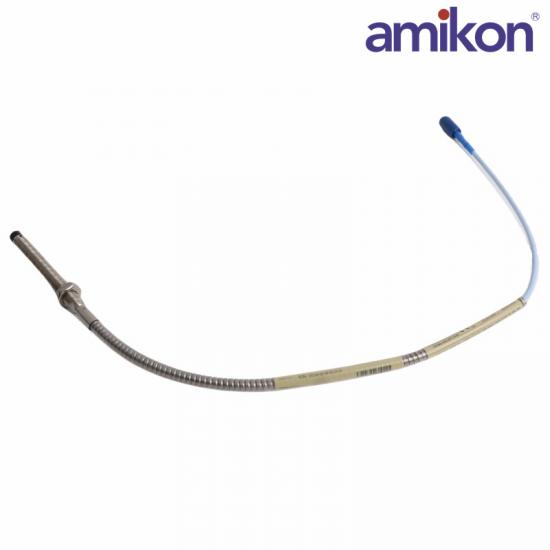

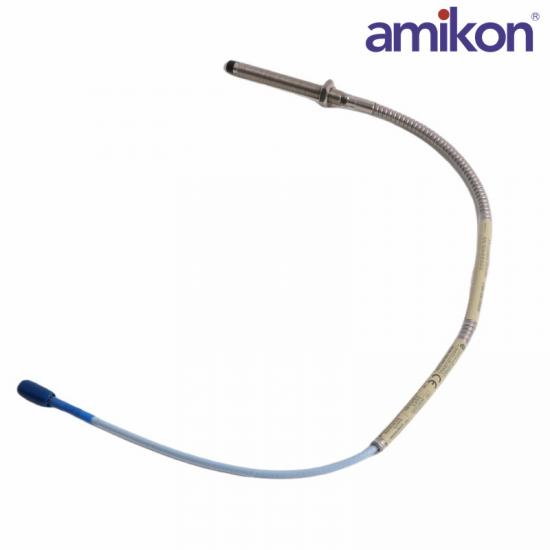

The Bently Nevada 330104-00-08-05-02-CN is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe supports non-contact measurement between the probe tip and an observed conductive target surface.
The 3300 XL 8 mm Transducer System provides an output voltage directly proportional to the distance between the probe tip and the conductive surface. Changes in the physical gap between the probe tip and target are therefore represented by corresponding changes in the system's voltage output.
This operating principle enables the system to measure both static and dynamic values. Static measurements represent position, while dynamic measurements represent vibration, allowing the same transducer system to perform different types of machinery measurements.
Frequently Asked Questions
What is the 330104-00-08-05-02-CN?
It is a Bently Nevada 3300 XL 8mm eddy current proximity probe with armored cable, designed for non-contacting vibration, displacement, and speed measurements on rotating machinery.
What does the "-CN" suffix mean?
The "-CN" suffix indicates that the probe carries official China explosion-proof (Ex) certifications, making it legally compliant and safe for hazardous areas in mainland China.
What is the standard linear range of this 8mm probe?
It has a standard linear range of 2.0 mm (80 mils), typically starting around 0.25 mm (10 mils) from the target surface up to 2.25 mm (90 mils).
What is the operating temperature range for this probe?
The probe tip and cable are typically rated for continuous operation from -51 °C to +177 °C (-60 °F to +350 °F).
Product Applications
Power Industry: Used for monitoring the vibration and displacement of main shafts in steam turbines, water turbines, and generator sets in power plants.
Petrochemical Industry: Used for centrifugal compressors, large fans, and pumps in oil refineries and chemical plants.
Iron and Steel Metallurgy: Used for online monitoring of critical rotating equipment such as blast furnace blowers, main motors, and rolling mills.
