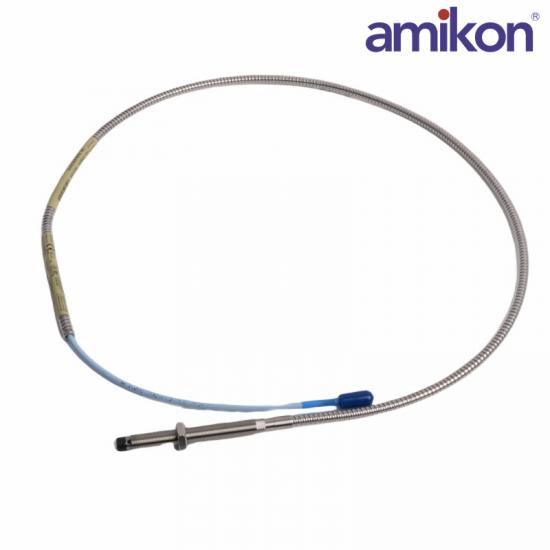

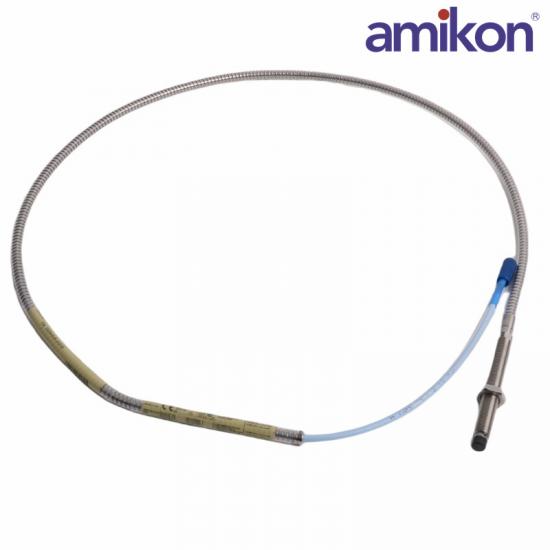

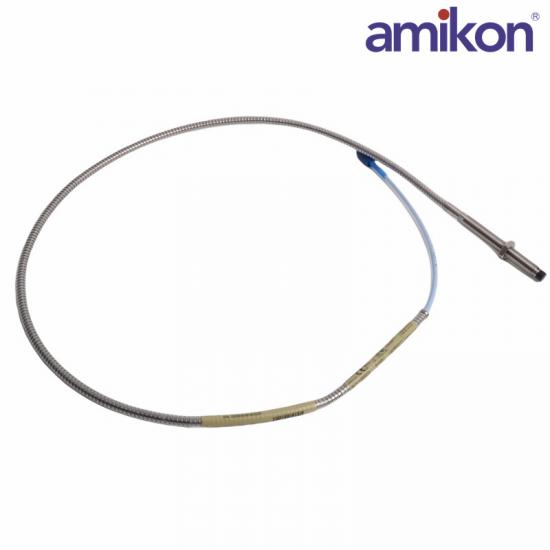

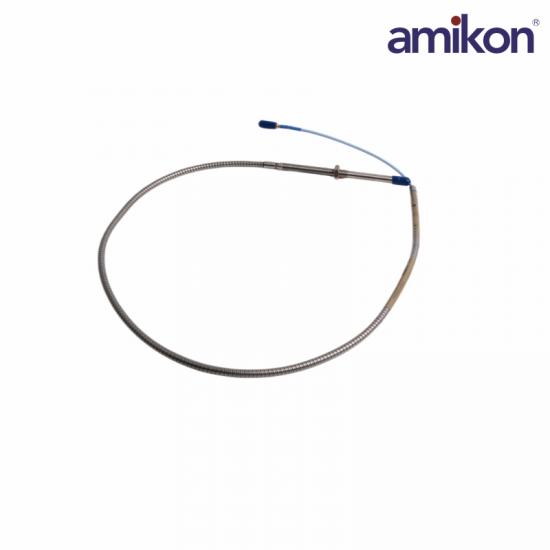

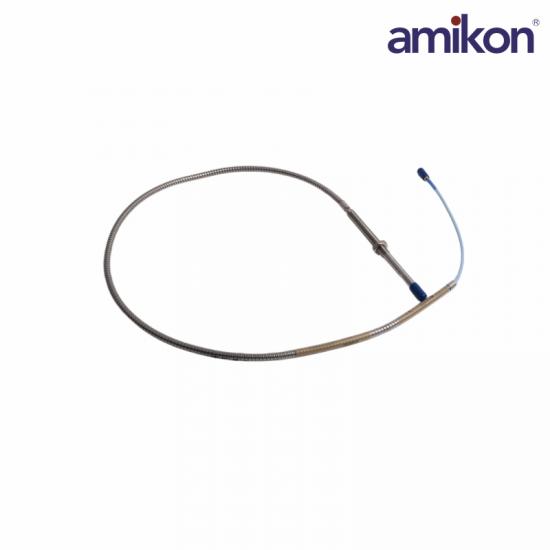

The Bently Nevada 330104-00-08-10-02-00 is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe works together with the corresponding extension cable and Proximitor® Sensor to provide non-contact measurement between the probe tip and an observed conductive surface.

The 3300 XL 8 mm Transducer System produces an output voltage directly proportional to the distance between the probe tip and the conductive target surface. As the physical gap between the probe tip and target changes, the system provides a corresponding change in output voltage, allowing the target movement or position to be measured without physical contact.

The system is capable of measuring both static and dynamic values. Static measurements are used for position, while dynamic measurements are used for vibration, allowing the same transducer system to support different machinery measurement requirements.

Frequently Asked Questions

What does the model number 330104-00-08-10-02-00 mean?
It specifies a 3300 XL 8mm probe with an M10×1 thread, 0mm unthreaded length, 80mm overall case length, 1.0-meter total cable length, miniature ClickLoc™ connector, and standard approvals.

What does the "08" case length code stand for?
It indicates an 80 mm total case length.

What target material is this probe calibrated for by default?
It is calibrated for AISI 4140 steel. Using other metals will alter the scale factor.

What is the operating temperature range for the probe tip?
The 3300 XL probe tip can operate in extreme temperatures ranging from -51 °C to +177 °C (-60 °F to +350 °F).

Product Applications
Power plants: Monitoring shaft vibration and displacement in large and medium-sized steam turbines, water turbines, and gas turbines.
Oil refineries and chemical plants: Real-time condition monitoring and mechanical protection for centrifugal compressors, large centrifugal pumps, fans, and blowers.
Steel mills and metallurgical enterprises: Fault early warning for high-load transmission equipment, main motors, and large rotating machinery.
Pump factories and heavy machinery manufacturing: Providing large auxiliary equipment with high-speed, hydrodynamic bearings.
