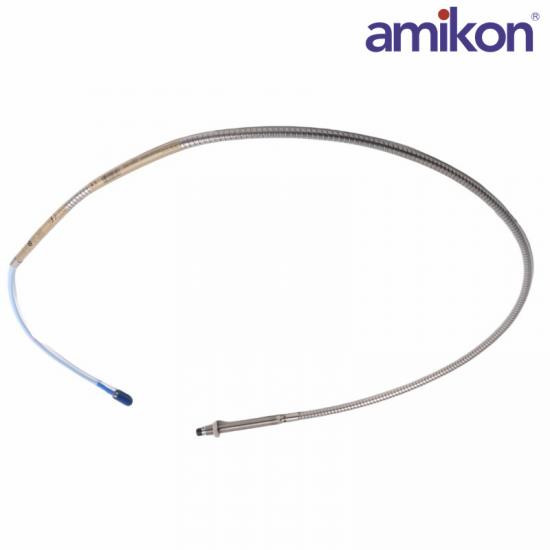

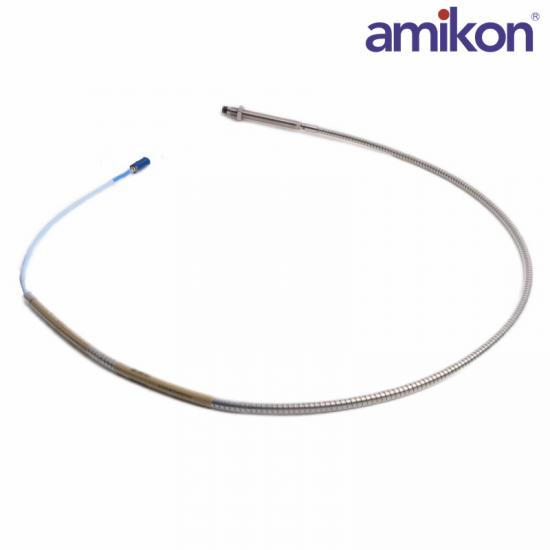

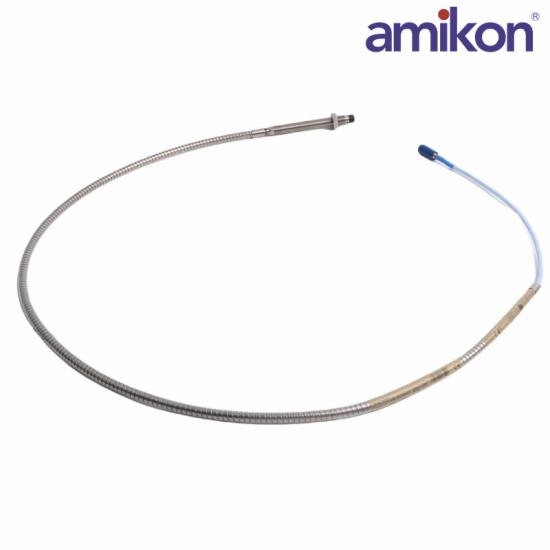

The Bently Nevada 330104-00-08-10-01-05 is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe operates with a compatible extension cable and Proximitor® Sensor to provide non-contact measurement between the probe tip and an observed conductive surface.

The 3300 XL 8 mm Transducer System provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface. Changes in the physical gap between the probe and target are therefore represented by corresponding changes in the system's electrical output.

The system is capable of measuring both static and dynamic values. Static measurements represent position, while dynamic measurements represent vibration, enabling the same proximity transducer system to support different machinery measurement requirements.

The primary applications of the system include vibration and position measurements on fluid-film bearing machines. Its non-contact measurement principle allows the system to monitor changes in the position and movement of the conductive target without requiring physical contact between the probe and target surface.

Frequently Asked Questions

Q : What is the thread size of this specific model?
A : The base part number "330104" designates a Metric thread standard. The thread specification is M10 × 1.

Q : How long is the integrated cable attached to this probe?
A : The "-10" option specifies an integrated cable length of 1.0 meter (approximately 3.3 feet).

Q : What does the "8mm" in the description refer to?
A : "8mm" refers to the diameter of the plastic probe tip, not the threaded barrel size.

Q : What is the linear measuring range of an 8mm probe?
A: The standard linear range is 2.0 mm (approximately 80 mils). Within this window, the output voltage change is strictly proportional to the physical gap distance.

Product Applications
Power industry: Steam turbines, water turbines, and generator sets for power plants.
Petrochemical industry: Large centrifugal compressors, fans, and pumps for oil refineries and chemical plants.
Iron and steel industry: Blast furnace blowers and main drive gearboxes for large rolling mills.
