The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatibleand interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer systemcomponents4. This includes the 3300 5 mm probe, which is used when an 8 mm probe is too large for the available mounting spaces6

Frequently Asked Questions

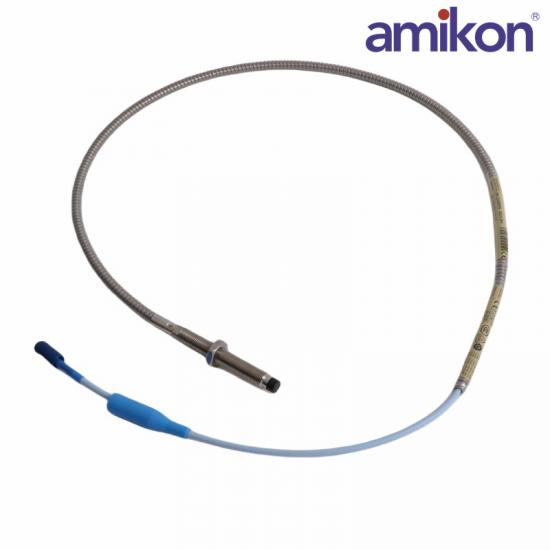

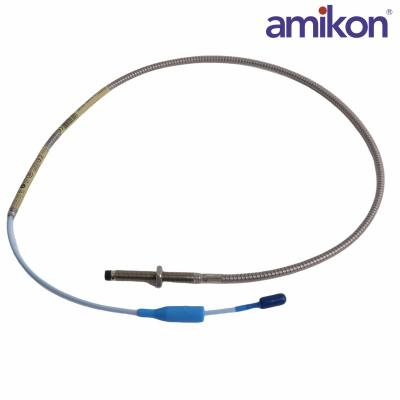

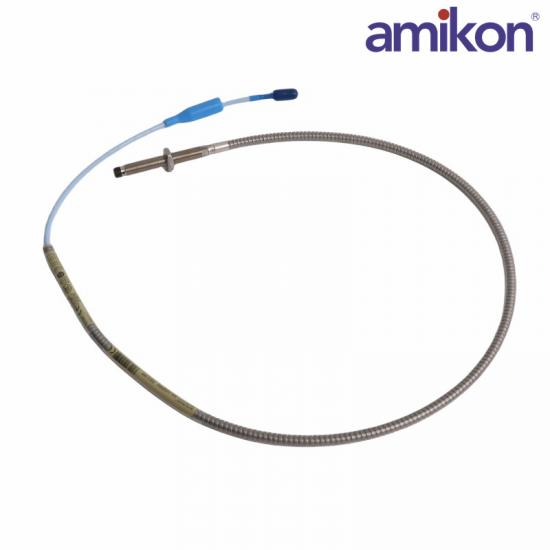

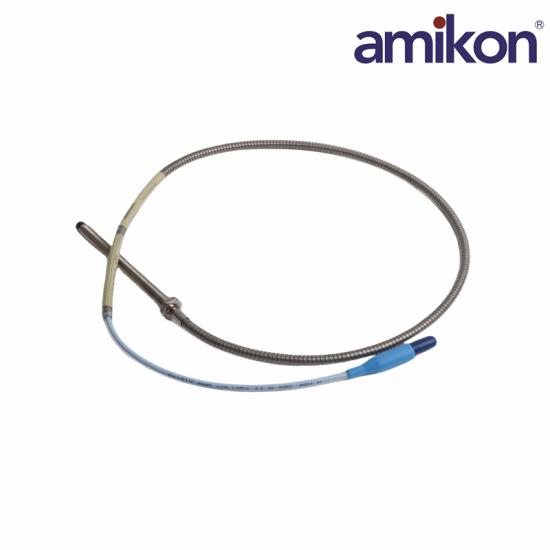

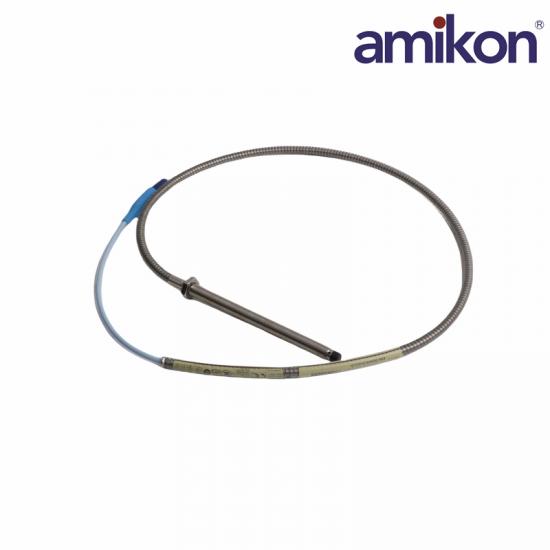

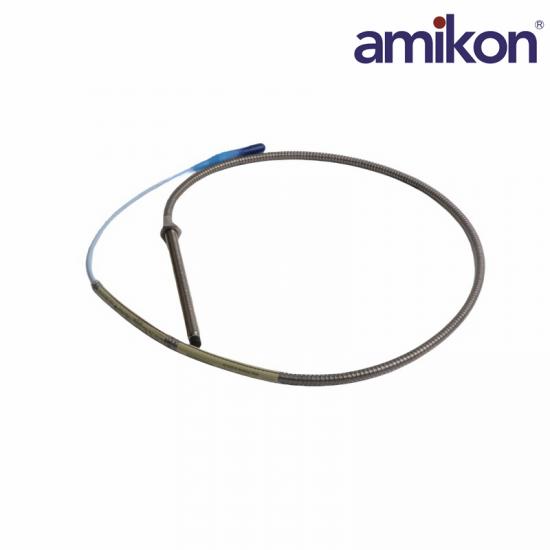

Q : What is the 330104-00-10-10-01-CN?
It is a Bently Nevada 3300 XL 8mm proximity probe.

Q : What is the probe tip diameter?
The tip diameter is 8 millimeters.

Q : What thread standard does this probe use?
It uses a metric M10×1 thread specification.

Q : What is the integrated cable length?
The probe comes with a 1.0-meter cable.

Q : What connector type does option "01" have?
A miniature coaxial ClickLoc connector with a connector protector.

Product Applications
Power Industry: Monitoring of rotor shaft vibration, axial displacement, differential expansion, and rotational speed (Keyphasor) of large steam turbines, hydro turbines, and generator sets.
Petroleum and Petrochemical Industry: Mechanical condition monitoring and fault diagnosis of key rotating equipment such as centrifugal compressors, reciprocating compressors, large blowers, and industrial pumps.
Chemical and Coal Chemical Industry: Bearing condition monitoring of syngas compressors and large air separation units operating under high temperature, high pressure, and flammable/explosive environments.
Metallurgy and Mining Industry: Vibration protection for high-speed, heavy-load rotating equipment in steel plants, such as blast furnace blowers, large main exhaust fans, and rolling mill gearboxes.
