The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperaturestability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatibleand interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer systemcomponents4. This includes the 3300 5 mm probe, which is used when an 8 mmprobe is too large for the available mounting space5.6

Frequently Asked Questions

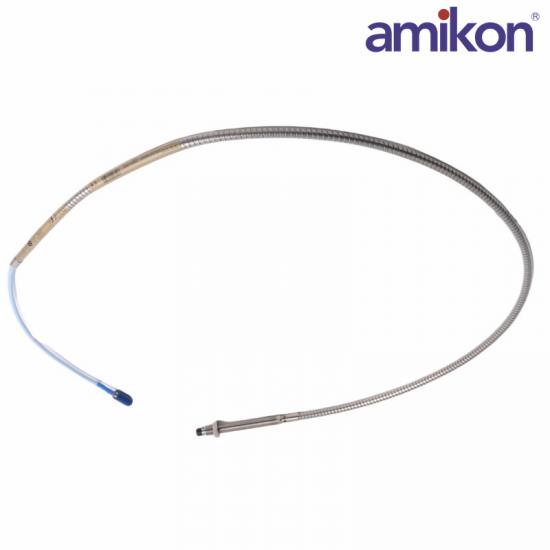

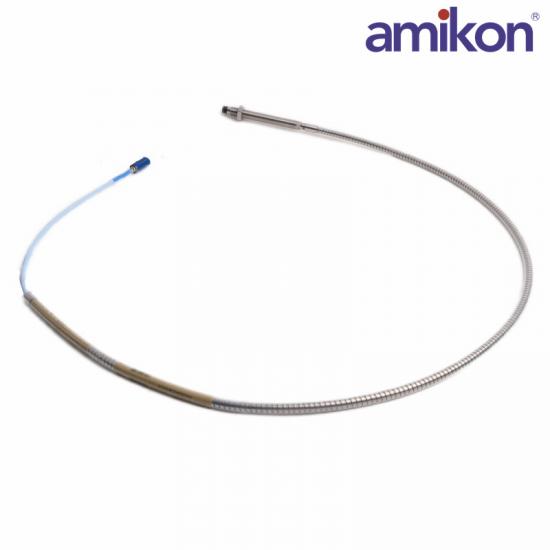

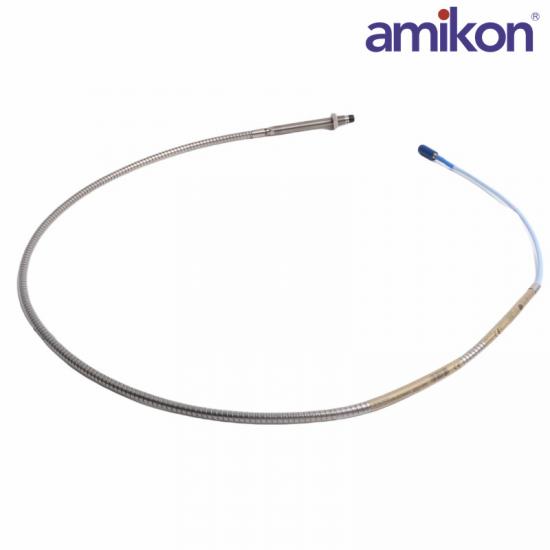

Q : What exactly is the 330104-04-10-10-02-00?
A : It is a 3300 XL 8mm Proximity Probe manufactured by Bently Nevada. It is an eddy-current sensor used for non-contact vibration and displacement monitoring on rotating machinery.

Q : What is the difference between the 330104 base model and the common 330101?
A : The 330101 is a standard forward-mount probe, whereas the 330104 is a Reverse Mount probe (3/8-24 UNF threads), typically used with a reverse-mount housing or sleeve.

Q : What do the "04" and "10" length options mean in this model?
A : "04" represents an Unthreaded Length of 0.4 inches. The first "10" represents an Overall Case Length of 1.0 inch.

Q : What is the ideal initial mechanical gap between the probe tip and the shaft?
A : The center of the linear range corresponds to a gap of approximately 1.0 mm (40 mils), which yields a -10 VDC output from the Proximitor.

Product Applications

Oil and Gas Plants: Condition monitoring of centrifugal compressors and large pump units in refineries, natural gas pipeline pressurization stations, and liquefied natural gas (LNG) receiving terminals.
Coal and Hydropower Plants: Measurement of shaft vibration, axial displacement, and eccentricity in steam turbine generator sets, gas turbines, large hydroelectric generators, and feedwater pumps.
Large Chemical and Petrochemical Plants: Bearing temperature and wear monitoring of key equipment such as cracked gas compressors, large mixers, and reactor circulating pumps.
Metallurgical and Steel Plants: Mechanical protection of blast furnace blowers, rolling mill main drive bearings, and large dust collector fans.
Mining and Cement Plants: Mechanical vibration monitoring of large ball mills, crushers, and large conveyor belt drive systems.
