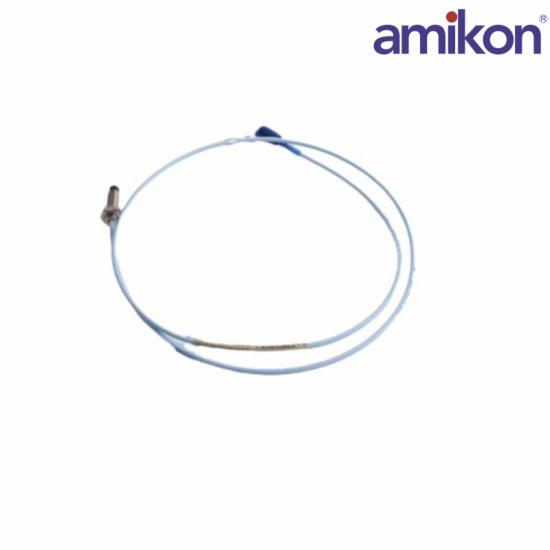

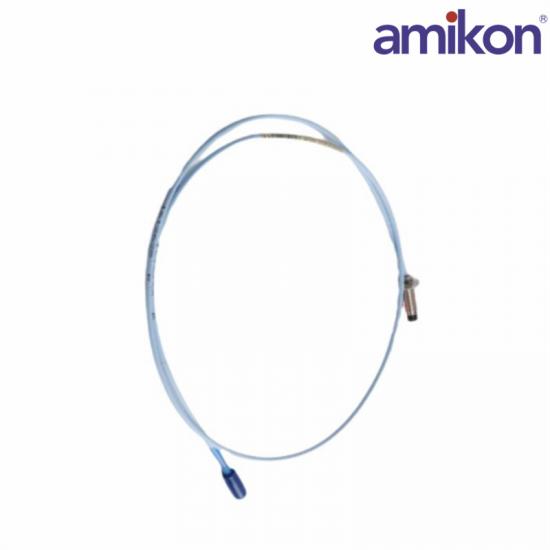

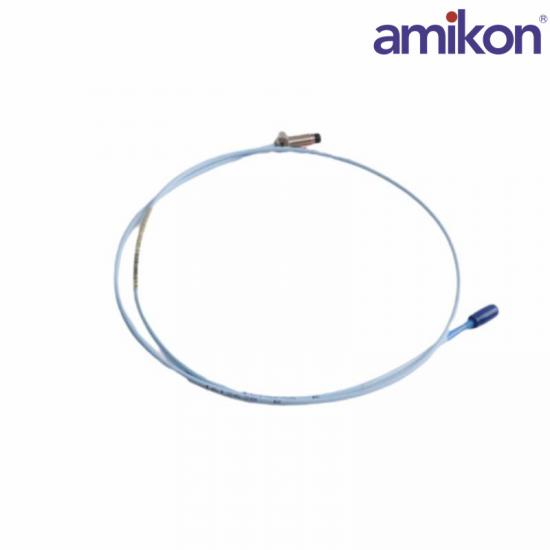

The Bently Nevada 330104-00-15-10-01-05 is a 3300 XL 8 mm Proximity Probe designed for use as a component of the 3300 XL 8 mm Proximity Transducer System. It operates together with the corresponding extension cable and Proximitor® Sensor as part of the complete eddy current proximity transducer system.

The 3300 XL 8 mm system represents the advanced performance level of Bently Nevada's eddy current proximity transducer systems. Its system configuration is intended to provide consistent performance across the probe, extension cable, and Proximitor® Sensor.

The standard 3300 XL 8 mm 5-meter system is fully compliant with the American Petroleum Institute (API) 670 Standard, 4th Edition. This compliance establishes defined performance requirements for the complete transducer system.

The specified API 670 4th Edition compliance covers important characteristics including mechanical configuration, linear range, accuracy, and temperature stability. These parameters define the performance level provided by the standard 5-meter configuration.

Frequently Asked Questions

Q : What exactly is the Bently Nevada 330104-00-15-10-01-05?
A: It is a 3300 XL 8mm eddy current proximity probe. It features a metric M10×1 thread, stainless steel armor, a 150mm case length, a 1.0-meter total length, a standard connector with a connector protector, and multiple hazardous area approvals.

Q : What do the option codes "00" and "15" mean?
A: "00" means there is 0 mm of unthreaded length. "15" means the total threaded case length is 150 mm.

Q : What is the maximum recommended torque for tightening this M10 probe?
A: The maximum torque for an M10×1 probe is 7.5 N·m (66 in·lb). Overtightening can crack the probe tip.

Q : Do I need an extension cable for this probe?
A: Yes. Since this probe is 1.0 meter long, you must use a 4.0-meter or 8.0-meter extension cable to create a complete 5.0m or 9.0m system.

Product Applications
Oil & Gas: This probe boasts multiple explosion-proof certifications (such as ATEX and IECEx Zone 0/2), making it standard equipment in hazardous areas of the oil and gas industry.
Petrochemical: Cracking and ethylene plants in petrochemical plants have extremely high requirements for continuous operation; any failure of large rotating equipment can lead to a complete shutdown.
Power Generation: Whether it's thermal power, nuclear power, or gas turbine power generation, shaft vibration of large generator sets is a key indicator of safe operation.
Metallurgy & Heavy Manufacturing: In steel mills and large non-ferrous metal smelters, the harsh environment of high pollution and strong vibration places extremely high demands on sensors.
