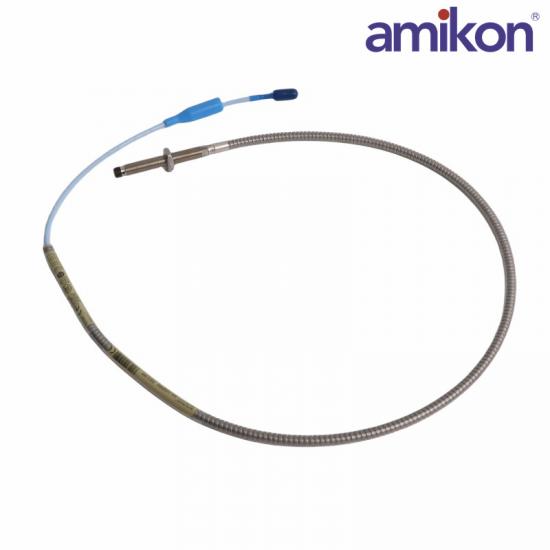

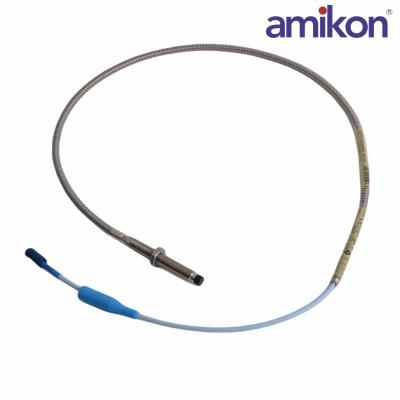

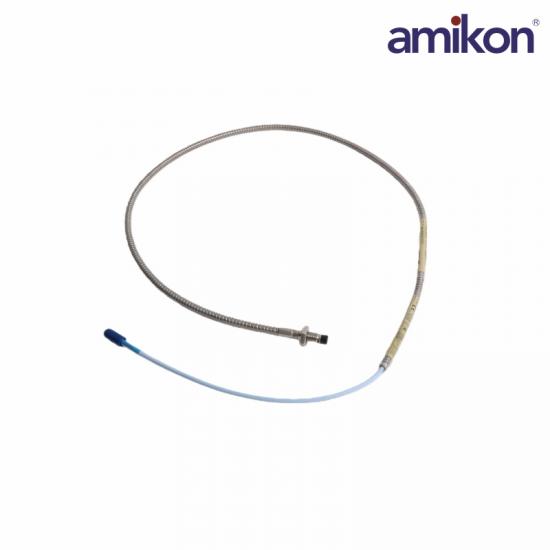

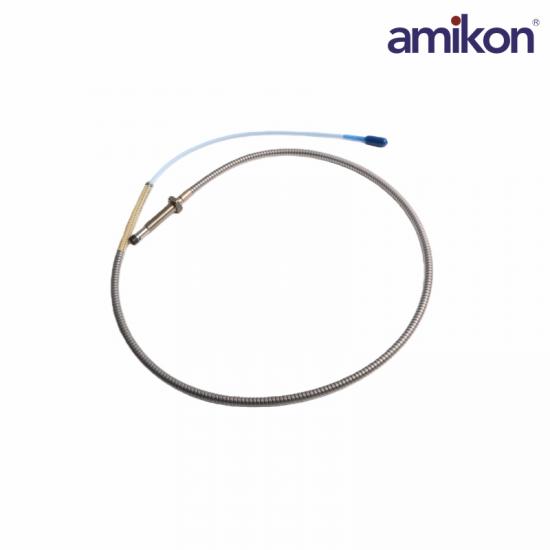

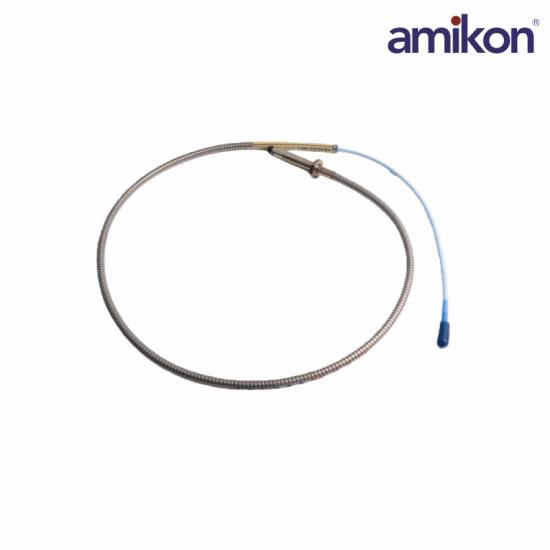

The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (APl) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Each component of the 3300 XL 8 mm Transducer System is backward compatibleand interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer systemcomponents4. This includes the 3300 5 mm probe, which is used when an 8 mmprobe is too large for the available mounting space5.6

Frequently Asked Questions

Q3: What is the nominal linear measuring range of the 330104-00-13-10-02-CN probe?
It has a linear range of 2.0 mm (80 mils), typically starting at 0.25 mm (10 mils) from the probe tip.

Q4: What is the standard target material calibrated for this sensor?
It is standardly calibrated for AISI 4140 steel. Measuring other metals requires scale factor recalibration.

Q6: Can this probe be used at high temperatures?
Yes. The probe tip and cable can operate in environments ranging from -51°C to +177°C (-60°F to +351°F).

Q17: What is the minimum target diameter required for an 8mm probe?
The target area should be at least 15.2 mm (0.6 in) in diameter to prevent edge-effect measurement errors.

Product Applications
Power generation industry: Used for monitoring shaft vibration and displacement in large and medium-sized steam turbines, gas turbines, and hydroelectric generator sets.
Petrochemical industry: Used for monitoring the mechanical condition of centrifugal compressors, reciprocating compressors, large fans, and industrial pumps in oil refineries and chemical plants.
Iron and steel metallurgy industry: Used for monitoring the mechanical condition of blast furnace blowers, main and exhaust fans, high-speed and high-power motors, and large gearboxes.
