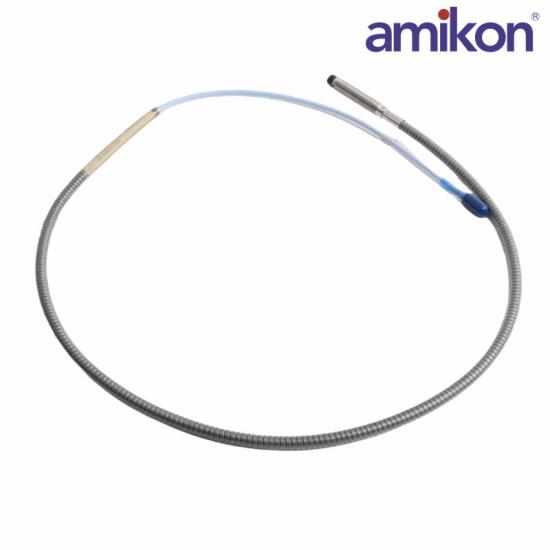

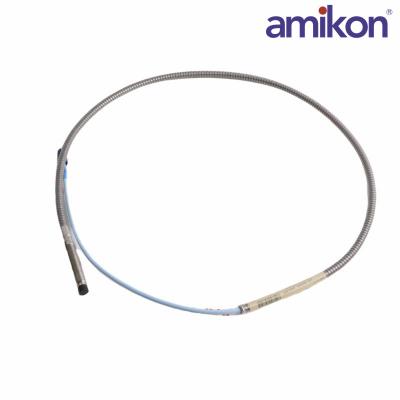

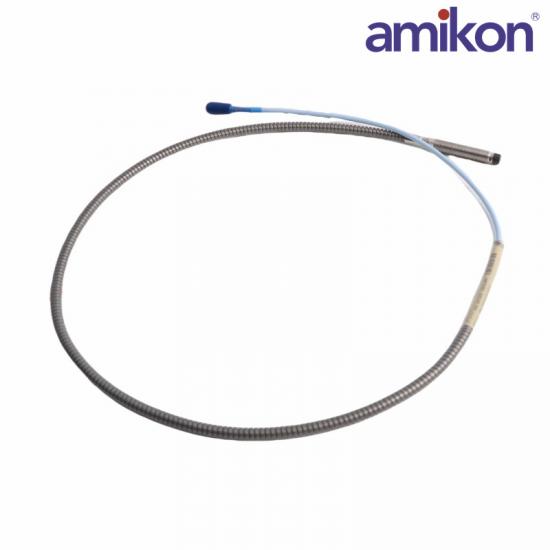

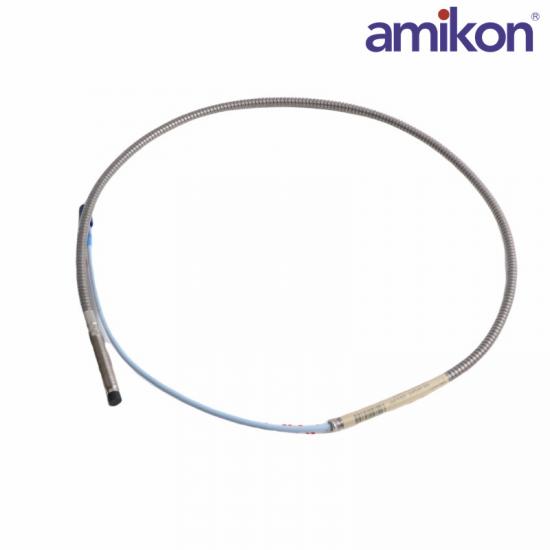

The Bently Nevada 330104-05-13-10-02-05 is a 3300 XL 8 mm Proximity Probe designed for use as part of the 3300 XL 8 mm Proximity Transducer System. Within the complete system, the probe operates with the corresponding extension cable and Proximitor® Sensor to provide non-contact proximity measurements from a conductive target surface.

The 3300 XL 8 mm Transducer System produces an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. This relationship allows the system to measure both static values, such as position, and dynamic values, such as vibration, using the same proximity measurement principle.

Primary applications of the system include vibration and position measurements on fluid-film bearing machines. The system can also be used for Keyphasor® reference and speed measurements, supporting several important measurement functions associated with rotating machinery monitoring.

The 3300 XL 8 mm system provides the advanced performance characteristics of Bently Nevada's eddy current proximity transducer systems. In the standard 5-meter system configuration, the 3300 XL 8 mm system fully complies with the American Petroleum Institute (API) 670 Standard, 4th Edition.

Frequently Asked Questions

Q : What does the part number 330104-05-13-10-02-05 represent?

A : It is a Bently Nevada 3300 XL 8 mm proximity probe with an M10x1 metric thread, 50 mm unthreaded length, 130 mm total case length, 1.0-meter integral armored cable, ClickLoc connector, and multiple hazardous area approvals.

Q : What is the physical thread size of this probe?

A : It features a metric M10 x 1 thread pattern.

Q : What is the linear range of an 8 mm probe system?

A : The total linear range is 2.0 mm (80 mils), spanning from roughly 0.25 mm to 2.25 mm away from the target face.

Q : What is the standard target voltage for setting the physical probe gap?

A : The industry standard nominal midpoint gap voltage is -10.0 VDC, which usually corresponds to a physical gap of 1.27 mm (50 mils).

Product Applications

Power Industry: Condition monitoring of steam turbines, gas turbines, water turbines, and generator sets in power plants.

Petrochemical Industry: Large centrifugal compressors, reciprocating compressors, fans, and high-power industrial water pumps in oil refineries and chemical plants.

Metallurgy and Steel Industry: Blast furnace blowers, oxygen compressors, main motors, and high-speed gearboxes in steel plants.
