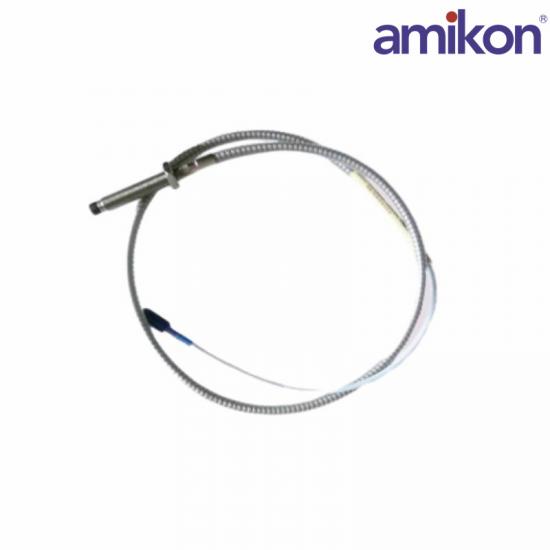

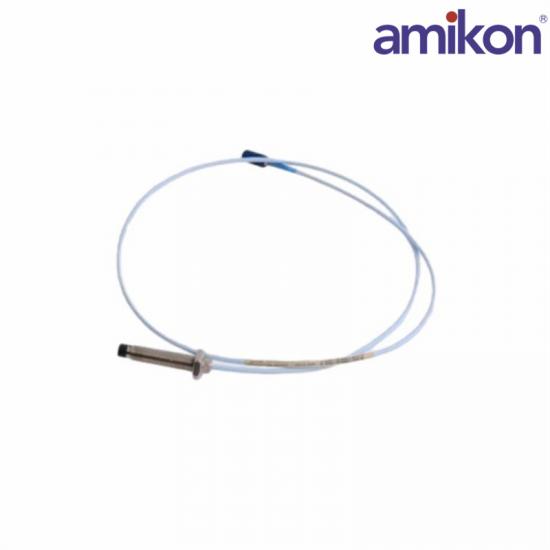

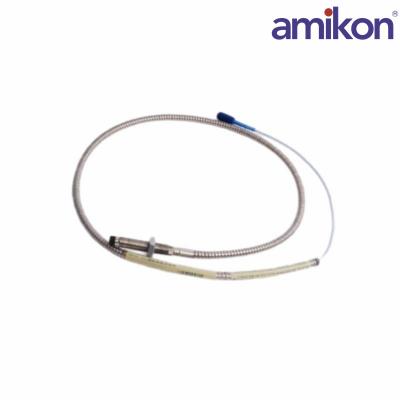

MModel Number: 330106-00-24-10-02-05

Type: Proximity Probes

Probe Diameter: 8 mm

Thread Size: M10 x 1

Unthreaded Length: 0 inches

Overall Length: 4.7 inches (approximately 119.4 mm)

Total Length: 10.0 meters (approximately 32.8 feet)

Probe: 323 g/m (11.4 oz)

Extension Cable: 34 g/m (0.4 oz/ft)

Armored Extension Cable: 103 g/m (1.5 oz/ft)

Proximitor Sensor: 246 g (8.67 oz)

Standard Cable: -52°C to +177°C (-62°F to +350°F)

Extended Temperature Range Cable: -52°C to +260°C (-62°F to +500°F)

The 3300 XL 8 mm system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of measuring both static (position) and dynamic (vibration) values. The system's primary applications include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility also includes the 3300 5 mm probe, for applications where an 8 mm probe is too large for the available mounting space.
