Description：

The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Specification：

Frequently asked questions

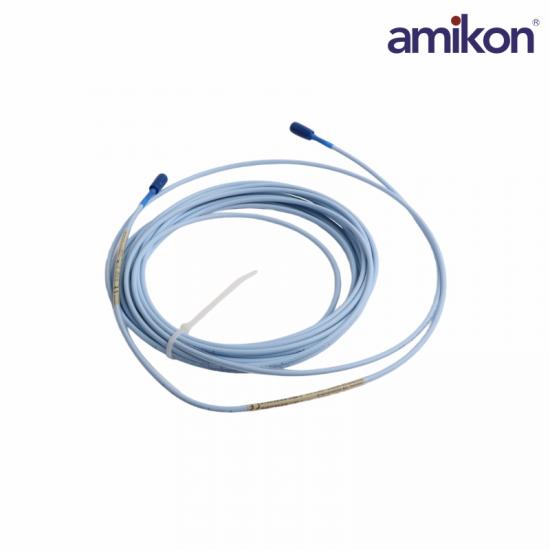

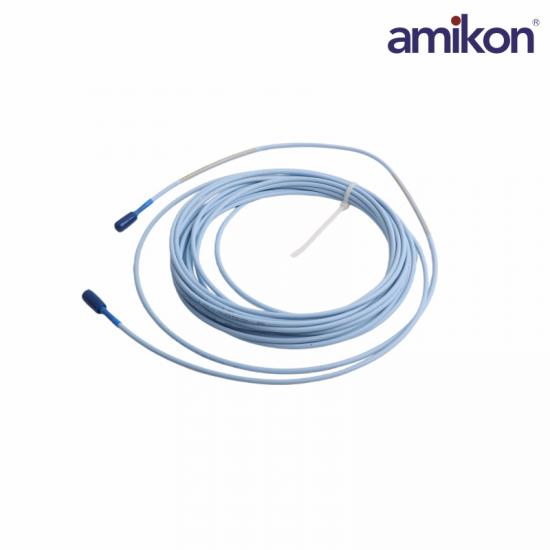

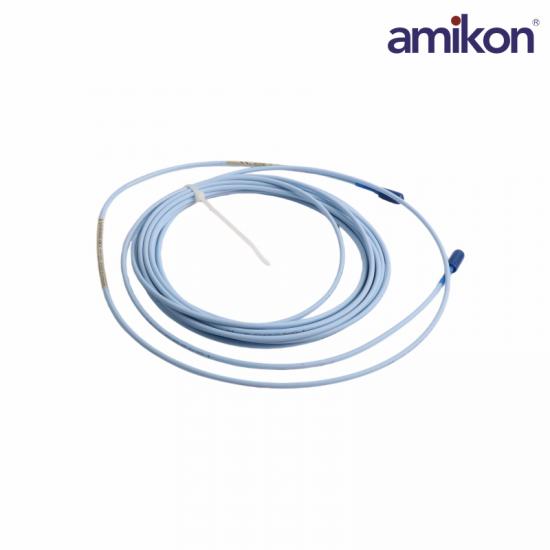

Q1: What is the Bently Nevada 330130-060-01-05 Extension Cable?

A1: It is an industrial extension cable used in Bently Nevada proximity probe systems for signal transmission between the probe and monitoring equipment.

Q2: What is the 330130-060-01-05 cable length of this model?

A2: The 330130-060-01-05 cable length option “060” corresponds to 6.0 meters (19.7 feet).

Q3: What is the 330130-060-01-05 supply voltage range?

A3: The 330130-060-01-05 supply voltage range is -17.5 VDC to -26 VDC.

Q4: What is the 330130-060-01-05 power consumption?

A4: The 330130-060-01-05 maximum power consumption is 12 mA.

Q5: What is the 330130-060-01-05 supported field wiring size?

A5: The 330130-060-01-05 supported field wiring range is 0.2 to 1.5 mm² (16 to 24 AWG).

Product Applications

Oil & Gas: Used to monitor the operating status of large compressors and heavy-duty pumps in refineries and natural gas liquefaction plants.

Power Generation: Used for core vibration monitoring in gas turbines, steam turbines, and hydroelectric generator sets to prevent catastrophic failures.

Petrochemicals & Heavy Manufacturing: Used for real-time status tracking of continuously operating machinery such as axial compressors and fans in large chemical plants.
