Power Supply: -17.5 VDC to -26 VDC

Sensitivity: Less than 2 mV

Output Resistance: 50 Ω

Recommended Gap Setting (Radial Vibration): -9 VDC

Extension Cable:

Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Standard System Lengths: 5 m or 1 m

Scale Factor (Incremental): 7.87 V/mm (200 mV/mil)

Tolerance: ±5% for standard 5 or 1 m system

Tolerance: ±6.5% for standard 9 m system

Minimum Target Size: 50.8 mm (2 in)

Recommended Minimum Target Size: 76.2 mm (3 in)

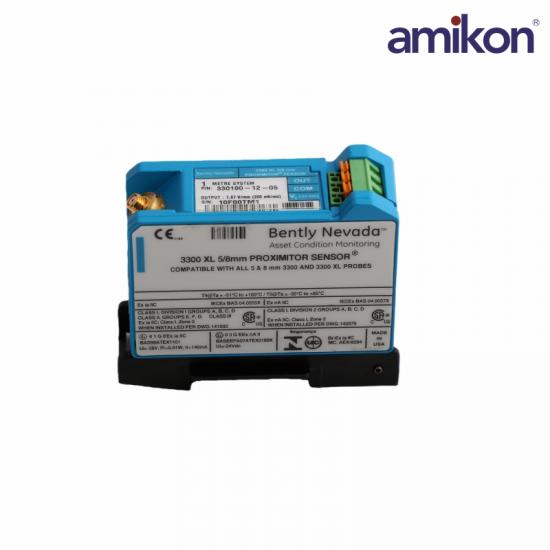

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 xL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (API)670 Standard for mechanical configuration,linear range,accuracy, and temperature stability. All 3300 XL 8 mmPro imity trenatlyeer Syete mte proyld thie eye eabointy oforobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Frequently asked questions：

1.What supply voltage does the 330180-12-BR sensor require?

The sensor operates with a supply voltage between -17.5 VDC and -26 VDC.

2.What is the 330180-12-BR sensor’s sensitivity?

The sensor’s sensitivity is less than 2 mV.

3.What is the 330180-12-BR recommended gap for radial vibration?

Maintain a gap of -9 VDC for optimal radial vibration measurements.
