Power Supply Voltage: -17.5 V DC to -26 V DC

Supply Sensitivity: Less than 2 mV

Output Resistance: 50 Ω

Extension Cable – DC Resistance: Center conductor 0.220 Ω/m (0.067 Ω/ft)

Extension Cable – Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range: 1.5 mm (60 mils)

Recommended Gap Setting: 1.0 mm (40 mils)

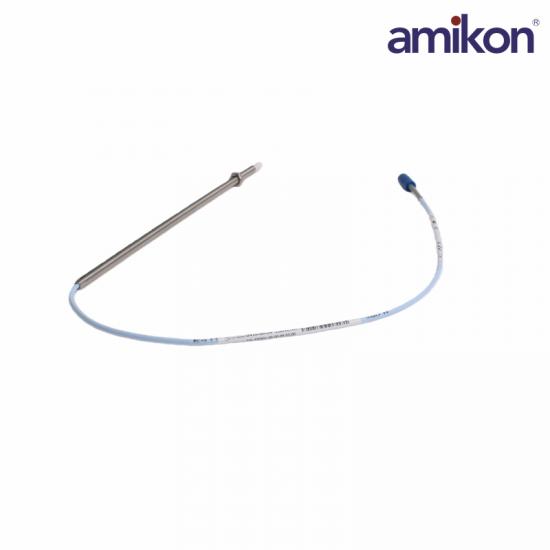

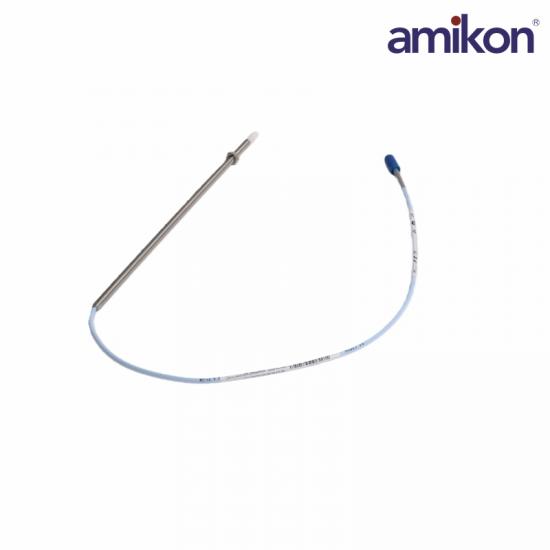

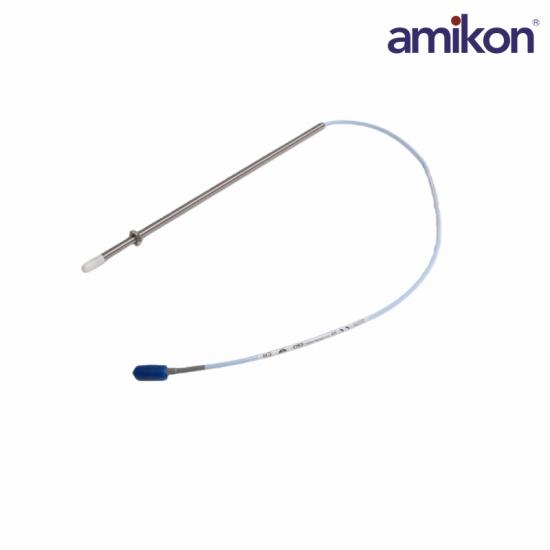

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems.It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 5lmm (2 in)or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust)position measurements.

Tachometer and zero speed measurements.

Phase reference (Keyphasor signals)
