Description：

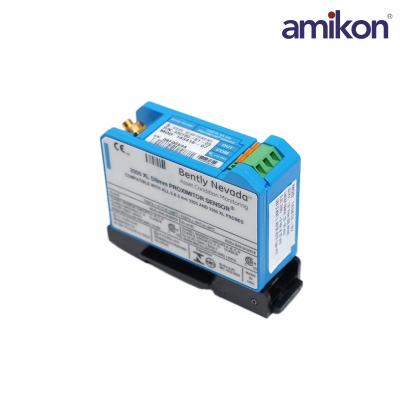

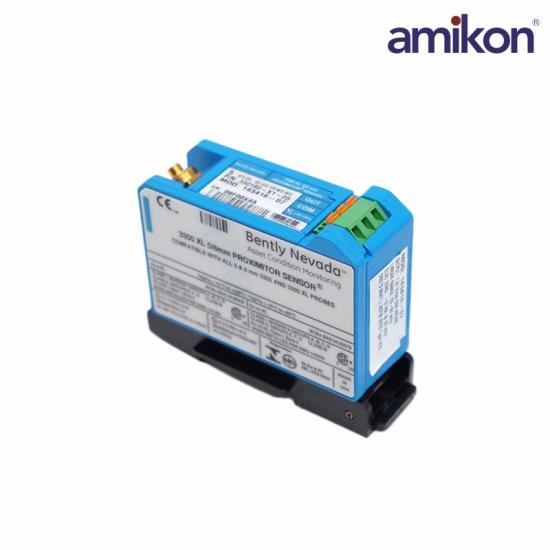

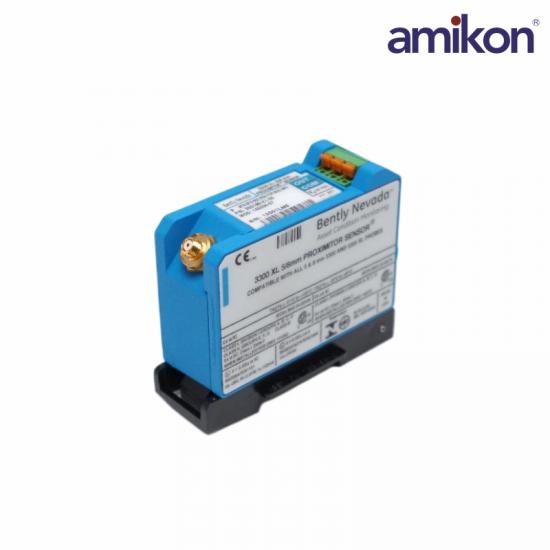

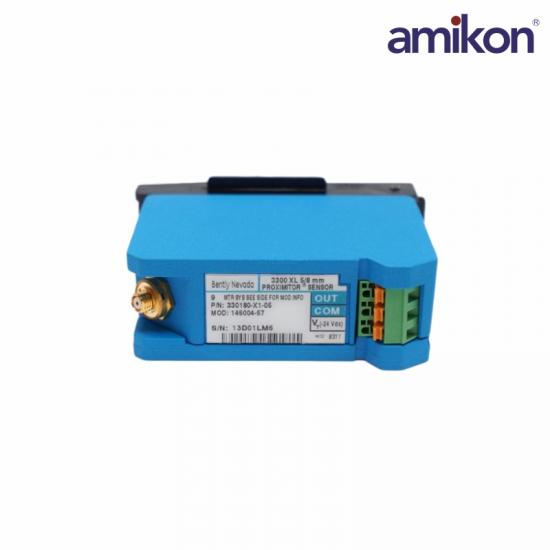

The 330180-X1-05 MOD: 143416-02 is a Bently Nevada 3300 XL Proximitor Sensor. It translates signals from proximity probes to provide precise voltage outputs proportional to shaft displacement and vibration in critical rotating machinery. The "143416-02" modifier generally designates specific internal component calibrations or firmware configurations for custom applications.

The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space6,7.

Specification：

Frequently asked questions

Q1: What is the standard linear range of the Bently Nevada 330180-X1-05 Proximity Sensor?

A: The 330180-X1-05 sensor provides a standard linear range of 2.0 mm (80 mils), enabling accurate shaft displacement and vibration measurements.

Q2: What supply voltage is required for the 143416-02 proximity sensor?

A: The 143416-02 sensor operates with a -24 Vdc supply voltage, which is commonly used in Bently Nevada proximity transducer systems.

Q3: What is the scale factor of the 330180-X1-05 sensor?

A: The 330180-X1-05 sensor has a scale factor (sensitivity) of 7.87 V/mm (200 mV/mil), providing a precise relationship between target movement and output voltage.

Q4: Is the 143416-02 compatible with 3300 XL monitoring systems?

A: Yes. The 143416-02 sensor is designed for use within Bently Nevada 3300 XL proximity transducer systems, providing reliable non-contact measurements for critical rotating machinery.

Product Applications

Thermal/Hydropower/Nuclear Power Plants: Steam turbines, gas turbines, generators, large feedwater pumps.

Oil, Gas, and Petrochemical Refineries: Equipment used includes large centrifugal compressors, reciprocating compressors, and main drive motors for generating units.

Iron and Steel Metallurgical Plants: Large blast furnace blowers, rolling mill main drive systems, and exhaust fans.

Chemical Plants: Extrusion presses, agitator shafts for various high-pressure reactors, and large chemical pumps.
