Description：

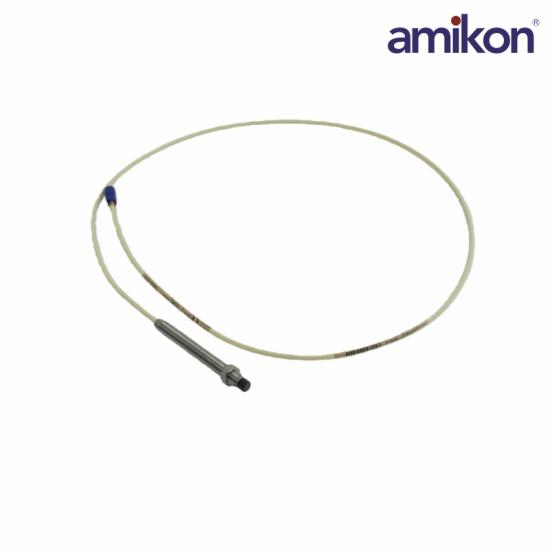

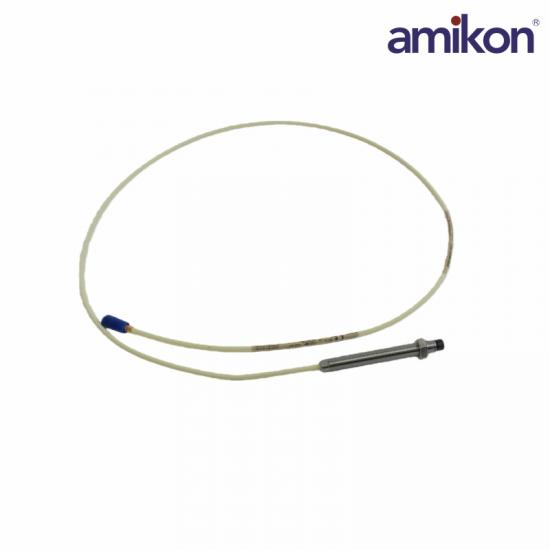

The 21501-00-16-05-02 corresponds to a Bently Nevada 7200 Series Proximity Probe. This industrial sensor uses non-contact eddy current technology to accurately measure shaft vibration, displacement, and position in heavy-duty rotating machinery.

The Bently Nevada 21501-00-16-05-02 is a 3300 Series 5 mm Standard Mount Proximity Probe designed for reliable shaft vibration and position measurement in applications with limited installation space. Equipped with a 1/4-28 UNF mounting thread and stainless steel armor, this probe combines compact dimensions with excellent durability for demanding industrial environments.

Unlike larger proximity probes, the 21501-00-16-05-02 offers the same linear measurement range as a standard 8 mm probe while utilizing a significantly smaller probe body. This compact design makes it an ideal solution for installations where space is restricted, including between thrust bearing pads, inside compact machinery, or other locations where an 8 mm probe cannot be accommodated.

Specification：

Frequently asked questions

Q1: What is the probe head diameter of the Bently Nevada 21501-00-16-05-02?

A: The 21501-00-16-05-02 probe features a 3.4 mm (0.111 in) probe head diameter, making it suitable for applications with limited installation space.

Q2: What power supply is required for the 21501-00-16-05-02 probe?

A: The 21501-00-16-05-02 probe requires a supply voltage between -17.5 Vdc and -26 Vdc for proper operation within a compatible vibration monitoring system.

Q3: What is the sensitivity of the 21501-00-16-05-02 probe?

A: The 21501-00-16-05-02 probe has an Average Scale Factor (ASF) of 200 mV/mil (7.87 V/mm), providing accurate and consistent displacement measurements.

Q4: Is the 21501-00-16-05-02 a standalone sensor?

A: No. The 21501-00-16-05-02 probe is intended to operate as part of a complete Bently Nevada proximity transducer system, working with compatible extension cables and proximitor sensors to provide accurate vibration and displacement measurements.

Product Applications

Oil and Gas (Petrochemical): Used to monitor shaft vibration and displacement in large centrifugal compressors, reciprocating compressors, and various industrial pumps.

Power Energy: Applied to condition monitoring of steam turbines, water turbines, generator sets, and wind turbines, ensuring the long-term safe operation of large power generation equipment.

Iron and Steel Metallurgy: Monitors the operating status of high-load rotating machinery such as blast furnace blowers, large motors, gearboxes, and rolling mills.

Chemical and Scientific Research: Suitable for monitoring displacement and vibration of rotating machinery under harsh conditions such as high pressure, high temperature, or flammable and explosive environments.
