Description：

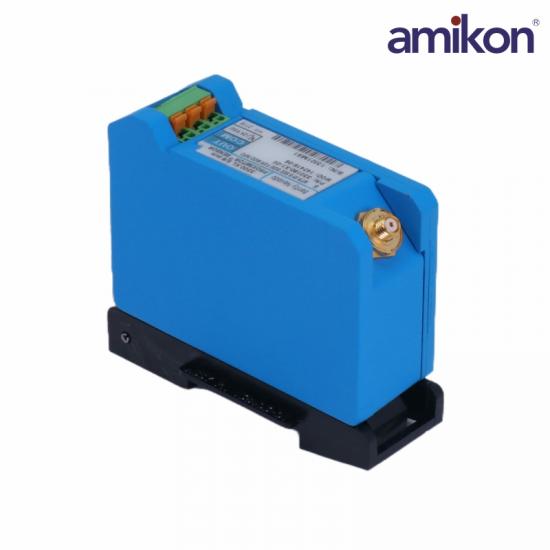

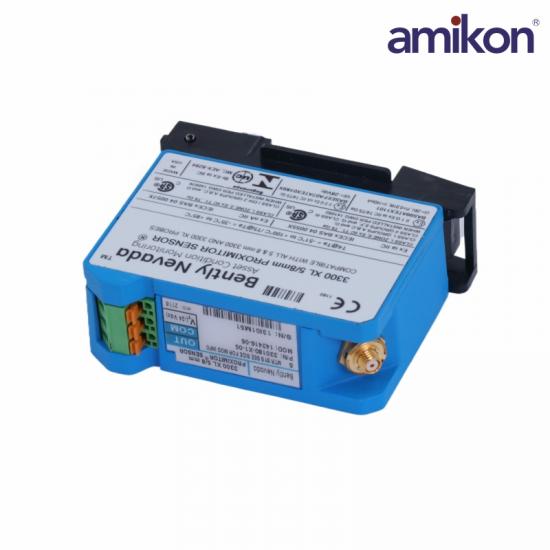

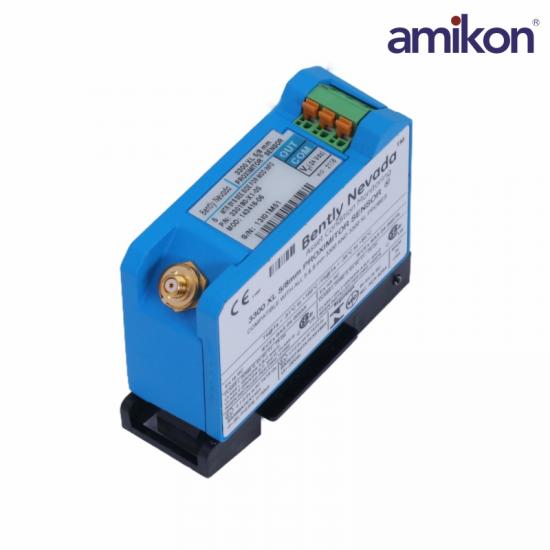

The Bently Nevada 330180-X1-05 MOD:143416-02 Proximity Sensor is a key component of the 3300 XL 8 mm Proximity Transducer System, providing accurate non-contact measurement of shaft position and vibration in rotating machinery. The sensor generates an output signal proportional to the distance between the probe tip and the target surface, enabling precise monitoring of both static displacement and dynamic vibration parameters.

The 3300 XL platform incorporates advanced connector technology with corrosion-resistant gold-plated ClickLoc connectors that simplify installation while providing secure and reliable electrical connections. Enhanced resistance to electromagnetic and radio-frequency interference helps ensure dependable signal transmission in industrial environments. The sensor is fully compatible with 3300 XL extension cables and Proximitor sensors, allowing flexible integration into existing Bently Nevada monitoring systems.

Specification：

Frequently asked questions

Q1: What input voltage is required for the Bently Nevada 330180-X1-05 Proximity Sensor?

A: The 330180-X1-05 sensor operates with an input voltage range of -17.5 Vdc to -26 Vdc, ensuring reliable performance in compatible Bently Nevada monitoring systems.

Q2: What is the maximum current consumption of the 143416-02 proximity sensor?

A: The 143416-02 sensor has a maximum current consumption of 12 mA, helping maintain efficient power usage during operation.

Q3: What is the output impedance of the 330180-X1-05 sensor?

A: The 330180-X1-05 sensor provides an output impedance of 50 Ω, which supports stable signal transmission and system compatibility.

Q4: What is the supply sensitivity of this 330180-X1-05 proximity sensor?

A: The 330180-X1-05 supply sensitivity is less than 2 mV, minimizing the effect of power supply fluctuations on measurement accuracy.

Product Applications

Oil & Gas: Used for monitoring large process gas compressors, centrifugal air compressors, and water injection pumps.

Power Generation: Used for monitoring steam turbines, gas turbines, and hydroelectric generator sets.

Petrochemicals: Widely used in high-pressure medium pumps, fans, and ethylene/ammonia synthesis units.
