The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cable1, and

One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

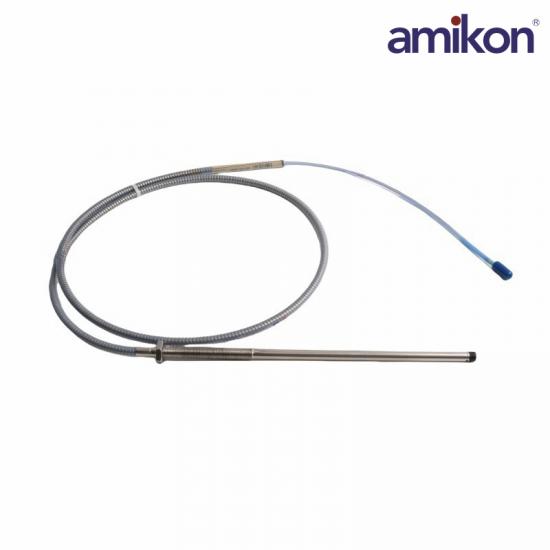

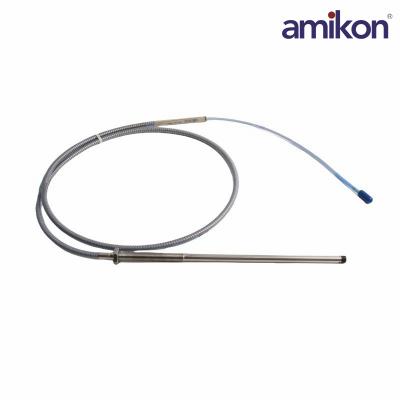

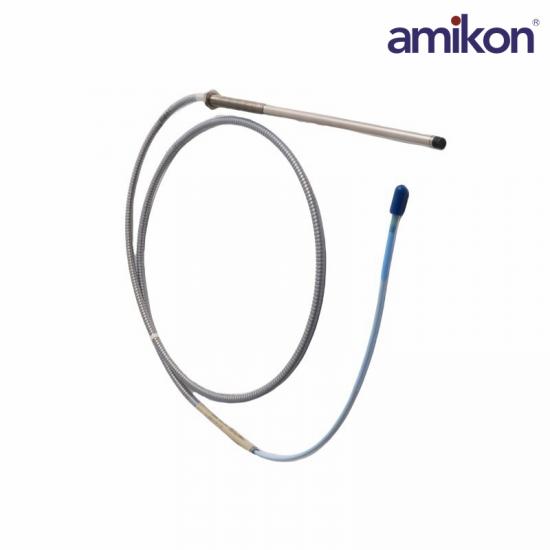

Q1: What is the Bently Nevada 330194-10-20-05-00 ETR Reverse Mount Probe?

A1: It is a 3300 XL 8 mm extended temperature range (ETR) reverse mount proximity probe designed for non-contact shaft vibration and displacement monitoring in rotating machinery.

Q2: What probe configuration is used in the 330194-10-20-05-00 model?

A2: The probe uses the 330194 configuration with an M10 × 1 threaded body and armored cable design.

Q3: What does the 330194-10-20-05-00 unthreaded length option “10” indicate?

A3: The “10” option specifies an unthreaded length of 100 mm.

Q4: What is the 330194-10-20-05-00 overall case length of this probe?

A4: The 330194-10-20-05-00 overall case length option “20” corresponds to 200 mm.

Q5: What is the 330194-10-20-05-00 total probe length?

A5: The 330194-10-20-05-00 total length option “05” indicates a probe length of 0.5 meter (1.6 feet).

Product Applications

Power Generation and Energy: Status monitoring of steam turbines, gas turbines, and generator sets.

Oil and Gas: Centrifugal compressors, axial compressors, pumps, and fans.

Petrochemicals: Key rotating equipment (such as drive units and pumps) in the oil refining process.

Other Heavy Industries: Monitoring of large fans, motors, pulp and paper machinery, and rotating equipment in steel plants.
